Electric Unit
All remaining units have now been re-allocated to Berlin Friedrichsfelde
Previously the class was assigned to S41 and S42 Ringbahn services, however these have been taken over by 483/484 units
Currently the class is exclusively used on S3 services: Erkner <> Spandau
| Builder | AEG, Siemens, Waggon Union |
| Max Speed | 100 km/h |
| System | 750 V DC Third Rail |
| Introduced | 1986-1987, 1990-1994 |
| Weight | 60 t |
| Length | 36.80 m |
| Width | 3.12 m |
| Height | 3.60 m |
| Wheel Arrangement | Bo-Bo+Bo-Bo |
| Power | 720 kW |
| Driving Wheel Dia | 900 mm |

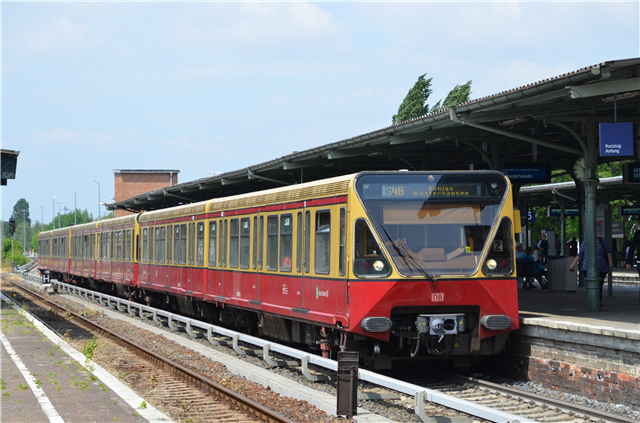

Photo: John J Cordrey
| Number | Status | Formation | Livery | Depot | Pool | Location | Owner | In Service | Withdrawn | Scrapped | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 480 005‑8 | A | 480 005‑8, 480 505‑7 | DRRB | BFF | SBB | D-DB | 24/10/1990 | ||||
| 480 006‑6 | A | 480 006‑6, 480 506‑5 | DRRB | BFF | SBB | D-DB | 06/11/1990 | ||||
| 480 007‑4 | A | 480 007‑4, 480 507‑3 | DRRB | BFF | SBB | D-DB | 16/11/1990 | ||||
| 480 008‑2 | A | 480 008‑2, 480 508‑1 | DRRB | BFF | SBB | D-DB | 17/12/1990 | ||||
| 480 009‑0 | A | 480 009‑0, 480 509‑9 | DRRB | BFF | SBB | D-DB | 22/12/1990 | ||||
| 480 010‑8 | X | 480 010‑8, 480 510‑7 | DRRB | SBB | Königs Wusterhausen | D-DB | 22/12/1990 | 13/03/2006 | 11/08/2008 | ||
| 480 011‑6 | A | 480 011‑6, 480 511‑5 | DRRB | BFF | SBB | D-DB | 15/01/1991 | ||||
| 480 012‑4 | X | 480 012‑4, 480 512‑3 | DRRB | SBB | Königs Wusterhausen | D-DB | 30/01/1991 | 31/05/2006 | 12/08/2008 | ||
| 480 013‑2 | A | 480 013‑2, 480 513‑1 | DRRB | BFF | SBB | D-DB | 05/02/1991 | ||||
| 480 014‑0 | A | 480 014‑0, 480 514‑9 | DRRB | BFF | SBB | D-DB | 27/03/1991 | ||||
| 480 015‑7 | A | 480 015‑7, 480 515‑6 | DRRB | BFF | SBB | D-DB | 20/02/1991 | ||||
| 480 016‑5 | A | 480 016‑5, 480 516‑4 | DRRB | BFF | SBB | D-DB | 19/03/1991 | ||||
| 480 017‑3 | A | 480 017‑3, 480 517‑2 | DRRB | BFF | SBB | D-DB | 19/03/1991 | ||||
| 480 018‑1 | A | 480 018‑1, 480 518‑0 | DRRB | BFF | SBB | D-DB | 27/03/1991 | ||||
| 480 019‑9 | A | 480 019‑9, 480 519‑8 | DRRB | BFF | SBB | D-DB | 26/04/1991 | ||||
| 480 020‑7 | X | 480 020‑7, 480 520‑6 | DRRB | SBB | Königs Wusterhausen | D-DB | 06/05/1991 | 13/03/2006 | 18/08/2008 | ||
| 480 021‑5 | A | 480 021‑5, 480 521‑4 | DRRB | BFF | SBB | D-DB | 15/05/1991 | ||||
| 480 022‑3 | A | 480 022‑3, 480 522‑2 | DRRB | BFF | SBB | D-DB | 28/05/1991 | ||||
| 480 023‑1 | A | 480 023‑1, 480 523‑0 | DRRB | BFF | SBB | D-DB | 07/06/1991 | ||||
| 480 026‑4 | A | 480 026‑4, 480 526‑3 | DRRB | BFF | SBB | D-DB | 17/07/1991 | ||||
| 480 027‑2 | A | 480 027‑2, 480 527‑1 | DRRB | BFF | SBB | D-DB | 24/07/1991 | ||||
| 480 028‑0 | A | 480 028‑0, 480 528‑9 | DRRB | BFF | SBB | D-DB | 08/08/1991 | ||||
| 480 029‑8 | A | 480 029‑8, 480 529‑7 | DRRB | BFF | SBB | D-DB | 20/08/1991 | ||||
| 480 030‑6 | A | 480 030‑6, 480 530‑5 | DRRB | BFF | SBB | D-DB | 29/08/1991 | ||||
| 480 031‑4 | X | 480 031‑4, 480 531‑3 | DRRB | SBB | Königs Wusterhausen | D-DB | 10/09/1991 | 05/05/2007 | 20/08/2008 | ||
| 480 032‑2 | A | 480 032‑2, 480 532‑1 | DRRB | BFF | SBB | D-DB | 24/09/1991 | ||||
| 480 033‑0 | A | 480 033‑0, 480 533‑9 | DRRB | BFF | SBB | D-DB | 10/10/1991 | ||||
| 480 034‑8 | A | 480 034‑8, 480 534‑7 | DRRB | BFF | SBB | D-DB | 28/10/1991 | ||||
| 480 035‑5 | A | 480 035‑5, 480 535‑4 | DRRB | BFF | SBB | D-DB | 07/11/1991 | ||||
| 480 036‑3 | A | 480 036‑3, 480 536‑2 | DRRB | BFF | SBB | D-DB | 28/11/1991 | ||||
| 480 037‑1 | A | 480 037‑1, 480 537‑0 | DRRB | BFF | SBB | D-DB | 18/12/1991 | ||||
| 480 038‑9 | A | 480 038‑9, 480 538‑8 | DRRB | BFF | SBB | D-DB | 28/01/1992 | ||||
| 480 039‑7 | X | 480 039‑7, 480 539‑6 | DRRB | SBB | Schöneweide | D-DB | 13/02/1992 | 10/08/2007 | 04/06/2021 | ||
| 480 040‑5 | A | 480 040‑5, 480 540‑4 | DRRB | BFF | SBB | D-DB | 06/03/1992 | ||||
| 480 041‑3 | A | 480 041‑3, 480 541‑2 | DRRB | BFF | SBB | D-DB | 01/04/1992 | ||||
| 480 042‑1 | A | 480 042‑1, 480 542‑0 | DRRB | BFF | SBB | D-DB | 23/04/1992 | ||||
| 480 043‑9 | X | 480 043‑9, 480 543‑8 | DRRB | SBB | D-DB | 21/05/1992 | 10/06/2007 | 21/08/2008 | |||
| 480 044‑7 | A | 480 044‑7, 480 544‑6 | DRRB | BFF | SBB | D-DB | 27/05/1992 | ||||
| 480 045‑4 | A | 480 045‑4, 480 545‑3 | DRRB | BFF | SBB | D-DB | 30/07/1992 | ||||
| 480 046‑2 | A | 480 046‑2, 480 546‑1 | DRRB | BFF | SBB | D-DB | 07/10/1993 | ||||
| 480 047‑0 | A | 480 047‑0, 480 547‑9 | DRRB | BFF | SBB | D-DB | 16/12/1993 | ||||
| 480 048‑8 | A | 480 048‑8, 480 548‑7 | DRRB | BFF | SBB | D-DB | 06/12/1993 | ||||
| 480 049‑6 | A | 480 049‑6, 480 549‑5 | DRRB | BFF | SBB | D-DB | 10/12/1993 | ||||
| 480 050‑4 | X | 480 050‑4, 480 550‑3 | DRRB | SBB | D-DB | 07/10/1993 | 10/08/2004 | 18/12/2004 | |||
| 480 051‑2 | A | 480 051‑2, 480 551‑1 | DRRB | BFF | SBB | D-DB | 24/11/1993 | ||||
| 480 052‑0 | A | 480 052‑0, 480 552‑9 | DRRB | BFF | SBB | D-DB | 04/11/1993 | ||||
| 480 054‑6 | A | 480 054‑6, 480 554‑5 | DRRB | BFF | SBB | D-DB | 10/12/1993 | ||||
| 480 055‑3 | A | 480 055‑3, 480 555‑2 | DRRB | BFF | SBB | D-DB | 27/10/1993 | ||||
| 480 056‑1 | X | 480 056‑1, 480 556‑0 | DRRB | BFF | SBB | D-DB | 10/12/1993 | ||||
| 480 057‑9 | A | 480 057‑9, 480 557‑8 | DRRB | BFF | SBB | D-DB | 04/11/1993 | ||||
| 480 058‑7 | A | 480 058‑7, 480 558‑6 | DRRB | BFF | SBB | D-DB | 13/01/1994 | ||||
| 480 059‑5 | A | 480 059‑5, 480 559‑4 | DRRB | BFF | SBB | D-DB | 15/12/1993 | ||||
| 480 060‑3 | A | 480 060‑3, 480 560‑2 | DRRB | BFF | SBB | D-DB | 24/11/1993 | ||||
| 480 061‑1 | A | 480 061‑1, 480 561‑0 | DRRB | BFF | SBB | D-DB | 16/12/1993 | ||||
| 480 062‑9 | A | 480 062‑9, 480 562‑8 | DRRB | BFF | SBB | D-DB | 10/12/1993 | ||||
| 480 063‑7 | A | 480 063‑7, 480 563‑6 | DRRB | BFF | SBB | D-DB | 22/12/1993 | ||||
| 480 064‑5 | A | 480 064‑5, 480 564‑4 | DRRB | BFF | SBB | D-DB | 15/12/1993 | ||||
| 480 065‑2 | A | 480 065‑2, 480 565‑1 | DRRB | BFF | SBB | D-DB | 13/01/1994 | ||||
| 480 066‑0 | A | 480 066‑0, 480 566‑9 | DRRB | BFF | SBB | D-DB | 21/02/1994 | ||||
| 480 067‑8 | A | 480 067‑8, 480 567‑7 | DRRB | BFF | SBB | D-DB | 13/01/1994 | ||||
| 480 068‑6 | A | 480 068‑6, 480 568‑5 | DRRB | BFF | SBB | D-DB | 09/02/1994 | ||||
| 480 069‑4 | A | 480 069‑4, 480 569‑3 | DRRB | BFF | SBB | D-DB | 21/02/1994 | ||||
| 480 070‑2 | X | 480 070‑2, 480 570‑1 | DRRB | SBB | D-DB | 09/02/1994 | 18/01/2008 | 24/04/2008 | |||
| 480 071‑0 | A | 480 071‑0, 480 571‑9 | DRRB | BFF | SBB | D-DB | 07/03/1994 | ||||
| 480 072‑8 | A | 480 072‑8, 480 572‑7 | DRRB | BFF | SBB | D-DB | 21/02/1994 | ||||
| 480 073‑6 | A | 480 073‑6, 480 573‑5 | DRRB | BFF | SBB | D-DB | 14/03/1994 | ||||
| 480 074‑4 | A | 480 074‑4, 480 574‑3 | DRRB | BFF | SBB | D-DB | 14/03/1994 | ||||
| 480 075‑1 | A | 480 075‑1, 480 575‑0 | DRRB | BFF | SBB | D-DB | 28/03/1994 | ||||
| 480 076‑9 | A | 480 076‑9, 480 576‑8 | DRRB | BFF | SBB | D-DB | 28/03/1994 | ||||
| 480 077‑7 | A | 480 077‑7, 480 577‑6 | DRRB | BFF | SBB | D-DB | 14/04/1994 | ||||
| 480 078‑5 | A | 480 078‑5, 480 578‑4 | DRRB | BFF | SBB | D-DB | 29/04/1994 | ||||
| 480 079‑3 | A | 480 079‑3, 480 579‑2 | DRRB | BFF | SBB | D-DB | 06/05/1994 | ||||
| 480 080‑1 | A | 480 080‑1, 480 580‑0 | DRRB | BFF | SBB | D-DB | 20/05/1994 | ||||
| 480 081‑9 | A | 480 081‑9, 480 581‑8 | DRRB | BFF | SBB | D-DB | 03/06/1994 | ||||
| 480 082‑7 | A | 480 082‑7, 480 582‑6 | DRRB | BFF | SBB | D-DB | 16/06/1994 | ||||
| 480 083‑5 | A | 480 083‑5, 480 583‑4 | DRRB | BFF | SBB | D-DB | 01/07/1994 | ||||
| 480 084‑3 | A | 480 084‑3, 480 584‑2 | DRRB | BFF | SBB | D-DB | 22/07/1994 | ||||
| 480 085‑0 | A | 480 085‑0, 480 585‑9 | DRRB | BFF | SBB | D-DB | 26/08/1994 |
