    DE: Diesel Locomotive: 233

    Diesel Loco

    Length 20.82 m
    Introduced 1973-1982
    Wheel Arrangement Co-Co
    Builder Voroshilovgrad Locomotive Works
    Weight 123 t
    TE 295 kN
    Engine Kolomna 12D49M
    Transmission Electric
    Max Speed 120 km/h
    Driving Wheel Dia 1050 mm
    Width 2.95 m
    Height 4.59 m
    Power 2206 kW

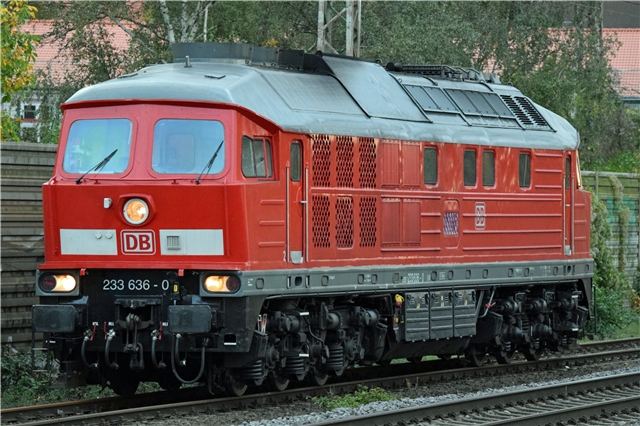

    Photo: John J Cordrey

    Submit Photo

    Your photo will be submitted to the editors for approval.

    • You must ensure you have permission of the copyright owner to submit this photo for SpotLog
    • Please do not submit photo's taken from Wikipedia or another website unless you have explicit permisson to do so
    • Putting a date in the photo caption is often helpful
    • Upload must be in JPEG format
    Number Alt number Name Status Pool Depot Note
    233 040-5 BR233 040-5, 232 040-6, 132 040-7 A Ecco Rail [PL-ECCOR]
    233 043-9 232 043-0, 132 043-1 E
    233 076-9 07 176-7, 232 076-0, 132 076-1 A
    233 112-2 232 112-3, 132 112-4 A C NN2
    233 118-9 07 118-9, 232 118-0, 132 118-1 A ~ ~
    233 127-0 232 127-1, 132 127-2 A C NN2
    233 151-0 07-151, 07 151-0, 232 151-1, 132 151-2 A ~ ~
    233 176-7 232 176-8, 132 176-9 A C NN2
    233 179-1 232 179-2, 132 179-3 X DA
    233 204-7 232 204-8, 132 204-9 X LH1
    233 206-2 07 206-2, 232 206-3, 132 206-4 A
    233 217-9 232 217-0, 132 217-1 A
    233 219-5 232 219-6, 132 219-7 A C NN2
    233 232-8 232 232-9, 132 232-0 A C LH1
    233 233-6 232 233-7, 132 233-8 A C LH1
    233 249-2 07 249-9, 232 249-3, 132 249-4 A
    233 264-1 07 264-1, 232 264-2, 132 264-3 A ~ ~
    233 281-5 232 281-6, 132 281-7 E
    233 285-6 232 285-7, 132 285-8 A C BSE
    233 288-0 232 288-1, 132 288-2 A C LH1
    233 289-8 648 001, 232 289-9, 132 289-0 A
    233 295-5 232 295-6, 132 295-7 ~ ~ ~
    233 306-0 07 306-0, 232 306-1, 132 306-2 A
    233 314-4 232 314-5, 132 314-6 A C NN2
    233 321-9 232 321-0, 132 321-1 A C BSE
    233 322-7 232 322-8, 132 322-9 S C FMB
    233 326-8 BR233 326-8, 232 326-9, 132 326-0 E
    233 367-2 07 367-2, 232 367-3, 132 367-4 A
    233 373-0 232 373-1, 132 373-2 A
    233 441-5 648 004, 232 441-6, 132 441-7 E
    233 450-6 07-450, 07 450-6, 232 450-7, 132 450-8 ~ ~ ~
    233 451-4 232 451-5, 132 451-6 S
    233 452-2 232 452-3, 132 452-4 A C NN2
    233 458-9 232 458-0, 132 458-1 E
    233 462-1 232 462-2, 132 462-3 X NN2
    233 478-7 232 478-8, 132 478-9 A C NN2
    233 486-0 232 486-1, 132 486-2 E
    233 493-6 Lok 13, 232 493-7, 132 493-8 Tiger A
    233 510-7 232 510-8, 132 510-9 W C NN2
    233 511-5 232 511-6, 132 511-7 A C LH1
    233 515-6 232 515-7, 132 515-8 W C BSE
    233 521-4 232 521-5, 132 521-6 A C NN2
    233 525-5 232 525-6, 132 525-7 A C NN2
    233 536-2 648 002, 232 536-3, 132 536-4 E
    233 547-9 BR233 547-9, 232 547-0, 132 547-1 E
    233 562-8 BR233 562-8, 232 562-9, 132 562-0 E
    233 572-7 232 572-8, 132 572-9 W C LH1
    233 586-7 232 586-8, 132 586-9 E ~ ~
    233 588-3 BR233-588-3, 232 588-4, 132 588-5 H Ecco Rail [PL-ECCOR]
    233 594-1 232 594-2, 132 594-3 X DA
    233 596-6 232 596-7, 132 596-8 H Ecco Rail [PL-ECCOR]
    233 616-2 07-616, 232 616-3, 132 616-4 A ~ ~
    233 622-0 07 622-0, 232 622-1, 132 622-2 ~ ~ ~
    233 625-3 BR233-625-3, 232 625-4, 132 625-5 A
    233 636-0 232 636-1, 132 636-2 A C LH1
    233 643-6 BR233 643-6, 232 643-7, 132 643-8 A
    233 652-7 232 652-8, 132 652-9 X C DA
    233 662-6 232 662-7, 132 662-8 W C LH1
    233 683-2 232 683-3, 132 683-4 W C DA
    233 689-9 BR233 970, BR233 689-9, 232 689-0, 132 689-1 H Bartex [PL-BRX]
    233 696-4 232 696-5, 132 696-6 S Spare parts donor
    233 698-0 232 698-1, 132 698-2 A C NN2
    233 702-0 232 702-1, 132 702-2 X LH1
    233 705-3 07-725, 232 705-4, 132 705-5 ~ ~ ~
    233 709-5 232 709-6, 132 709-7 W C HS
