    UKP: LMS: 8F

    Steam loco

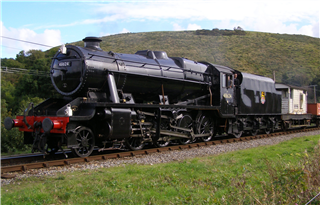

    Stanier 8F Class 2-8-0

    The London Midland and Scottish Railway's class 8F is a class of steam locomotive designed for hauling heavy freight. 852 were built between 1935 and 1946 (not all to LMS order), as a freight version of William Stanier's successful Black Five, and the class saw extensive service overseas during and after the Second World War.

    On the outbreak of the Second World War, the design was chosen to become the country's standard freight design, reprising the role the GCR Class 8K had in the First World War. The War Department had 208 8Fs built by Beyer Peacock and North British Locomotive Company and requisitioned 51 more. Stanier 8F production for the WD continued until 1943 when the cheaper WD Austerity 2-8-0 was introduced. Production for British domestic use continued until 1946.

    60 were built by the LNER to Railway Executive Committee order between 1943 and 1945. These were considered LMS stock and numbered as such (LMS Nos 8500-59). These were loaned by the REC to the LNER. The LNER subsequently chose to build some of the design for themselves. These were classified by the LNER as class O6.

    None of the former LNER Class O6 engines were preserved. However, fourteen 8Fs are known to have survived with six LMS/BR locomotives being preserved in the UK; a seventh was used a spares donor. None of the pre-war 8Fs survived into preservation. Three members of the class have over the years been repatriated to the UK from Turkey, with one later sent to a museum in Israel. In addition, two Turkish Railway (TCDD) locomotives have been preserved in Turkey, and some more remain there in a derelict state. One locomotive has even survived in Iraq. Two more are also visible underwater on the wreck of the SS Thistlegorm. In addition, 1 LNER-built example (48518) survived, but was used as a parts donor for 1014 County of Glamorgan and 45551 The Unknown Warrior. It was consequently dismantled, and the frames were scrapped at Bury in mid-2013.

    Wheel Arrangement 2-8-0
    Builder LMS & Various subcontractors for WD
    Introduced 1934
    Weight 73.26t
    TE 32,440 lbf
    Driving Wheel Dia 4ft 8 1/2in
    Boiler Pressure 225 psi
    Cylinder Dimensions 18 1/2 in × 28 in
    Num Cylinders 2, outside
    Valve Gear Walschaerts
    Length 63ft 0 1/2in
    Withdrawn 1968
    Wheelbase 52ft 7 3/4in
    Submit Photo

    Your photo will be submitted to the editors for approval.

    • You must ensure you have permission of the copyright owner to submit this photo for SpotLog
    • Please do not submit photo's taken from Wikipedia or another website unless you have explicit permisson to do so
    • Putting a date in the photo caption is often helpful
    • Upload must be in JPEG format
    Number Alt number Name Status Pool Depot Note
    45153 357 E Stored pending restoration
    WD 522 45161,522 E
    8279 WD 353,353,45165 E
    8266 WD 340,340,45168 E Plinthed
    554 WD554,45170 R BO
    48151 98851,8151 Gauge O Guild A AWCS CS
    48173 8173 R PR
    48305 8305 A PR
    48431 8431 D PR
    48518 8518 X Spares donor
    48624 8624 O PR 48624 Locomotive Company Limited
    48773 98873,8233,307,70307,500 D MBSL PR Stanier 8F Locomotive Society
    WD 547 1429,547,8188 E
    70414 8267,341,WD 341,45166 E
    8274 WD 348,348,45160 S PR Churchill 8F Company
