    UKP: BR Electric: 84

    Electric Loco

    Class 84 AL4

    The British Rail Class 84 was a 25 kV AC electric locomotive that operated on the West Coast Main Line of the London Midland Region. As part of the modernisation of the West Coast Main Line, which included electrification, 100 locomotives of five types were acquired from different manufacturers.

    Ten Class AL4 locomotives numbered E3036 - E3045 were built in 1960 by the North British Locomotive Company in Springburn, Glasgow, to a design by GEC. Sole surviving example now in national collection.

    Diagram L91
    System 25kV 50Hz AC
    Length 16.32m
    Width 2.468m
    Height 3.766m
    Introduced 1960
    Withdrawn 1980
    Wheel Arrangement Bo-Bo
    Builder North British Locomotive Company
    Power 660kW
    Weight 77.83t
    TE 220kN
    Max Speed 100mph
    Driving Wheel Dia 1.219m
    Wheelbase 12.04m

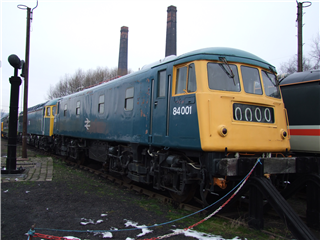

    Photo: Phil Hayward

    Submit Photo

    Your photo will be submitted to the editors for approval.

    • You must ensure you have permission of the copyright owner to submit this photo for SpotLog
    • Please do not submit photo's taken from Wikipedia or another website unless you have explicit permisson to do so
    • Putting a date in the photo caption is often helpful
    • Upload must be in JPEG format
    Number Alt number Name Status Pool Depot Note
    84001 89502,E3036 P ACXX BO
