    UKP: BR Multiple Units: 507

    Electric Unit

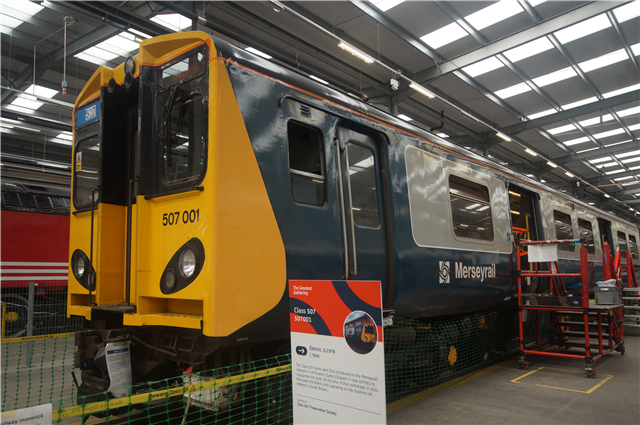

    Class 507 Merseyside EMU

    The British Rail Class 507 was built by British Rail Engineering Limited at Holgate Road carriage works in two batches from 1978 to 1980. They are a variant of British Rail's standard 1972 design for suburban EMUs derived from PEP stock, which eventually encompassed 755 vehicles over five classes (313, 314, 315, 507 and 508). They have worked on the Merseyrail network from new.

    In March 2024, the Class 507 Preservation Society reached an agreement to preserve 507001 after the chairman of the society bought the unit for £1 from Angel Trains.

    Diagram 30906, 30907, 30908
    Formation BDMSO-TSO-DMSO
    System 600-750V DC Third Rail
    Length 57.52m total
    Width 2.82m
    Height 3.582m
    Introduced 1978
    Wheel Arrangement Bo′Bo′+2′2′+Bo′Bo′
    Builder BREL Holgate
    Power 656 kW
    Weight 98.28t
    Max Speed 75 mph
    Wheelbase Over bogie centres: 14.17 m
    Brakes Electro-pneumatic (disc) and rheostatic
    Heating Electric heating (ducted warm air)
    Submit Photo

    Your photo will be submitted to the editors for approval.

    • You must ensure you have permission of the copyright owner to submit this photo for SpotLog
    • Please do not submit photo's taken from Wikipedia or another website unless you have explicit permisson to do so
    • Putting a date in the photo caption is often helpful
    • Upload must be in JPEG format
    Number Alt number Name Status Pool Depot Note
    507001 P HEHQ BD
