    UK: Multi-Mode Loco: 93

    Electric Loco

    Tri-Mode Electric Locos

    The British Rail Class 93 is a tri-mode locomotive built by Stadler Rail in Valencia. It is an evolution of the Class 88 bi-mode locomotive, which was built by Stadler for Direct Rail Services. Three different power sources are used to power the locomotive – 4,000kW 25 kV AC overhead electric power, or a 900kW diesel engine supplemented by a 400kW battery – allowing the locomotive to be used on both electrified and non-electrified lines.

    System 25kV
    Introduced 2023
    Wheel Arrangement Bo-Bo
    Builder Stadler
    Weight 86 tonnes
    TE 290kN
    Engine Caterpillar C32
    Max Speed 110 mph
    Length 67.6ft
    Power 4600 kW (electric) 900 kW (diesel) 400 kW (battery boost)
    Battery Capacity 80kWh
    Battery Range 10 minutes boost
    Brakes Regenerative and Friction

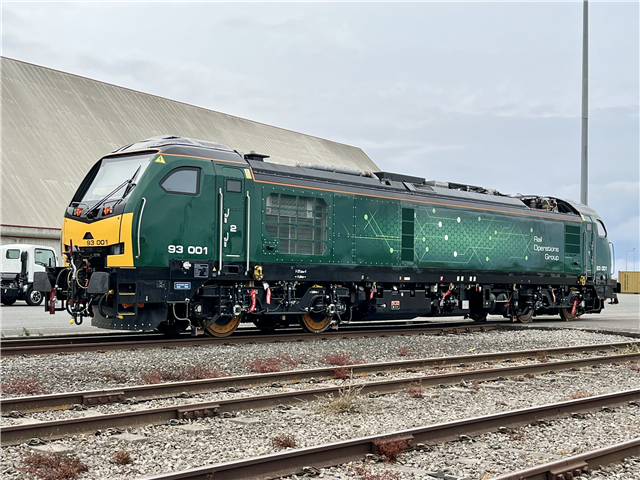

    Photo: Phil Hayward

    Submit Photo

    Your photo will be submitted to the editors for approval.

    • You must ensure you have permission of the copyright owner to submit this photo for SpotLog
    • Please do not submit photo's taken from Wikipedia or another website unless you have explicit permisson to do so
    • Putting a date in the photo caption is often helpful
    • Upload must be in JPEG format
    Number Alt number Name Status Pool Depot Note
    93001 ~ GROG WS
    93002 ~ GROG WS
    93003 ~ GROG WS
    93004 ~ GROG WS
    93005 S GROG WS
    93006 ~ GROG WS
    93007 D GROG LM
    93008 S GROG WS
    93009 ~ GROG WS
    93010 GROG WS
