    UK: Electric Loco: 86

    Electric Loco

    Bo-Bo (AC)

    The British Rail Class 86 is the standard electric locomotive built during the 1960s. One hundred of these locomotives were built from 1965 to 1966, either by English Electric at Vulcan Foundry, Newton-le-Willows or British Rail (BR) at their Doncaster works. The class was built to haul trains on the then newly electrified West Coast Main Line (WCML) from London Euston to Birmingham, Crewe, Liverpool, Manchester and later Glasgow and Preston.

    Introduction of the class enabled the replacement of many steam locomotives, which were finally withdrawn by British Rail in 1968. Under the earlier BR classification system, the type was given the designation AL6 (meaning the sixth design of AC locomotive) and locomotives were numbered E3101-E3200. In 1968, this was changed to Class 86 when British Rail introduced the TOPS classification system.

    The class was built to haul passenger and freight trains alike on the West Coast Main Line, however some members of the class also saw use on the Great Eastern Main Line (GEML) between London Liverpool Street and Norwich, after that line was also electrified in the mid-1980s. The type has had a generally long and successful career, with some members of the class seeing main line service lives in the UK of up to 55 years. Most regular passenger duties of the class came to end on both the WCML and the GEML in the early-to-mid-2000s, after a career of up to 40 years. Some members of the class remained in use for charter work and for freight work with Freightliner until 2021. A number of the class were exported to Bulgaria and Hungary and remain in use. As of 2022 three Class 86s remain preserved in usable condition in the UK, all in private ownership.

    System 25kV 50Hz AC
    Length 16.66m
    Width 2.648m
    Height 3.766m
    Introduced 1965
    Withdrawn 1995
    Wheel Arrangement Bo-Bo
    Builder BREL Doncaster / EE Vulcan Foundry
    Power 5000 HP
    Weight 82t
    TE 267kN
    Max Speed 110 mph
    Driving Wheel Dia 1.143m
    Wheelbase 13.26m
    Brakes Westinghouse dual vacuum & air
    Heating ETH
    Number Altnumber Name Status EVN Note Livery Depot Pool Location Owner In Service Withdrawn Scrapped

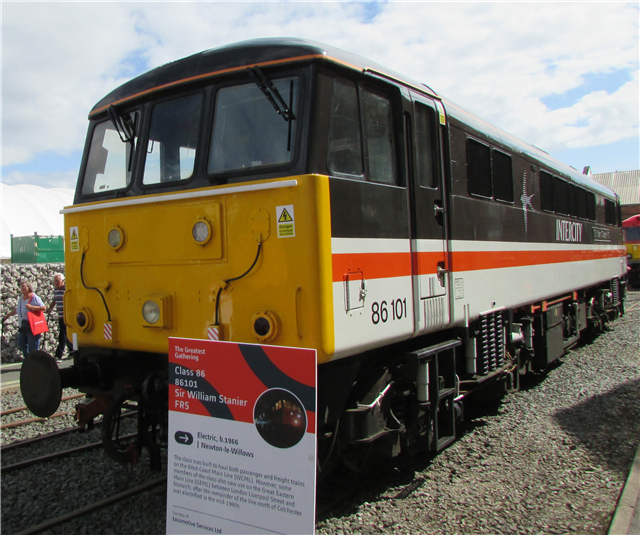

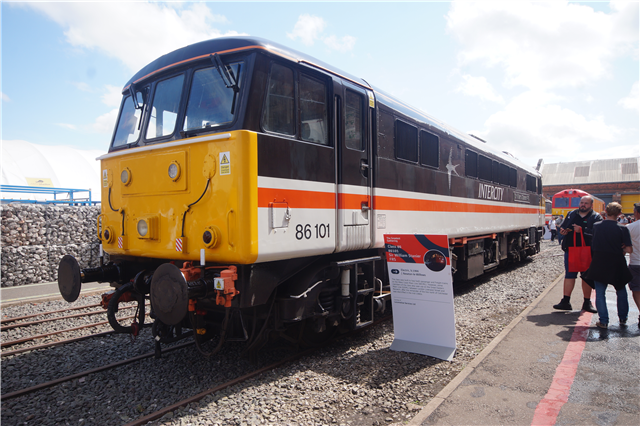

    86101 86201   E3191   Sir William A Stanier F R S** P ICS CL LSLO LSL 11/11/1965 UK70/86 UKP/86
    86102 86202   E3150   Robert A Riddles** X JT Lanscapes at MoD Caerwent 10/04/1966 04/2002 04/2005 UK70/86
    86103 86203   E3143   André Chapelon** X Easco at Immingham Railfreight Terminal 15/03/1966 09/1995 11/2002 UK70/86
    86204 E3173   City of Carlisle** X Easco at Immingham Railfreight Terminal 21/08/1965 08/1998 06/2003 UK70/86
    86206 E3184   City of Stoke on Trent** X Sims Metals, Cardiff 01/10/1965 10/2002 02/2004 UK70/86
    86207 E3179   City of Lichfield** X Ron Hull Jr., Rotherham 27/09/1965 07/2002 04/2006 UK70/86
    86208 E3141   City of Chester** X Sandbach Car & Commercial Dismantlers at Crewe Electric TMD 16/02/1966 03/2000 07/2003 UK70/86
    86209 E3125   City of Coventry** X Boreham Scrap Co., Boreham 25/11/1965 10/2004 05/2005 UK70/86
    86212 E3151   Preston Guild 1328-1992** X European Metal Recycling, Kingsbury 18/04/1966 30/09/2008 09/2008 UK70/86
    86213 E3193   Lancashire Witch E 91 52 0087 703-2 Exported to Bulgaria. BUL BG-BMDM 02/12/1965 09/1998 UK70/86
    86214 E3106   Sans Pareil** X Ron Hull Jr., Rotherham 19/06/1965 10/2002 03/2006 UK70/86
    86215 450 005‑8   E3165   The Round Tabler** E 91 55 0450 005-8 Exported to Hungary. FLR H-FLOYD 21/08/1965 30/09/2008 UK70/86
    86216 E3166   Meteor** X Easco at Immingham Railfreight Terminal 27/09/1965 04/1998 13/03/2002 UK70/86
    86217 450 006‑6   86504   E3177   City University** E 91 55 0450 006-6 Exported to Hungary. FLR H-FLOYD 21/08/1965 30/09/2008 UK70/86
    86218 450 004‑1   E3175   NHS 50** E 91 55 0450 004-1 Exported to Hungary. FLR H-FLOYD 27/09/1965 30/09/2008 UK70/86
    86219 E3196   Phoenix** X Easco at Immingham Railfreight Terminal 08/12/1965 05/1996 05/2002 UK70/86
    86220 E3156   The Round Tabler** X Easco at Immingham Railfreight Terminal 18/06/1966 05/2002 28/11/2003 UK70/86
    86221 E3132   BBC Look East** X Easco at Immingham Railfreight Terminal 15/12/1965 05/2003 13/11/2003 UK70/86
    86222 86502   E3131   Clothes Show Live**, Fury** X Easco at Immingham Railfreight Terminal 28/12/1965 10/2002 11/12/2003 UK70/86
    86223 E3158   Norwich Union** X European Metal Recycling, Kingsbury 01/07/1966 30/09/2008 05/2011 UK70/86
    86224 E3134   Caledoniian** X Ron Hull Jr., Rotherham 15/12/1965 07/2002 05/2006 UK70/86
    86225 E3164   Hardwicke** X Ron Hull Jr., Rotherham 21/08/1965 07/2002 04/2006 UK70/86
    86226 E3162   CHARLES RENNIE MACKINTOSH**, Royal Mail Midlands** X European Metal Recycling, Kingsbury 21/08/1965 30/09/2008 07/2011 UK70/86
    86227 E3117   Golden Jubilee**, Sir Henry Johnson** X Ron Hull Jr., Rotherham 27/09/1965 10/2004 07/2005 UK70/86
    86228 450 007‑4   E3167   Vulcan Heritage** E 91 55 0450 007-4 Exported to Hungary. FLR H-FLOYD 21/08/1965 30/09/2008 UK70/86
    86229 E3119   Lions Clubs International** X Sandback Car & Commercial Dismantlers 25/09/1965 30/09/2008 20/02/2020 UK70/86
    86230 E3168   The Duke of Wellington** X European Metal Recycling, Kingsbury 19/06/1965 30/09/2008 07/2011 UK70/86
    86231 85005   E3126   Starlight Express** E 91 52 0085 005-4 Exported to Bulgaria. BUL BG-BMDM 03/11/1965 30/09/2008 UK70/86
    86232 450 003‑3   E3113   Norfolk & Norwich Festival** E 91 55 0450 003-3 Exported to Hungary. H-FLOYD 24/08/1965 07/2005 UK70/86
    86233 86506   E3172   ALSTOM Heritage** E Exported to Bulgaria for spares. Ruse, Bulgaria BG-BMDM 19/06/1965 2019 UK70/86
    86234 85006   E3155   Suffolk - Relax, Refresh, Return E 91 52 0085 006-2 Exported to Bulgaria. FLR BG-BMDM 27/05/1966 30/09/2008 UK70/86
    86235 85004   E3194   Crown Point** E 91 52 0085 004-7 Exported to Bulgaria. BUL BG-BMDM 03/12/1965 30/09/2008 UK70/86
    86236 E3133   Josiah Wedgwood MASTER POTTER 1730-1795** X Easco at Immingham Railfreight Terminal 13/12/1965 10/2002 12/2003 UK70/86
    86237 E3197   University of East Anglia**, Sir Charles Hallé** X Sims Metals, Cardiff 30/12/1965 04/2004 10/2004 UK70/86
    86238 E3116   European Community** X Boreham Scrap Co., Boreham 27/09/1965 10/2004 05/2005 UK70/86
    86240 E3127   Bishop Eric Treacy** X Ron Hull Jr., Rotherham 26/10/1965 10/2002 28/04/2008 UK70/86
    86241 86508   E3121   Glenfiddich** X Sandback Car & Commercial Dismantlers at Crewe Electric TMD 25/09/1965 01/2000 21/02/2003 UK70/86
    86242 0450 008‑2   E3138   Colchester Castle** E 91 55 0450 008-2 Exported to Hungary. FLR H-FLOYD 21/01/1966 30/09/2008 UK70/86
    86243 E3181   The Boys' Brigade X C. F. Booth, Rotherham 12/10/1965 11/2002 10/2004 UK70/86
    86244 E3178   The Royal British Legion** X Easco at Immingham Railfreight Terminal 21/08/1965 10/2002 09/11/2003 UK70/86
    86245 E3182   Caledonian**, Dudley Castle** X European Metal Recycling, Kingsbury 25/09/1965 10/2003 06/2010 UK70/86
    86246 86505   E3149   Royal Anglian Regiment** X C. F. Booth, Rotherham 02/04/1966 30/09/2008 02/2017 UK70/86
    86247 E3192   Abraham Darby** X Sandbach Car & Commercial Dismantlers at Crewe Basford Hall 02/12/1965 30/09/2008 12/2015 UK70/86
    86248 0450 001‑7   E3107   Sir Clwyd - County of Clwyd** E 91 55 0450 001-7 Exported to Hungary. FLR H-FLOYD 27/09/1965 10/2002 UK70/86
    86249 E3161   County of Merseyside** X JT Lanscapes at MoD Caerwent 27/09/1965 10/2003 10/2005 UK70/86
    86250 0450 002‑5   E3189   Sheppard 100** E 91 55 0450 002-5 Exported to Hungary. FLR H-FLOYD 04/11/1965 04/2004 UK70/86
    86251 E3183   The Birmingham Post** X VTI CB EPEX FLT 28/10/1965 30/09/2008 12/2022 UK70/86
    86252 E3101   Sheppard 100**, The Liverpool Daily Post** X Easco at Immingham Railfreight Terminal 21/08/1965 05/2002 08/2002 UK70/86
    86254 86047   E3142   William Webb Ellis** X C. F. Booth, Rotherham 18/02/1966 10/2002 08/2004 UK70/86
    86255 86042   E3154   Penrith Beacon** X Easco at Immingham Railfreight Terminal 21/05/1966 08/1998 09/2002 UK70/86
    86256 86040   E3135   Pebble Mill** X Ron Hull Jr., Rotherham 21/01/1966 10/2002 03/2006 UK70/86
    86257 86043   E3139   Snowdon** X Easco at Immingham Railfreight Terminal 26/01/1966 11/2002 11/2003 UK70/86
    86258 86501   86046   E3140   Talyllyn 50 Years of Railway Preservation 1951-2001**, Talyllyn The First Preserved Railway** X This is the first of 2 locomotives to carry no. 86501 (1988-1989). European Metal Recycling, Kingsbury 01/03/1966 07/2002 12/2009 UK70/86
    86259 86045   E3137   Peter Pan   Les Ross P BRB BU MBEL PPL 15/01/1966 10/2003 UK70/86 UKP/86
    86261 86041   E3118   THE RAIL CHARTER PARTNERSHIP**, Driver John Axon G.C.** X C. F. Booth, Rotherham 25/09/1965 11/2002 12/2004 UK70/86
    86401 86001   E3199   Mons Meg, Northampton Town** P CAS CS AWCA WCR 21/01/1966 UK70/86 UKP/86
    86416 86316   86016   E3109   Wigan Pier** X C. F. Booth, Rotherham 19/06/1965 02/2002 06/2005 UK70/86
    86417 86317   86017   E3146   The Kingsman** X C. F. Booth, Rotherham 02/04/1966 09/2001 11/2004 UK70/86
    86419 86319   86019   E3120   Post Haste 150 Years of Travelling Post Offices** X Sandbach Car & Commercial Dismantlers at Crewe Electric TMD 25/09/1965 03/1999 03/2003 UK70/86
    86424 0450 009‑2   86324   86024   E3111   E 91 55 0450 009-2 Exported to Hungary. NRL Budapest H-FLOYD 19/06/1965 UK70/86
    86425 86325   86025   E3186   Saint Mungo** X C. F. Booth, Rotherham 18/10/1965 02/2002 01/2005 UK70/86
    86426 86326   86026   E3195   Pride of the Nation** X C. F. Booth, Rotherham 17/12/1965 06/2004 11/2005 UK70/86
    86430 86030   E3105   Saint Edmund**, Scottish National Orchestra** X C. F. Booth, Rotherham 19/06/1965 06/2004 12/2005 UK70/86
    86602 86402   86002   E3170   X Sandbach Car & Commercial Dismantlers at Crewe LNWR 19/06/1965 03/2005 01/2010 UK70/86
    86603 86403   86003   E3115   X C. F. Booth, Rotherham 27/09/1965 09/1999 11/2005 UK70/86
    86604 86404   86004   E3103   E FLG CB DHLT FLT 21/08/1965 UK70/86
    86605 86405   86005   E3185   Intercontainer** E FLG CB DHLT FLT 01/10/1965 UK70/86
    86606 86406   86006   E3112   X Ron Hull Jr., Rotherham 24/08/1965 11/2003 06/2007 UK70/86
    86607 86407   86007   E3176   The Institution of Electrical Engineers** E FLG CB DHLT FLT 21/08/1965 UK70/86
    86608 86501   86408   86008   E3180   Crewe Basford Hall** E This is the second of 2 locomotives to carry no. 86501 (2000-2016). FLG CB DHLT FLT 27/09/1965 UK70/86
    86609 86409   86009   E3102   E FLG CB DHLT FLT 21/08/1965 UK70/86
    86610 86410   86010   E3104   E FLG CB DHLT FLT 27/09/1965 UK70/86
    86611 86411   86311   86011   E3171   Airey Neave** X Harry Needle Railroad Co. at Crewe Works 27/09/1965 11/2003 02/2005 UK70/86
    86612 86412   86312   86012   E3122   Elizabeth Garrett Anderson** E FLG CB DHLT FLT 27/09/1965 UK70/86
    86613 86413   86313   86013   E3128   County of Lancashire** E FLG CB DHLT FLT 23/11/1965 UK70/86
    86614 86414   86314   86014   E3145   Frank Hornby** E FLG CB DHLT FLT 22/03/1966 UK70/86
    86615 86415   86315   86015   E3123   Rotary International** X Ron Hull Jr., Rotherham 28/10/1965 04/2005 07/2007 UK70/86
    86618 86418   86318   86018   E3163   X C. F. Booth, Rotherham 21/08/1965 08/2001 03/2005 UK70/86
    86620 86420   86320   86020   E3114   Philip G Walton** X Ron Hull Jr., Rotherham 27/09/1965 09/2005 06/2007 UK70/86
    86621 86421   86321   86021   E3157   London School of Economics** X Sandbach Car & Commercial Dismantlers at Crewe LNWR 24/06/1966 04/2011 04/2013 UK70/86
    86622 86422   86322   86022   E3174   E FLP CB DHLT FLT 21/08/1965 UK70/86
    86623 86023   86323   86423   E3152   X Sandbach Car & Commercial Dismantlers at Crewe LNWR 07/05/1966 10/2003 01/2010 UK70/86
    86627 86427   86327   86027   E3110   The Industrial Society** E FLG CB DHLT FLT 19/06/1965 UK70/86
    86628 86428   86328   86028   E3159   Aldaniti** E FLG CB DHLT FLT 14/07/1966 UK70/86
    86632 86432   86032   E3148   Brookside** E FLG CB DHLT FLT 07/04/1966 UK70/86
    86633 86433   86033   E3198   Wulfruna** X Sandbach Car & Commercial Dismantlers at Crewe LNWR 18/01/1966 02/2004 26/03/2013 UK70/86
    86635 86435   86035   E3124   X Sandbach Car & Commercial Dismantlers at Crewe LNWR 26/10/1965 02/2004 26/03/2013 UK70/86
    86636 86436   86036   E3160   X C. F. Booth, Rotherham 14/10/1966 03/2000 01/2005 UK70/86
    86637 86437   86037   E3130   E FLP CB DHLT FLT 07/12/1965 UK70/86
    86638 86438   86038   E3108   E FLG CB DHLT FLT 19/06/1965 UK70/86
    86639 86439   86039   E3153   E FLG CB DHLT FLT 07/05/1966 UK70/86
    86701 85001   86205   86503   E3129   Orion E 91 52 0087 701-6 Exported to Bulgaria. BG-BMDM 24/11/1965 30/09/2008 UK70/86
    86702 85002   86260   86048   E3144   Cassiopeia E 91 52 0087 702-4 Exported to Bulgaria. BG-BMDM 18/03/1966 UK70/86
    86901 86253   86044   E3136   Chief Engineer** X Sandbach Car & Commercial Dismantlers at Crewe Basford Hall 22/12/1965 03/2011 06/2018 UK70/86
    86902 86210   E3191   Rail Vehicle Engineering, CIT 75th Anniversary**, City of Edinburgh** X C. F. Booth, Rotherham 11/11/1965 03/2011 11/2016 UK70/86
