    UK: Electric Loco: 87

    Electric Loco

    Class 87

    The British Rail Class 87 is a type of electric locomotive designed and built by British Rail Engineering Limited (BREL) between 1973 and 1975. A total of thirty-six locomotives were constructed, to work passenger and freight services over the West Coast Main Line (WCML).

    The type was developed in response to the need to add extra capacity to the electric traction fleet operated by British Rail (BR), in addition to the desire to introduce a higher performance electric locomotive than the existing Class 86, numerous aspects of which being incorporated into its design. The Class 87 fleet was operated as the flagships of British Rail's electric locomotive fleet until the late 1980s, at which point the Class 90, an improved derivative of the Class 87, started to come on stream.

    As a consequence of the privatisation of British Rail during the mid 1990s, all but one of the Class 87s were transferred to Virgin Trains. Under this operator, the type continued their passenger duties until the advent of the new Class 390 Pendolinos, after which they were gradually transferred to other operators or withdrawn between 2002 and 2007. For a time, the type was a staple of electrified freight operations, before it was displaced by the Class 90 in this capacity as well. By the end of the 2010s, there was only one Class 87 that remained in an operational condition in Britain, 87002, which had been initially preserved by the AC Locomotive Group and is presently owned by Locomotive Services Limited. It was previously in use with Serco Caledonian Sleeper and is intended for use on charter services. A large proportion of the fleet has been exported to Bulgaria, where they have entered regular use once again.

    Gauge 1435mm
    Builder BREL Crewe
    Max Speed 110mph
    System 25kV AC overhead
    Introduced 1973-75
    Length 17830mm
    Weight 84.6t
    Power 3730kW
    TE 258kN
    Driving Wheel Dia 1149mm
    Wheel Arrangement Bo-Bo
    Width 26480mm
    Height 37660mm
    Withdrawn 2007
    Wheelbase 13262mm
    Brakes Air
    Heating ETH

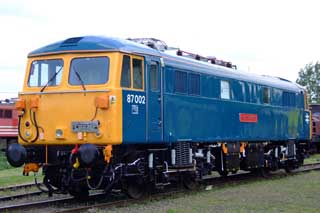

    Photo: John J Cordrey

    Number Altnumber Name Status Exported EVN Note Livery Depot Pool Location Base Owner In Service Withdrawn Scrapped
    87001 STEPHENSON / Royal Scot P BRB YM MBEL National Railway Museum NRM 01/06/1973 01/06/2005 UK70/87 UKP/87
    87002 Royal Sovereign ICS CL LSLO LSL 29/06/1973 UK70/87
    87003 87 003‑0   Patriot** E Exported 91 52 0087 003-7 Exported to Bulgaria. BG-BZK 11/07/1973 UK70/87
    87004 87 004‑8   Britannia** E Exported 91 52 0087 004-5 Exported to Bulgaria. BG-BZK 13/07/1973 01/06/2005 UK70/87
    87005 City of London** X JT Lanscapes at MoD Caerwent 14/08/1973 30/04/2005 10/2005 UK70/87
    87006 87 006‑3   George Reynolds** E Exported 91 52 0087 006-0 Exported to Bulgaria. BG-BZK 05/11/1973 UK70/87
    87007 87 007‑1   City of Manchester** E Exported 91 52 0087 007-8 Exported to Bulgaria. BG-BZK 26/10/1973 01/07/2006 UK70/87
    87008 87 008‑9   City of Liverpool** E Exported 91 52 0087 008-9 Exported to Bulgaria. Ruse BG-BZK 02/11/1973 01/07/2006 UK70/87
    87009 87 009‑4   City of Birmingham** E Exported 91 52 0087 009-4 Exported to Bulgaria. BG-BMDM 26/11/1973 UK70/87
    87010 87 010‑5   Driver Tommy Farr** E Exported 91 52 0087 010-2 Exported to Bulgaria. BG-BZK 15/12/1973 30/09/2008 UK70/87
    87011 City of Wolverhampton**, The Black Prince** X European Metal Recycling, Kingsbury 25/01/1974 01/2011 UK70/87
    87012 87 012‑1   The Olympian** E Exported 91 52 0087 012-8 Exported to Bulgaria. BG-BZK 25/01/1974 30/11/2006 UK70/87
    87013 87 013‑9   John O'Gaunt** E Exported 91 52 0087 013-6 Exported to Bulgaria. BG-BZK 23/02/1974 01/08/2005 UK70/87
    87014 87 014‑7   Knight of the Thistle** E Exported 91 52 0087 014-7 Exported to Bulgaria. BG-BZK 26/01/1974 01/08/2005 UK70/87
    87015 Howard of Effingham** X JT Lanscapes at MoD Caerwent 19/02/1974 30/04/2005 10/2005 UK70/87
    87016 Willesden Intercity Depot**, Sir Francis Drake** X LT Lanscapes at MoD Caerwent 12/03/1974 14/09/2004 01/12/2004 UK70/87
    87017 87 017‑7   Iron Duke E Exported 91 52 0087 017-7 Exported to Bulgaria. BG-BMDM 06/03/1974 UK70/87
    87018 Lord Nelson** X European Metal Recycling, Kingsbury 07/05/1974 10/2010 UK70/87
    87019 87 019‑6   Association of Community Rail Partnerships E Exported 91 52 0087 019-3 Exported to Bulgaria. BG-BZK 11/03/1974 30/11/2006 UK70/87
    87020 87 020‑4   North Briton** E Exported 91 52 0087 020-1 Exported to Bulgaria. BG-BZK 16/03/1974 01/12/2003 UK70/87
    87021 Robert the Bruce** X European Metal Recycling, Kingsbury 04/04/1974 11/2010 UK70/87
    87022 87 022‑0   Lew Adams The Black Prince** E Exported 91 52 0087 022-7 Exported to Bulgaria. BG-BZK 11/04/1974 30/09/2008 UK70/87
    87023 87 023‑5   Polmadie** E Exported 91 52 0087 023-5 Exported to Bulgaria. BG-BMDM 11/04/1974 UK70/87
    87024 Lord of the Isles** X JT Lanscapes at MoD Caerwent 25/04/1974 31/05/2005 01/11/2005 UK70/87
    87025 87 025‑0   County of Cheshire** E Exported 91 52 0087 025-0 Exported to Bulgaria. BG-BMDM 26/04/1974 UK70/87
    87026 87 026‑1   Sir Richard Arkwright** E Exported 91 52 0087 026-8 Exported to Bulgaria. BG-BZK 04/05/1974 01/10/2006 UK70/87
    87027 Wolf of Badenoch** X European Metal Recycling, Kingsbury 04/05/1974 11/2010 UK70/87
    87028 87 028‑7   Lord President** E Exported 91 52 0087 028-4 Exported to Bulgaria. BG-BZK 13/05/1974 UK70/87
    87029 87 029‑5   Earl Marischal** E Exported 91 52 0087 029-2 Exported to Bulgaria. BG-BZK 04/06/1974 01/08/2004 UK70/87
    87030 Black Douglas** X European Metal Recycling, Kingsbury 08/06/1974 07/2011 UK70/87
    87031 Keith Harper**, Hal o' the Wynd** X European Metal Recycling, Kingsbury 04/07/1974 09/2010 UK70/87
    87032 Richard Fearn**, Kenilworth** X European Metal Recycling, Kingsbury 25/07/1974 11/2010 UK70/87
    87033 87 033‑7   Thane of Fife** E Exported 91 52 0087 033-4 Exported to Bulgaria. BG-BZK 15/08/1974 01/03/2005 UK70/87
    87034 87 034‑5   William Shakespeare** E Exported 91 52 0087 034-2 Exported to Bulgaria. BG-BZK 11/09/1974 UK70/87
    87035 Robert Burns P VTR CQ MBEL Crewe Heritage Centre PRE 09/10/1974 01/01/2005 UK70/87 UKP/87
    87101 87036   STEPHENSON** X Number 87036 allocated but never carried. Harry Needle Railroad Co., Barrow Hill 05/03/1975 01/02/2002 UK70/87
