    UK: Diesel Loco: 56

    Diesel Loco

    ex BR heavy freight type 5 loco

    The British Rail Class 56 is a type of diesel locomotive designed for heavy freight work. It is a Type 5 locomotive, with a Ruston-Paxman power unit developing 3,250 bhp (2,423 kW), and has a Co-Co wheel arrangement. Enthusiasts nicknamed them "Gridirons" (or "Grids" for short), due to the grid-like horn cover on the locomotive's cab ends fitted to nos. 56056 onwards.

    The Class 56 fleet was introduced between 1976 and 1984, a total of 135 examples were manufactured. The first 30 locomotives (56001 - 56030) were built by Electroputere in Romania, but these typically suffered from poor construction standards and many were withdrawn from service early for extensive rebuilding before re-entering revenue service. The remaining 105 locomotives were built by British Rail Engineering Limited (BREL) at Doncaster Works (56031 to 56115) and Crewe Works (56116 to 56135).

    In April 2019, GBRf announced that several Class 56 locomotives would be rebuilt as Class 69s by Progress Rail at its Longport facility. The rebuild scheme involves the replacement of the original Ruston-Paxman RK3 engine with the EMD 710 powerplant, while newer electronic control systems based on those present on the Class 66 were also installed. While the external appearance and many elements were retained, much of the internal systems were replaced with those sourced from the Class 66.

     Surviving examples in private use or preservation.

    Gauge 1435mm
    Builder Electroputere, BREL
    Max Speed 80mph
    Introduced 1976-84
    Length 19350mm
    Width 2790mm
    Height 3890mm
    Weight 125t
    Engine Ruston-Paxman 16RK3CT
    Transmission Diesel Electric
    Power 2424kW
    TE 275kN
    Wheel Arrangement Co-Co
    Number Altnumber Name Status Note Livery Depot Pool Location Base Owner Withdrawn Scrapped
    56006 Ferrybridge 'C' Power Station** P BRB BQ MBDL East Lancashire Railway 56 UK70/56 UKP/56
    56007 69005   N Donor engine for 69005 GBR LP UKRS GBR UK70/56
    56009 56201   S Donor engine for 69011 GBR Stoke Marcroft EOM UK70/56
    56011 X 04/2009 UK70/56
    56018 69003   N Donor engine for 69003 GBR LP UKRS GBR UK70/56
    56021 X 07/2009 UK70/56
    56031 69001   Merehead** N Donor engine for 69001 GBR LP GBGS GBR UK70/56
    56032 County of South Glamorgan/Sir S Donor engine for 69012 GBR LP GBGS GBR UK70/56
    56037 69007   Richard Trevithick** N Donor engine for 69007 GBR LP GBGS GBR UK70/56
    56038 69008   Pathfinder Tours 30 Years of N Donor engine for 69008 GBR LP UKRS GBR UK70/56
    56046 British Steel Shelton** X CIV EMR Kingsbury 04/2012 UK70/56
    56049 COL CW COFS COL UK70/56
    56050 CF Booth's Rotherham 04/2004 06/2004 UK70/56
    56051 Survival, Isle of Grain** COL CW COFS COL UK70/56
    56058 X EMR Kingsbury 05/2012 UK70/56
    56060 69009   The Cardiff Rod Mill** N Donor engine for 69009 GBR LP UKRS GBR UK70/56
    56061 X 31/12/2006 UK70/56
    56065 S Donor engine for cl 69 FER LP UKRS GBR UK70/56
    56069 69004   Wolverhampton Steel Terminal** N Donor engine for 69004 GBR LP GBGS GBR UK70/56
    56073 Tremorfa Steel Works** X EMR Kingsbury 04/2012 UK70/56
    56074 Kellingley Colliery** X Ron Hull Jr. Rotherham 04/2014 UK70/56
    56077 Thorpe Marsh Power Station** S Donor engine for 69014 GBR LP UKRS GBR UK70/56
    56078 Doncaster Enterprise** COL CW COFS COL UK70/56
    56081 Donor engine for 69013 BRB LR GBGD UKRL Leicester GBR UK70/56
    56086 The Magistrates' Association** X EMR Kingsbury 03/2013 UK70/56
    56087 ABP Port of Hull** COL CW COFS BEA UK70/56
    56090 COL CW COFS Boden Engineering, Colwick BEA UK70/56
    56091 Driver Wayne Gaskell The Godfather S DCR LR DCRS DCR UK70/56
    56094 Eggborough Power Station** COL RU COFS COL UK70/56
    56096 COL CW COFS BEA UK70/56
    56097 S BRT LP MBDL EOM UK70/56 UKP/56
    56098 Lost Boys 68-88 Donor engine for 69016 BLL LR GBGD GBR UK70/56
    56101 0659 001‑5   Mutual Improvement**, Frank Hornby** E FLR EPEX H-FLOYD UK70/56

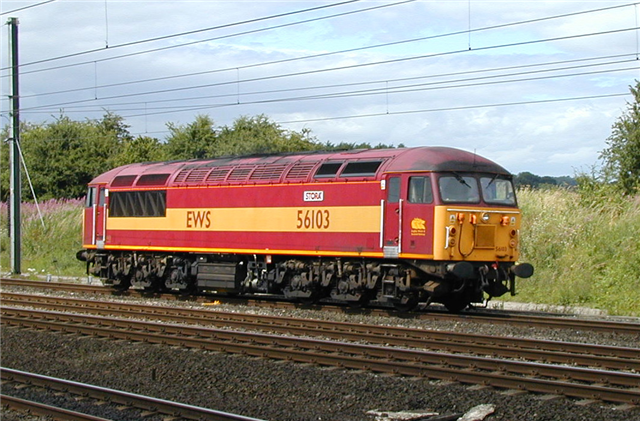

    56103 STORA** DCA LR DCRO DCR UK70/56
    56104 S For spares GBR LP UKRL GBR UK70/56
    56105 COL CW COFS Boden Engineering, Colwick BEA UK70/56
    56106 X 1 cab missing!!- for spares UK70/56
    56112 Stainless Pioneer** EMR Kingsbury 03/2012 UK70/56
    56113 COL CW COFS BEA UK70/56
    56115 0659 002‑3   Barry Needham (+ plaque)** E H-FLOYD UK70/56
    56117 0659 003‑1   Wilton-Coalpower** E Spares donor FER Budapest Keleti H-FLOYD UK70/56
    56133 Crewe Locomotive Works** X EMR Kingsbury 03/2012 UK70/56
    56301 56045   British Steel Shelton** A FLF BO UKRL DCR UK70/56
    56302 56124   PECO The Railway Modeller 2016 70 Years COL CW COFS COL UK70/56
    56303 56125   Brian** S DCR WE HTLX GBR UK70/56
    56311 56057   69002   British Fuels** N Donor engine for 69002 GBR LP GBGS GBR UK70/56
    56312 56003   69013   Artemis** S Donor engine for 69013 GBR LP GBGD GBR UK70/56
    56313 56128   69006   West Burton Power Station** N Donor engine for 69006 GBR LP GBR UK70/56
