    UK: Electric Loco: 73

    Electric Loco

    Bo-Bo (ED/DC)

    The British Rail Class 73 is a British electro-diesel locomotive. The type is unusual in that it can operate from the Southern Region's 650/750 V DC third-rail or an on-board diesel engine to allow it to operate on non-electrified routes. This makes it very versatile, although the diesel engine produces less power than is available from the third-rail supply so the locomotives are rarely operated outside of the former Southern Region of British Rail.

    Following the withdrawal and scrapping of the more powerful Class 74 electro-diesels in 1977, the Class 73 was unique on the British railway network until the introduction of the Class 88 electro-diesels in 2017. Ten locomotives have been scrapped. Since privatisation, the Class 73 fleet has been reduced in size following the large-scale withdrawals of the EWS and Gatwick Express fleets. However, many smaller operators have acquired locomotives, so their continued use is assured for the foreseeable future.

    System 750DC Third Rail
    Length 16.36m
    Introduced 1962
    Wheel Arrangement Bo-Bo
    Builder BR Eastleigh Works / EE Vulcan Foundry
    Power 1420HP
    Weight 78.03t
    TE 186kN
    Engine English Electric 4SRKT Mk II 2 × Cummins QSK19 (73951-2) MTU 8V 4000 R43L (73961-971)
    Transmission 73/0: EE 542A 73/1: EE 546/1B
    Max Speed 73/0: 80 mph 73/1: 90 mph
    Driving Wheel Dia 1.016m
    Brakes Vacuum, Air and Electropneumatic
    Heating ETH
    Number Altnumber Name Status Note Livery Depot Pool Location Base Owner In Service Withdrawn Scrapped
    E6040 73133   Bluebell Railway P ZG MBED Bluebell Railway TTT 08/1966 12/2003 UK70/73 UKP/73
    73001 73901   E6001   P SBB CL MBED Ecclesbourne Valley Railway PRE 01/02/1962 05/2000 UK70/73 UKP/73
    73002 E6002   P BLL ZG LSLS Arlington Fleet Services - Eastleigh Works PRE 12/03/1962 11/1995 UK70/73 UKP/73
    73101 73100   E6007   The Royal Alex' S PUL ZG GBZZ GBR 13/10/1965 UK70/73
    73107 E6013   Redhill 1844-1994** Tracy GBU SE GBED GBR 12/1965 UK70/73
    73109 E6015   Battle of Britain 50th Anniv.**,Battle of Britain 80th Aniversary GBU SE GBED GBR 01/1966 UK70/73
    73110 E6016   P BLU ZG GBBR Arlington Fleet Services - Eastleigh Works GBR 01/1966 05/2002 UK70/73 UKP/73
    73118 E6024   Mary Rose**, The Romney, Hythe & Dymchurch Railway S PR GPSN Barry Tourist Railway PRE 03/1966 UK70/73 UKP/73

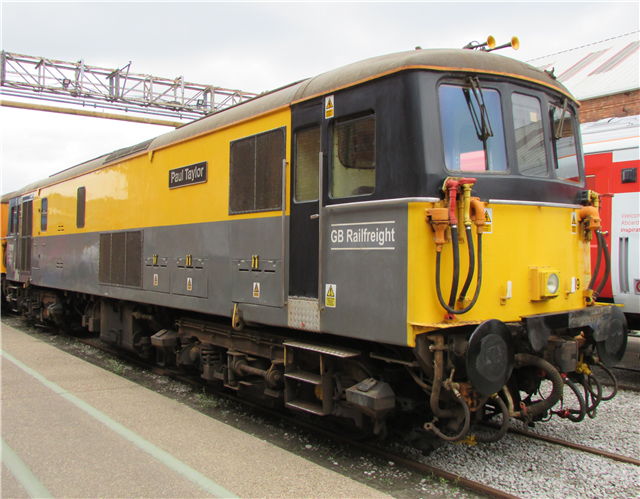

    73119 E6025   Borough of Eastleigh**,Paul Taylor CIV SE GBED GBR 03/1966 UK70/73
    73127 73203   E6034   Woking Homes 1885-1985** X Sims Metals, Halesowen 06/1966 30/04/2010 24/05/2010 UK70/73
    73128 E6035   O.V.S. BULLIED C.B.E.,**kent & East Sussex Railway 50 Years of Heritage 1974-2024 NSE SE GBED GBR 06/1966 UK70/73
    73129 E6036   City Of Winchester P BLU PR MBED Cambrian Heritage Railway, Oswestry PRE 07/1966 06/2002 UK70/73 UKP/73
    73130 E6037   City Of Portsmouth P Scharfenberg Coupler Fitted EPS PR GPSN East Kent Railway 73130 07/1966 UK70/73 UKP/73
    73131 E6038   X C. F. Booth, Rotherham 08/1966 09/2003 08/2004 UK70/73
    73134 E6041   Woking Homes 1885-1995 X Spares donor. C. F. Booth, Rotherham 19/09/1966 UK70/73

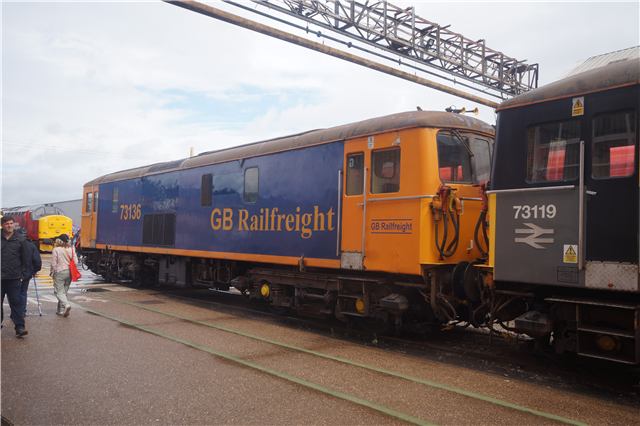

    73136 E6043   Perseverance** Mhairi At PB for shunting purposes. GBU SE GBED GBR 09/1966 UK70/73
    73138 E6045   S NRL LB QADD UKRL Loughborough NRL 11/1966 UK70/73
    73139 E6046   S ZG GBZZ GBR 11/1966 UK70/73
    73141 E6048   Charlotte**,SPA VALLEY RAILWAY 25 YEAR ANNIVERSARY GBU SE GBED Visiting Spa Valley Railway GBR 01/01/1967 UK70/73
    73201 73142   E6049   Broadlands BRB SE GBED GBR 01/01/1967 UK70/73
    73202 73137   E6044   Gatwick Express Used by Southern for crew training. SOU SE GBED GBR 09/1966 UK70/73
    73210 73116   E6022   Selhurst P ICS PR MBED Ecclesbourne Valley Railway PRE 03/1966 09/2002 UK70/73 UKP/73
    73212 73102   E6008   Fiona**,Stephen Eaves GBU SE GBED GBR 10/1965 UK70/73
    73213 73112   E6018   Rhodalyn GBU SE GBED GBR 02/1966 UK70/73
    73235 73135   E6042   BLU WD HYWD PTR 19/09/1966 UK70/73
    73951 73104   E6010   Malcolm Brinded S NRL WS QADD HNRC Worksop LOR 11/1965 UK70/73
    73952 73211   73113   E6019   Janis Kong S NRL WS QADD HNRC Worksop LOR 02/1966 UK70/73
    73961 73901   73209   73120   E6026   Alison GBU SE GBNR GBR 04/1966 UK70/73
    73962 73902   73204   73125   E6032   Janice** Dick Mabbutt GBU SE GBNR GBR 05/1966 UK70/73
    73963 73903   73206   73123   E6030   Janice GBU SE GBNR GBR 05/1966 UK70/73
    73964 73205   73124   E6031   Jeanette GBU SE GBNR GBR 05/1966 UK70/73
    73965 73208   73121   E6028   Kirsten**, Des O'Brien GBU SE GBNR GBR 04/1966 UK70/73
    73966 73005   73905   E6005   Mid-hants WATERCRESS LINE** Dellner coupler fitted. CAS EC GBCS GBR 04/08/1962 UK70/73
    73967 73006   73906   E6006   Dellner coupler fitted. CAS EC GBCS GBR 17/11/1962 UK70/73
    73968 73103   E6009   University of Surrey** Dellner coupler fitted. CAS EC GBCS GBR 10/1965 UK70/73
    73969 73105   E6011   Quadrant** Dellner coupler fitted. CAS EC GBCS GBR 11/1965 UK70/73
    73970 73117   E6023   University of Surrey**,W.S.Sellar Dellner coupler fitted. CAS EC GBCS GBR 03/1966 UK70/73
    73971 73207   73122   E6029   County of East Sussex** Dellner coupler fitted. CAS EC GBCS GBR 05/1966 UK70/73
