    UK: Diesel Loco: 67

    Diesel Loco

    EMD Class 67

    The Class 67 locomotives are a class of Bo-Bo diesel-electric locomotives that were built for the English Welsh & Scottish Railway between 1999 and 2000 by Alstom at Meinfesa in Valencia, Spain with drive components (engine, generator and traction motors) from General Motors' Electro-Motive Division. EMD's designation for this locomotive type is JT42HW-HS

    The bodyshell is a monocoque load-bearing Alstom design, the bogies are an "H" frame Alstom design, the engine, traction motors and control electronics are GM-EMD products, and the same as used in the Class 66. Unlike the Class 66, the traction motors are frame mounted rather than axle hung to reduce unsprung mass and the gear ratio is increased allowing higher speeds. The cab design has a central driving position.

    The locomotives are able to provide Electric Train Supply for passenger train heating and air-conditioning and are equipped for both buffers and chain couplers and buckeye couplers, the latter attached by a swing arm mount.

    Gauge 1435mm
    Length 19.71m
    Width 2.71m
    Height 3.93m
    Introduced 1999
    Wheel Arrangement Bo-Bo
    Builder Alstom Meinfesa, Valencia
    Power 2386kW
    Weight 88-90t
    TE 144kN
    Engine EMD 12N-710G3B-EC
    Transmission EMD D43FM
    Max Speed 125mph
    Driving Wheel Dia 965mm
    Wheelbase 2.8m
    Brakes Electro Pneumatic
    Heating ETH
    Number Name Status Note Livery Depot Pool Owner In Service
    67001 Night Mail** S ATB CE WQDA DBC 12/10/1999
    67002 Special Delivery** DBC CE WAEC DBC 21/02/2000
    67003 S ATB TO WQDA DBC 21/02/2000
    67004 Post Haste** S DBC TO WQDA DBC 20/02/2000

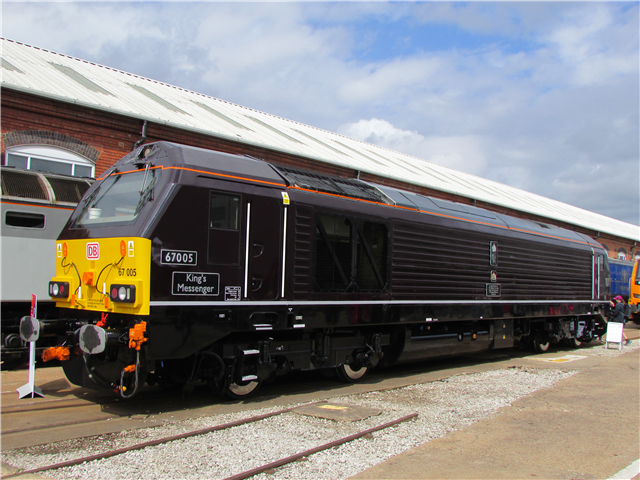

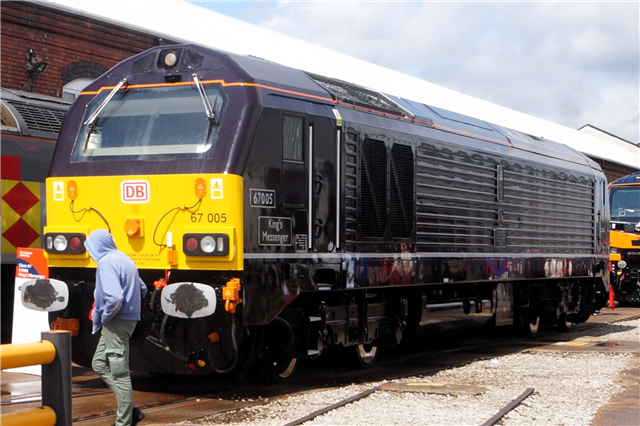

    67005 Queen's Messenger ROZ CE WAAC DBC 22/02/2000
    67006 Royal Sovereign ROZ CE WAAC DBC 11/03/2000
    67007 DBP CE WABC DBC 21/02/2000
    67008 TFW CE WAWC DBC 22/02/2000
    67009 S EWZ CE WQDA DBC 11/03/2000
    67010 Unicorn** DBC CE WAWC DBC 11/03/2000
    67011 S EWZ CE WQDA DBC 12/03/2000
    67012 A Shropshire Lad** CRG CE WAWC DBC 10/03/2000
    67013 Dyfrbont Pontcysyllte (one side only) One nameplate stolen. DBC CE WAWC DBC 12/03/2000
    67014 Thomas Telford TFW CE WAWC DBC 11/03/2000
    67015 David J. Lloyd DBC CE WAWC DBC 10/03/2000
    67016 050 CE WAWC DBC 12/03/2000
    67017 Arrow** TFW CE WAWC DBC 10/03/2000
    67018 Keith Heller S DBC CE WQDA DBC 11/03/2000
    67019 S EWZ CE WQDA DBC 18/04/2000
    67020 050 CE WAWC DBC 18/04/2000
    67021 PUL CE WAAC DBC 18/04/2000
    67022 EWZ CE WAWC DBC 18/04/2000
    67023 Stella COL ZG GBKP BEA 26/05/2000
    67024 PUL CE WAAC DBC 24/05/2000
    67025 Western Star** TFW CE WAWC DBC 24/05/2000
    67026 Diamond Jubilee S JUB CE WQDA DBC 24/05/2000
    67027 Charlotte** GBU RU COTS BEA 09/08/2000
    67028 S DBC CE WQDA DBC 09/08/2000
    67029 Royal Diamond AOS CE WAWC DBC 09/08/2000
    67030 S EWZ CE WQDA DBC 09/08/2000
