    UK: Diesel Loco: 47

    Diesel Loco

    ex BR mixed traffic Type 4 Diesel Electric loco

    The British Rail Class 47 or Brush Type 4 is a class of diesel-electric locomotive that was developed in the 1960s by Brush Traction. A total of 512 Class 47s were built at Brush's Falcon Works in Loughborough and at British Railways' Crewe Works between 1962 and 1968, which made them the most numerous class of British mainline diesel locomotive.

    They were fitted with the Sulzer 12LDA28C twin-bank twelve-cylinder unit producing 2,750 bhp (2,050 kW) – though this was later derated to 2,580 bhp (1,920 kW) to improve reliability – and have been used on both passenger and freight trains on Britain's railways for over 55 years.

    Despite the introduction of more modern types of traction, a significant number are still in use, both on the mainline and on heritage railways. At least 31 class 47's have been preserved. 33 further locomotives were converted to Class 57s between 1998 and 2004.

    Gauge 1435mm
    Builder Brush Traction, BR Crewe
    Max Speed 95mph
    Introduced 1962-68
    Length 19380mm
    Width 2690mm
    Height 3900mm
    Weight 114t-127t
    Engine Sulzer 12LDA28-C
    Transmission Diesel Electric
    Power 1920kW
    TE 245kN-267kN
    Driving Wheel Dia 1143mm
    Wheelbase 15700mm
    Wheel Arrangement Co-Co
    Number Altnumber Name Status EVN Note Livery Depot Pool Location Base Owner In Service Withdrawn Scrapped
    D1924 47655   47247   47810   Porterbrook**, Captain Sensible**, Peter Bath MBE 1927-2006, Crewe Diesel Depot GRN CL LSLO LSL 20/12/1965 UK70/47
    D1935 47650   47257   47805   Bristol Bath Road**, Pride of Toton**, Talisman**, John Scott 12.5.45-22.5.12 S GRN CL LSLO LSL 18/03/1966 UK70/47
    D1944 47501   Craftsman GRN CL LSLO Loram, Derby RTC LSL 29/06/1966 UK70/47
    47004 D1524   Old Oak Common Traction & Rolling Stock Depot P GRN PR Embsay & Bolton Abbey Steam Railway PRE 14/06/1963 31/08/2006 UK70/47 UKP/47
    47033 D1613   X T. J. Thomson, Stockton 25/08/1964 31/12/2007 03/2008 UK70/47
    47053 D1635   X European Metal Recycling, Kingsbury 21/11/1964 28/02/2007 03/2007 UK70/47
    47105 D1693   P BRB PR MBDL Gloucestershire Warwickshire Steam Railway PRE 06/12/1963 13/12/1993 UK70/47 UKP/47
    47117 D1705   1705   SPARROWHAWK P BRB PR MBDL Great Central Railway PRE 04/11/1965 17/07/1991 UK70/47 UKP/47
    47145 D1738   X T. J. Thomson, Stockton 28/05/1964 01/02/2007 08/2009 UK70/47
    47192 D1842   P GRN CQ MBDL Ecclesbourne Valley Railway PRE 14/05/1965 18/05/1988 UK70/47 UKP/47
    47194 D1844   X Carnforth TMD 22/05/1965 UK70/47
    47197 D1847   X T. J. Thomson, Stockton 05/06/1965 28/02/2007 01/2008 UK70/47
    47200 D1850   X T. J. Thomson, Stockton 19/06/1965 31/12/2007 05/2008 UK70/47
    47205 47395   D1855   P RFD PR Northampton & Lamport Railway PRE 24/08/1965 30/09/2004 UK70/47 UKP/47
    47212 D1862   X R. Garrett at Crewe LNWR 13/05/1965 31/01/2004 02/2004 UK70/47
    47224 D1874   X Harry Needle Railroad Co. at Crewe LNWR 18/06/1965 31/10/2007 10/2007 UK70/47
    47229 D1905   X T. J. Thomson, Stockton 23/09/1965 31/12/2006 03/2007 UK70/47
    47236 D1913   X Morecambe Metals, Carnforth 11/2017 UK70/47
    47237 D1914   WCR CS AWCA WCR 01/11/1965 UK70/47
    47245 D1922   V.E. Day 75th Anniversary WCR CS AWCA WCR 09/12/1965 UK70/47
    47270 D1971   SWiFT** Carries number D1971 BRB CS AWCA WCR 30/10/1965 28/02/2007 UK70/47
    47285 D1987   X Ron Hull Jr., Rotherham 29/01/1966 31/12/2004 02/2005 UK70/47
    47289 D1991   X T. J. Thomson, Stockton 02/03/1966 12/2010 UK70/47
    47292 D1994   P BLL PR MBDL Churnet Valley Railway PRE 16/04/1966 28/02/2007 UK70/47 UKP/47
    47298 D1100   X C. F. Booth, Rotherham 01/08/1966 30/04/2007 05/2007 UK70/47
    47306 D1787   The Sapper P RFI PR MBDL Bodmin & Wenford Railway PRE 26/11/1964 31/05/2006 UK70/47 UKP/47
    47309 47389   D1790   X T. J. Thomson, Stockton 10/12/1964 28/02/2007 02/2009 UK70/47
    47316 D1797   X T. J. Thomson, Stockton 06/01/1965 31/12/2007 04/2008 UK70/47
    47326 D1807   X T. J. Thomson, Stockton 25/01/1965 31/08/2006 10/2006 UK70/47
    47338 D1819   X C. F. Booth, Rotherham 12/02/1965 30/04/2007 07/2007 UK70/47
    47355 47391   D1836   S FRB CS AWCX WCR 07/04/1965 UK70/47
    47363 47385   D1882   X C. F. Booth, Rotherham 02/07/1965 31/10/2007 03/2010 UK70/47
    47365 D1884   X C. F. Booth, Rotherham 06/07/1965 10/2007 UK70/47
    47367 D1886   P BRB DE Mid Norfolk Railway PRE 26/08/1965 31/12/2002 UK70/47 UKP/47
    47368 D1887   X Carnforth TMD 17/08/1965 31/10/2007 UK70/47
    47370 D1889   X T. J. Thomson, Stockton 23/07/1965 01/01/2003 08/2009 UK70/47
    47375 D1894   047 375‑5   Falcon E 92 70 0047 375-5 032 Hungary UK-CRSHU 03/12/1965 UK70/47
    47376 D1895   Freightliner 1995 P FLY PR Gloucestershire Warwickshire Steam Railway PRE 01/09/1965 31/12/2002 UK70/47 UKP/47

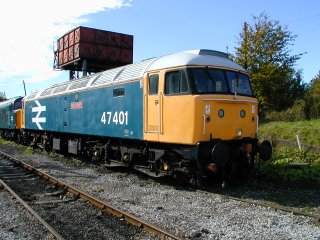

    47401 D1500   North Eastern, Star Of The East** P BRB SK MBDL Midland Railway - Butterley PRE 28/09/1962 05/06/1992 UK70/47 UKP/47
    47402 D1501   Gateshead P GRN BQ MBDL Peak Rail PRE 13/11/1962 01/06/1992 UK70/47 UKP/47
    47417 D1516   P GRN SK Midland Railway - Butterley PRE 10/04/1963 24/02/1992 UK70/47 UKP/47
    47449 D1566   ORION P BRB PR MBDL Llangollen Railway PRE 23/03/1964 14/05/1993 UK70/47 UKP/47
    47478 D1608   X Harry Needle Railroad Co., at EMR, Kingsbury 31/07/1964 31/12/2005 04/2006 UK70/47
    47484 D1662   1662   ISAMBARD KINGDOM BRUNEL S GRN GY TTLS RSS Wishaw PDG 20/02/1965 01/06/1998 UK70/47 UKP/47
    47488 D1713   Rail Riders**, Davies The Ocean** E 92-70-06-47-488-01 For CRS Hungary 28/01/1964 30/06/2008 UK70/47
    47489 D1716   X C. F. Booth, Rotherham 18/02/1964 31/10/2007 03/2010 UK70/47
    47492 D1760   X Spares donor Carnforth TMD 08/09/1964 01/02/1999 UK70/47
    47500 47770   D1943   X West Coast Railways, Carnforth 27/06/1966 10/2019 UK70/47
    47524 D1107   Res Gestae X C. F. Booth, Rotherham 23/12/1966 23/08/2019 UK70/47 UKP/47
    47525 D1108   X European Metal Recycling, Kingsbury 28/01/1967 31/10/2007 08/2010 UK70/47
    47526 D1109   S BLL CS AWCX WCR 28/01/1967 31/10/2007 UK70/47
    47528 D1111   X Ron Hull Jr., Rotherham 25/02/1967 29/02/2008 06/2008 UK70/47
    47540 47975   D1723   The Institution of Civil Engineers** X T. J. Thomson, Stockton 17/03/1964 01/05/1998 04/2016 UK70/47 UKP/47
    47575 47175   D1770   City of Hereford** X C. F. Booth, Rotherham 05/10/1964 31/05/2010 UK70/47
    47580   47167   D1762   47732   County of Essex, Restormel** P Union Flag vinyls BLL BU MBDL Mid Norfolk Railway 47 01/09/1964 01/04/2004 UK70/47 UKP/47
    47593 47673   47790   47272   D1973   York InterCity Control**, Saint David/Dewi Saint**, Galloway Princess BLL CL LSLO LSL 10/11/1965 UK70/47
    47596 47255   D1933   Aldeburgh Festival P GRN DE MBDL Mid Norfolk Railway PRE 02/03/1966 01/04/1999 UK70/47 UKP/47
    47614 47853   47141   D1733   Rail Express BRB CL LSLO LSL 12/06/1964 UK70/47
    47628 47078   D1663   Sir Daniel Gooch** X Ron Hull Jr., Rotherham 20/02/1965 01/05/1997 15/03/2006 UK70/47
    47635 47029   D1606   The Lass O'Ballochmyle**, Jimmy Milne P BLL PR MBDL Epping & Ongar Railway PRE 29/07/1964 01/02/2004 UK70/47 UKP/47
    47640 47244   D1921   University of Strathclyde P BLL BU NRLS Nemesis Rail, Burton-on-Trent NEM 03/12/1965 UK70/47 UKP/47
    47643 47269   D1970   P ICM BO RAJV Bo'ness & Kinneil Railway PRE 22/10/1965 01/04/1991 UK70/47 UKP/47
    47701 47493   D1932   Saint Andrew**, Old Oak Common Traction & Rolling Stock Depot**, Waverley P GRN PR NRLO Wensleydale Railway PRE 24/02/1966 01/12/2003 UK70/47 UKP/47
    47703 47514   D1960   Saint Mungo**, The Queen Mother**, Hermes** S FRA BH HNRL Wabtec, Doncaster HNRC 11/11/1967 UK70/47
    47707 47506   D1949   Holyrood** X C. F. Booth, Rotherham 25/08/1966 28/02/2010 UK70/47
    47709 47499   D1942   The Lord Provost**, Dionysos** X Raxstar at Eastleigh Works 16/06/1966 12/09/2012 UK70/47
    47712 47505   D1948   Lady Diana Spencer, Dick Whittington**, Artemis**, Pride of Carlisle** P On loan to LSL 045 CL LSLO Locomotive Services, Crewe CDPG 01/08/1966 UK70/47 UKP/47
    47713 47510   D1954   X Vic Berry, Leicester 11/11/1966 01/07/1988 07/1990
    47714 47511   D1955   Thames**, Grampian Region** S ANG Wensleydale Railway 29/11/1966 UK70/47 UKP/47

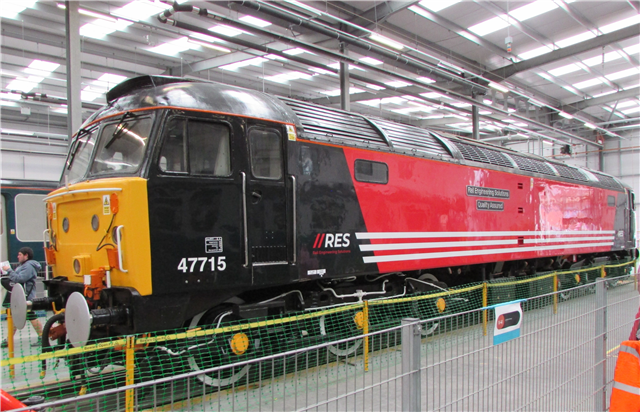

    47715 47502   D1945   Haymarket**, Poseidon** NSE WS HNRL HNRC 30/06/1966 01/03/1997 UK70/47 UKP/47
    47716 47507   D1951   Duke of Edinburgh's Award** X C. F. Booth, Rotherham 14/10/1966 14/03/2010 UK70/47
    47717 47497   D1940   Tayside Region** X 16/06/1966 01/09/1996 31/03/2007 UK70/47
    47721 47557   47024   D1591   Saint Bede** X European Metal Recycling, Kingsbury 05/06/1964 01/04/2002 31/05/2007 UK70/47
    47722 47558   47027   D1599   The Queen Mother**, Mayflower** X European Metal Recycling, Kingsbury 29/06/1964 01/03/2002 31/05/2007 UK70/47
    47725 47567   47044   D1625   Red Star ISO 9002**, The Railway Mission**, Bristol Barton Hill** X C. F. Booth, Rotherham 03/10/1964 01/02/2003 01/06/2006 UK70/47
    47726 47568   47045   D1626   Royal Logistic Corps Postal & Courier Services**, Manchester Airport Progress** X European Metal Recycling, Kingsbury 10/10/1964 01/10/2002 01/04/2007 UK70/47
    47727 47569   47047   D1629   The Gloucestershire Regiment**, Duke of Edinburgh's Award**, Caerphilly Castle/Castell Caerffilli**, Rebecca CAS LR GBDF GBR 17/10/1964 UK70/47
    47733 47582   47170   D1765   Eastern Star**, County of Norfolk** X European Metal Recycling, Kingsbury 05/10/1964 01/02/2004 31/05/2008 UK70/47
    47737 47588   47178   D1773   Resurgent**, Carlisle Currock** X European Metal Recycling, Kingsbury 15/09/1965 01/02/2004 31/08/2008 UK70/47

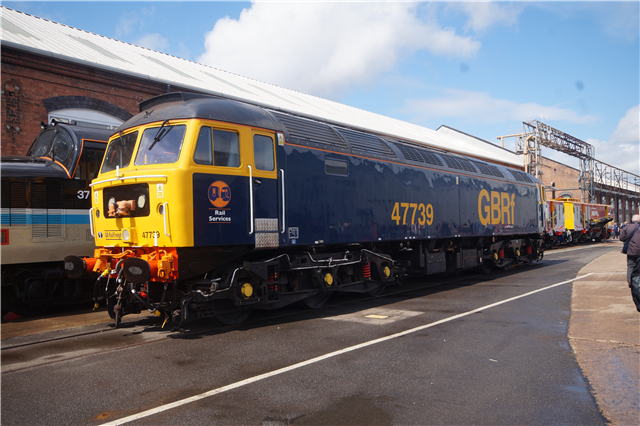

    47739 47594   47035   D1615   Resourceful**, Robin of Templecombe O GBU LR GBDF UKRL Loughborough GBR 29/08/1964 UK70/47
    47741 47597   47026   D1597   Resilient** X European Metal Recycling, Kingsbury 22/06/1964 01/01/2003 31/05/2008 UK70/47
    47744 47600   47250   D1927   Dewi Sant/Saint David**, The Cornish Experience**, Saint Edwin**, Royal Mail Cheltenham** S For Hungary EWS BU NRLS NEM 31/01/1966 UK70/47
    47746 47605   47160   D1754   The Bobby** WCR CS AWCA WCR 19/08/1964 01/12/2003 UK70/47
    47747 47615   47252   D1929   Castell Caerffili/Caerphilly Castle**, Res Publica**, Graham Farish**, Florence Nightingale** X 07/02/1966 30/06/2013 UK70/47
    47749 47625   47076   D1660   City of Truro**, Resplendent**, Atlantic College**, Demelza Dellner coupler fitted BRG LR GBDF GBR 13/02/1965 UK70/47
    47750 47626   47082   D1667   ATLAS** X European Metal Recycling, Kingsbury 06/03/1965 01/06/2004 01/05/2008 UK70/47
    47760 47672   47562   47036   D1617   Sir William Burrell**, Restless**, Ribblehead Viaduct** WCR CS AWCA WCR 04/09/1964 UK70/47
    47761 47564   47038   D1619   Colossus** P RES SK MBDL Midland Railway - Butterley PRE 12/09/1964 01/11/2003 UK70/47 UKP/47
    47765 47631   47059   D1643   Ressaldar** P 045 BQ MBDL East Lancashire Railway PRE 19/12/1964 01/03/2000 UK70/47 UKP/47
    47768 47490   D1725   Bristol Bath Road**, Resonant** S UC CS AWCX WCR 24/03/1964 01/07/2000 UK70/47
    47769 47491   D1753   Horwich Enterprise**, Resolve S VTR BH HNRS EMR, Kingsbury HNRC 21/07/1964 UK70/47
    47771 47503   D1946   The Geordie**, Heaton Traincare Depot** P RES ZG MBDL Arlington Fleet Services - Eastleigh Works PRE 06/07/1966 01/03/2000 UK70/47 UKP/47
    47772 47537   47073   D1657   Sir Gwynedd/County of Gwynedd**, Carnforth TMD** S WCR CS AWCA WCR 01/02/1965 UK70/47
    47773 47541   47161   D1755   The Queen Mother**, Reservist** P GRN TM MBDL Tyseley Locomotive Works 70 14/08/1964 01/02/2004 UK70/47 UKP/47
    47776 47578   47181   D1776   The Royal Society of Edinburgh**, Respected** S RES CS AWCX WCR 22/10/1964 UK70/47
    47780 47836   47618   47030   D1609   Fair Rosamund** X European Metal Recycling, Kingsbury 11/08/1964 01/04/2003 07/08/2007 UK70/47
    47782 47824   47602   47185   D1780   Glorious Devon** X RX T. J. Thomson & Son Ltd., Stockton 30/10/1964 01/09/2003 31/05/2007 UK70/47
    47785 47820   47665   47232   D1909   The Statesman**, Fiona Castle** P EWS PR Wensleydale Railway PRE 19/10/1965 01/09/2003 UK70/47 UKP/47
    47786 47821   47607   47138   D1730   Royal Worcester**, Roy Castle OBE WCR BU AWCA WCR 28/04/1964 UK70/47
    47787 47823   47610   47163   D1757   SS Great Britain**, Windsor Castle** S WCR CS AWCX WCR 17/09/1964 UK70/47
    47791 47675   47595   47268   D1969   Confederation of British Industry**, Venice Simplon Orient Express** X C. F. Booth, Rotherham 22/10/1965 31/05/2013 UK70/47
    47793 47579   47183   D1778   James Nightall GC, Saint Augustine**, Christopher Wren** P On loan from Mangapps Railway Museum BRB RL MBDL Mid Hants Railway PRE 23/10/1964 01/02/2004 UK70/47 UKP/47
    47798 47834   47609   47072   D1656   FIRE FLY**, Prince William P ROZ YK MBDL National Railway Museum NRM 01/02/1965 01/02/2004 UK70/47 UKP/47
    47799 47835   47620   47070   D1654   Windsor Castle**, Prince Henry** P ROZ PR Eden Valley Railway PRE 23/01/1965 UK70/47 UKP/47
    47802 47552   47259   D1950   Pride of Cumbria** WCR CS AWCA WCR 09/09/1966 UK70/47
    47804 47792   47591   47265   D1965   Kettering**, Robin Hood** WCR CS AWCA WCR 02/10/1965 UK70/47
    47811 47656   47128   D1719   W FLG CL DHLT LSL 25/02/1964 UK70/47
    47812 47657   47239   D1916   Pride of Eastleigh** WCR CS AWCA WCR 18/11/1965 UK70/47
    47813 47658   47129   D1720   SS Great Britain**, John Peel**, Solent**, Jack Frost** WCR CS AWCA WCR 06/03/1964 UK70/47
    47815 47660   47155   D1748   Abertawe/Landore**, Great Western, Lost Boys 68-88** GRN CS AWCA WCR 01/07/1964 UK70/47
    47816 47661   47066   D1650   Bristol Bath Road Quality Approved** S FLG CL DHLT LSL 09/01/1965 UK70/47
    47818 47663   47240   D1917   Strathclyde**, Emily** S BLU ZG MBDL AFS 03/12/1965 UK70/47
    47826 47637   47274   D1976   Springburn** WCR CS AWCA WCR 24/11/1965 UK70/47
    47828 47629   47266   D1966   Severn Valley Railway**, Joe Strummer**, Titan Star** P ICS CL LSLO Locomotive Services, Crewe D05 02/10/1965 UK70/47 UKP/47
    47829 47619   47264   D1964   POLICE** X C. F. Booth, Rotherham 24/09/1965 12/02/2013 UK70/47
    47830 47649   47061   D1645   BEECHING'S LEGACY W GRN CB DFLH FLT 24/12/1964 UK70/47
    47832 47560   47031   D1610   Tamar**, Driver Tom Clarke OBE**, Solway Princess** WCR CS AWCA WCR 13/08/1964 UK70/47
    47839 47621   47136   D1728   Royal County of Berkshire**, Pride of Saltley**, Pegasus** X Raxstar at Eastleigh Works 21/04/1964 08/08/2013 UK70/47
    47840 47613   47077   D1661   NORTH STAR P On loan to the North Yorkshire Moors Railway BRB PR MBDL West Somerset Railway PRE 13/02/1965 01/05/2007 UK70/47 UKP/47
    47841 47622   47134   D1726   The Institution of Mechanical Engineers, Spirit of Chester** S ICS CL LSLS Locomotive Services, Crewe LSL 24/03/1964 UK70/47 UKP/47
    47843 47623   47090   D1676   Vulcan S RIV WS SROG HNRC 16/04/1965 UK70/47
    47847 47577   47179   D1774   Benjamin Gimbert GC**, Railway World Magazine S BLL WS SROG HNRC 19/10/1964 UK70/47
    47848 47632   47068   D1562   D1652   Newton Abbot Festival of Transport**, Titan Star WCR CS AWCA WCR 16/01/1965 UK70/47
    47851 47639   47064   D1648   Industry Year 1986**, Traction Magazine** WCR CS AWCA WCR 22/01/1965 UK70/47
    47854 47604   47674   47271   D1972   Women's Royal Voluntary Service**, Diamond Jubilee** WCR CS AWCA WCR 06/11/1965 UK70/47
    47972 97545   47545   47062   D1646   The Royal Army Ordnance Corps** X C. F. Booth, Rotherham 31/12/1964 14/03/2010 UK70/47
