    UK: Shunter: 09

    Diesel Loco

    Class 09 Shunter Gronk

    The British Rail Class 09 is a class of 0-6-0 diesel locomotive designed primarily for shunting and short-distance freight trips along branch lines.

    The 26 locos are nearly identical to the more numerous Class 08 shunting locomotives but have different gearing, giving a higher top speed of 27.5 mph (44 km/h) at the expense of a lower tractive effort. They were introduced from 1959 to 1962 and latterly operated in the Southern Region of British Railways, although some of the class were originally allocated to depots in the Midlands and North. Further locomotives were converted from Class 08 in 1992 and, following this and privatisation in 1997, the class has been distributed much further afield.

    Gauge 1435mm
    Builder BR Darlington, Horwich
    Max Speed 27.5mph
    Introduced 1959-62 (1992-93)
    Length 8920mm
    Width 2590mm
    Height 3870mm
    Weight 49.8t
    Engine English Electric 6KT
    Transmission Diesel Electric
    Power 261kW
    TE 111.2kN
    Driving Wheel Dia 1372mm
    Wheelbase 3510mm
    Wheel Arrangement 0-6-0

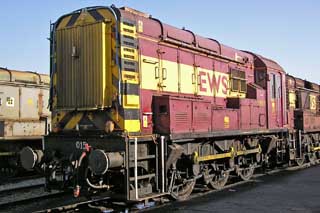

    Photo: John J Cordrey

    Number Altnumber Name Status Note Livery Depot Pool Location Base Owner In Service Withdrawn Scrapped
    09002 D3666   Shunting Belle** GRN BH GBWM HNRC Barrow Hill GBR 03/02/1959 UK70/09
    09003 D3667   TATTOO** X European Metal Recycling, Kingsbury 19/02/1959 09/2011 UK70/09
    09005 D3669   X C. F. Booth, Rotherham 19/02/1959 02/2011 UK70/09
    09006 D3670   S EWS BH HNRS Nemesis Rail, Burton-on-Trent HNRC 25/03/1959 UK70/09
    09008 D3719   SMUDGER**, Sheffield Childrens Hospital**, ALDWARD** X European Metal Recycling, Kingsbury 13/04/1959 09/2011 UK70/09
    09009 D3720   Three Bridges C.E.D. GRN PG GBWM Gemini Traincare, Wolverton Works RSS 15/04/1959 UK70/09
    09011 D4099   SULLY** X European Metal Recycling, Kingsbury 19/09/1961 11/2011 UK70/09
    09013 D4101   VAL** X C. F. Booth, Rotherham 03/10/1961 02/2011 UK70/09
    09014 D4102   Old Albion** S BRD BH HNRS Nemesis Rail, Burton-on-Trent HNRC 12/10/1961 UK70/09
    09015 D4103   Rob**, Robbo**, SUSAN**, Tulyar**, County of Hereford** P Spare parts donor. EWS PR MBDL Avon Valley Railway PRE 26/10/1961 UK70/09 UKP/09
    09016 D4104   THE SNIPER**, BUTCH** X European Metal Recycling, Kingsbury 26/10/1961 02/2011 UK70/09
    09018 D4106   P GRN PR Bluebell Railway PRE 13/11/1961 UK70/09 UKP/09
    09020 D4108   X European Metal Recycling, Kingsbury 23/11/1961 02/2012 UK70/09
    09021 D4109   X C. F. Booth, Rotherham 29/11/1961 31/12/2007 31/07/2008 UK70/09
    09022 D4110   PB144   144   PORT OF BOSTON, Douglas** I BRB Victoria Group, Boston Docks VGO 08/12/1961 UK70/09
    09023 D4111   S EWS EMR, Attercliffe EUR 15/12/1961 UK70/09
    09026 D4114   Cedric Wares, William Pearson** P GRN PR Spa Valley Railway PRE 21/01/1962 01/10/2005 UK70/09 UKP/09
    09101 08833   D4001   IVOR** X Converted 17/08/1992 from class 08. C. F. Booth, Rotherham 05/11/1960 01/2011 UK70/09
    09102 08832   D4000   HENTO** X Converted 22/09/1992 from class 08. 29/10/1960 30/04/2011 UK70/09
    09103 08766   D3934   X Converted 05/01/1993 from class 08. European Metal Recycling at Ayr Harbour. 28/03/1961 09/2010 UK70/09
    09104 08749   D3917   OLD ALBION** X Converted 05/01/1993 from class 08. European Metal Recycling at Hartlepool. 12/12/1960 10/2011 UK70/09
    09105 08835   D4003   COCKER** X Converted 15/03/1993 from class 08. C. F. Booth, Rotherham 12/11/1960 01/2011 UK70/09
    09106 08759   D3927   Converted 09/06/1993 from class 08. BH HNRL Celsa Steel UK, Tremorfa Steelworks, Cardiff HNRC 16/02/1961 UK70/09
    09107 08845   D4013   P Converted 23/07/1993 from class 08. BRB KR Severn Valley Railway PRE 02/05/1961 UK70/09 UKP/09
    09201 08421   D3536   S Converted 22/09/1992 from class 08. BRD BH HNRL HNRC Worksop HNRC 08/08/1958 UK70/09
    09202 08732   D3900   X Converted 24/11/1992 from class 08. C. F. Booth, Rotherham 08/08/1958 21/01/2011 UK70/09
    09203 08781   D3949   WRIGHTY X Converted 02/10/1992 from class 08. C. F. Booth, Rotherham 09/04/1960 01/2012 UK70/09
    09204 08717   D3884   Converted 23/10/1992 from class 08. ATC CL MBDL Arriva Traincare, Crewe ARR 15/05/1960 UK70/09
    09205 08620   D3787   X Converted 10/12/1992 from class 08. T. J. Thomson & Son Ltd., Stockton 26/09/1959 09/2012 UK70/09
    D3671 09007   Carries it's D number GRN WN Arriva Willesden LOG 26/03/1959 UK70/09
