    UK: Electric Unit: 701

    Electric Unit

    Arterio

    South Western Railway, ten car and five car Bombardier/Alstom Arterio units.

    Introduced into service 2024 and operating Waterloo to Windsor and Reading services.

    Based at Feltham and Wimbledon depots

    Builder Alstom Derby
    Max Speed 100mph
    Introduced 2024
    System 750 V DC third rail
    Power 4000kW
    Seats 556
    Brakes Electro-Pneumatic disc / Rheostatic regenerative.
    Formation DM-(P)M-TLW-M-EM-EM-M-TLW-(P)M-DM
    Bogies Flex B5000

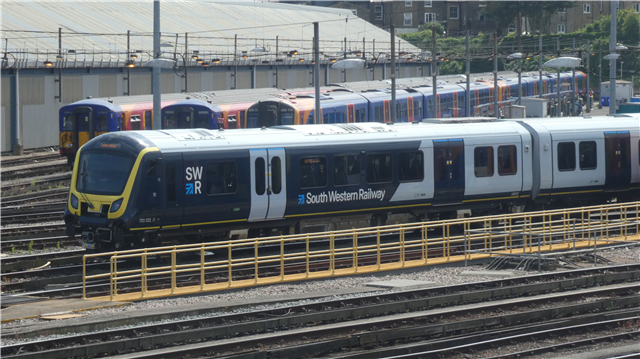

    701011 at Clapham Yard

    Photo: Neil Thaler

    Number Name Status Formation Livery Depot Pool Location Owner
    701001 S 480001,481001,482001,483001,484001,485001,486001,487001,488001,489001 SWX ZD HYHQ RRH
    701002 S 480002,481002,482002,483002,484002,485002,486002,487002,488002,489002 SWX ZD HYHQ RRH
    701003 S 480003,481003,482003,483003,484003,485003,486003,487003,488003,489003 SWX WS HYHQ RRH
    701004 S 480004,481004,482004,483004,484004,485004,486004,487004,488004,489004 SWX EH HYHQ MOD Marchwood RRH
    701005 S 480005,481005,482005,483005,484005,485005,486005,487005,488005,489005 SWX ZD HYHQ RRH
    701006 S 480006,481006,482006,483006,484006,485006,486006,487006,488006,489006 SWX EH HYHQ Wimbledon RRH
    701007 S 480007,481007,482007,483007,484007,485007,486007,487007,488007,489007 SWX WS HYHQ RRH
    701008 S 480008,481008,482008,483008,484008,485008,486008,487008,488008,489008 SWX WS HYHQ RRH
    701009 S 480009,481009,482009,483009,484009,485009,486009,487009,488009,489009 SWX WS HYHQ RRH
    701010 S 480010,481010,482010,483010,484010,485010,486010,487010,488010,489010 SWX EH HYHQ RRH
    701011 S 480011,481011,482011,483011,484011,485011,486011,487011,488011,489011 SWX EH HYHQ Wimbledon RRH
    701012 T 480012,481012,482012,483012,484012,485012,486012,487012,488012,489012 SWX EH HYHQ RRH
    701013 S 480013,481013,482013,483013,484013,485013,486013,487013,488013,489013 SWX LM HYHQ RRH
    701014 S 480014,481014,482014,483014,484014,485014,486014,487014,488014,489014 SWX EH HYHQ MOD Marchwood RRH
    701015 T 480015,481015,482015,483015,484015,485015,486015,487015,488015,489015 SWX EH HYHQ RRH
    701016 S 480016,481016,482016,483016,484016,485016,486016,487016,488016,489016 SWX EH HYHQ MOD Marchwood RRH
    701017 A 480017,481017,482017,483017,484017,485017,486017,487017,488017,489017 SWX WD HYHQ RRH
    701018 S 480018,481018,482018,483018,484018,485018,486018,487018,488018,489018 SWX LM HYHQ RRH
    701019 S 480019,481019,482019,483019,484019,485019,486019,487019,488019,489019 SWX EH HYHQ MOD Marchwood RRH
    701020 S 480020,481020,482020,483020,484020,485020,486020,487020,488020,489020 SWX WS HYHQ RRH
    701021 S 480021,481021,482021,483021,484021,485021,486021,487021,488021,489021 SWX WS HYHQ RRH
    701022 S 480022,481022,482022,483022,484022,485022,486022,487022,488022,489022 SWX EH HYHQ MOD Marchwood RRH
    701023 S 480023,481023,482023,483023,484023,485023,486023,487023,488023,489023 SWX LM HYHQ Eastleigh RRH
    701024 S 480024,481024,482024,483024,484024,485024,486024,487024,488024,489024 SWX WB HYHQ RRH
    701025 S 480025,481025,482025,483025,484025,485025,486025,487025,488025,489025 SWX LM HYHQ RRH
    701026 S 480026,481026,482026,483026,484026,485026,486026,487026,488026,489026 SWX LM HYHQ RRH
    701027 S 480027,481027,482027,483027,484027,485027,486027,487027,488027,489027 SWX EH HYHQ RRH
    701028 480028,481028,482028,483028,484028,485028,486028,487028,488028,489028 SWX WD HYHQ RRH
    701029 S 480029,481029,482029,483029,484029,485029,486029,487029,488029,489029 SWX EH HYHQ MOD Marchwood RRH
    701030 S 480030,481030,482030,483030,484030,485030,486030,487030,488030,489030 SWX LM HYHQ RRH
    701031 Nighthawk A 480031,481031,482031,483031,484031,485031,486031,487031,488031,489031 SWX WD HYHQ RRH
    701032 S 480032,481032,482032,483032,484032,485032,486032,487032,488032,489032 SWX EH HYHQ MOD Marchwood RRH
    701033 S 480033,481033,482033,483033,484033,485033,486033,487033,488033,489033 SWX LM HYHQ Wimbledon RRH
    701034 S 480034,481034,482034,483034,484034,485034,486034,487034,488034,489034 SWX LM HYHQ Eastleigh RRH
    701035 S 480035,481035,482034,483035,484035,485035,486035,487035,488035,489035 SWX WD HYHQ RRH
    701036 A 480036,481036,482036,483036,484036,485036,486036,487036,488036,489036 SWX WD HYHQ RRH
    701037 480037,481037,482037,483037,484037,485037,486037,487037,488037,489037 SWX WD HYHQ RRH
    701038 S 480038,481038,482038,483038,484038,485038,486038,487038,488038,489038 SWX EH HYHQ MOD Marchwood RRH
    701039 A 480039,481039,482039,483039,484039,485039,486039,487039,488039,489039 SWX WD HYHQ RRH
    701040 T 480040,481040,482040,483040,484040,485040,486040,487040,488040,489040 SWX EH HYHQ RRH
    701041 S 480041,481041,482041,483041,484041,485041,486041,487041,488041,489041 SWX LM HYHQ Wimbledon RRH
    701042 T 480042,481042,482042,483042,484042,485042,486042,487042,488042,489042 SWX EH HYHQ RRH
    701043 A 480043,481043,482043,483043,484043,485043,486043,487043,488043,489043 SWX WD HYHQ RRH
    701044 T 480044,481044,482044,483044,484044,485044,486044,487044,488044,489044 SWX EH HYHQ RRH
    701045 S 480045,481045,482045,483045,484045,485045,486045,487045,488045,489045 SWX WD HYHQ Wimbledon RRH
    701046 S 480046,481046,482046,483046,484046,485046,486046,487046,488046,489046 SWX EH HYHQ Eastleigh RRH
    701047 T 480047,481047,482047,483047,484047,485047,486047,487047,488047,489047 SWX EH HYHQ RRH
    701048 S 480048,481048,482048,483048,484048,485048,486048,487048,488048,489048 SWX LM HYHQ Eastleigh RRH
    701049 S 480049,481049,482049,483049,484049,485049,486049,487049,488049,489049 SWX EH HYHQ RRH
    701050 S 480050,481050,482050,483050,484050,485050,486050,487050,488050,489050 SWX LM HYHQ Wimbledon RRH
    701051 S 480051,481051,482051,483051,484051,485051,486051,487051,488051,489051 SWX LM RRH
    701052 S 480052,481052,482052,483052,484052,485052,486052,487052,488052,489052 SWX LM RRH
    701053 S 480053,481053,483053,483053,484053,485053,486053,487053,488053,489053 EH RRH
    701054 480054,481054,483054,483054,484054,485054,486054,487054,488054,489054
    701055 480055,481055,483055,483055,484055,485055,486055,487055,488055,489055
    701056 480056,481056,483056,483056,484056,485056,486056,487056,488056,489056
    701057 S 480057,481057,483057,483057,484057,485057,486057,487057,488057,489057 Long Marston
    701058 480058,481058,483058,483058,484058,485058,486058,487058,488058,489058
    701059 480059,481059,483059,483059,484059,485059,486059,487059,488059,489059
    701060 S 480060,481060,483060,483060,484060,485060,486060,487060,488060,489060 Long Marston
    701/5

    Five Car units

    Power 2000kW
    Seats 274
    Formation DM-M-TLW-(P)M-DM
    Number Status Formation Livery Depot Pool Location Owner
    701501 C 480101,481101,482101,483101,484101 WD HYHQ RRH
    701502 S 480102,481102,482102,483102,484102 SWX ZD HYHQ Derby RRH
    701503 S 480103,481103,482103,483103,484103 SWX ZD HYHQ RRH
    701504 S 480104,481104,482104,483104,484104 SWX ZD HYHQ RRH
    701505 S 480105,481105,482105,483105,484105 SWX ZD HYHQ RRH
    701506 S 480106,481106,482106,483106,484106 SWX WS HYHQ RRH
    701507 S 480107,481107,482107,483107,484107 SWX WS HYHQ RRH
    701508 S 480108,481108,482108,483108,484108 SWX ZD HYHQ RRH
    701509 S 480109,481109,482109,483109,484109 SWX EH HYHQ Long Marston RRH
    701510 S 480110,481110,482110,483110,484110 SWX WS HYHQ RRH
    701511 S 480111,481111,482111,483111,484111 SWX WS HYHQ Long Marston RRH
    701512 S 480112,481112,482112,483112,484112 SWX EH HYHQ RRH
    701513 480113,481113,482113,483113,484113
    701514 480114,481114,482114,483114,484114
    701515 480115,481115,482115,483115,484115
    701516 480116,481116,482116,483116,484116
    701517 480117,481117,482117,483117,484117
    701518 S 480118,481118,482118,483118,484118 Eastleigh
    701519 480119,481119,482119,483119,484119
    701520 480120,481120,482120,483120,484120
    701521 480121,481121,482121,483121,484121
    701522 480122,481122,482122,483122,484122
    701523 480123,481123,482123,483123,484123
    701524 S 480124,481124,482124,483124,484124 Eastleigh
    701525 480125,481125,482125,483125,484125
    701526 480126,481126,482126,483126,484126
    701527 480127,481127,482127,483127,484127
    701528 480128,481128,482128,483128,484128
    701529 480129,481129,482129,483129,484129
    701530 480130,481130,482130,483130,484130
