    UK: Diesel Loco: 40

    Diesel Loco

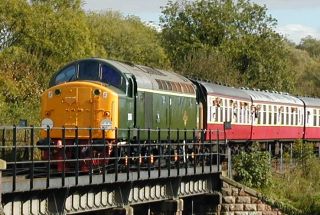

    Class 40 Whistler

    The British Rail Class 40 is a type of British railway diesel electric locomotive. A total of 200 were built by English Electric between 1958 and 1962. They were numbered D200-D399. They were, for a time, the pride of British Rail's early diesel fleet. However, despite their initial success, by the time the last examples were entering service they were already being replaced on some top-level duties by more powerful locomotives. As they were slowly relegated from express passenger uses, the type found work on secondary passenger and freight services where they worked for many years. The locomotives were commonly known as "Whistlers" because of the distinctive noise made by their turbochargers. The final locomotives ended regular service in 1985, although several examples are preserved.

    Length 21.18m
    Width 2.74m
    Height 3.91m
    Introduced 1958
    Withdrawn 1988
    Wheel Arrangement 1Co-Co1
    Builder English Electric
    Power 1490kW
    Weight 135t
    TE 231kN
    Engine EE 16SVT
    Transmission Diesel-Electric
    Max Speed 90 mph
    Driving Wheel Dia 1.143m
    Wheelbase 18.67m
    Number Altnumber Name Status Note Livery Depot Pool Base Owner
    40013 D213   Andania P LSL for Charter use GRN CL LSLO HNRC Worksop SHW UKP/40 UK70/40
    40145 D345   P GRN CS CFSL East Lancashire Railway 40 UKP/40 UK70/40
