    UK: Diesel Loco: 58

    Diesel Loco

    Ex BR type 5 Freight locomotive.

    The British Rail Class 58 is a class of Co-Co diesel locomotive designed for heavy freight. The narrow body with cabs at either end led to them being given the nickname "Bone" by rail enthusiasts.

    Their design represented a major departure from British conventions of construction; amongst the innovations was the adoption of the American practice of modularisation. The first locomotive of the class was delivered to British Rail during early 1983 and entered service that same year. Despite expectations of a lengthy service life, during 2002, EWS decided to withdraw all examples of the type after only 19 years in service. Subsequently, 32 were hired abroad – four to the Netherlands, eight to Spain and twenty to France. A few examples have also been scrapped or have entered preservation. Most examples in storage in France/Spain.

    Gauge 1435mm
    Builder BREL Doncaster
    Max Speed 80mph
    Introduced 1983-87
    Withdrawn 2002 (UK)
    Length 19130mm
    Width 2720mm
    Height 3910mm
    Weight 127.9t
    Engine Ruston Paxman 12RK3ACT
    Transmission Diesel Electric
    Power 2460kW
    TE 267kN
    Driving Wheel Dia 1120mm
    Wheelbase 14850mm
    Wheel Arrangement Co-Co

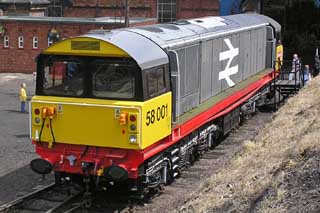

    Photo: John J Cordrey

    Number Altnumber Name Status Note Livery Depot Pool Location Base Owner In Service Withdrawn Scrapped
    58001 Railfreight** X ETF AZ WQCA Alizay, Rouen DBC 05/1983 08/10/1999 UK70/58
    58002 Daw Mill Colliery** W Stored - lifted from bogies For Sale MLF EH WNXX DB 05/1983 09/11/2000 UK70/58
    58003 Markham Colliery** X European Metal Recycling, Kingsbury 07/1983 29/11/1999 12/2013 UK70/58
    58004 X TSO AZ WQCA Alizay, Rouen DBC 09/1983 09/01/2002 UK70/58
    58005 Ironbridge Power Station** X ETF AZ WQCA Alizay, Rouen DBC 10/1983 13/10/2000 UK70/58
    58006 X ETF AZ WQCA Alizay, Rouen DBC 10/1983 11/01/2000 UK70/58
    58007 Drakelow Power Station** X TSO AZ WQCA Alizay, Rouen DBC 11/1983 19/01/2000 UK70/58
    58008 X MLF Raxstar, Eastleigh Works 12/1983 29/11/1999 05/2016 UK70/58
    58009 X TSO AZ WQCA Alizay, Rouen DBC 01/1984 16/01/2002 UK70/58
    58010 X TSO AZ WQCA Alizay, Rouen DBC 02/1984 08/12/1999 UK70/58
    58011 Worksop Depot** X TSO AZ WQCA Alizay, Rouen DBC 03/1984 07/12/1999 UK70/58
    58012 S MLG BL Battlefield Line PO 03/1984 05/12/1999 UK70/58 UKP/58
    58013 X ETF AZ WQCA Axiom Rail, Alizay, Rouen DBC 03/1984 26/04/2001 UK70/58
    58014 Didcot Power Station** X European Metal Recycling, Kingsbury 05/04/1984 17/11/2000 08/2010 UK70/58
    58015 L54   E/S CON SS WNZX ADIF - Monforte Del Cid TFG 09/1984 08/10/1999 UK70/58 SP/58{Diesel Loco}
    58016 S Awaiting restoration FER LR UKRS UKRL Leicester 58L 10/1984 05/08/2002 UK70/58 UKP/58
    58017 Eastleigh Depot** W Stored - lifted from bogies MLG EH WQDA DB 10/1984 30/04/1999 UK70/58
    58018 High Marnham Power Station** X TSO AZ Alizay, Rouen DBC 10/1984 07/12/1999 UK70/58
    58019 Shirebrook Colliery** X European Metal Recycling, Kingsbury 11/1984 07/04/2001 10/2010 UK70/58
    58020 L43   Caballero Ferroviario E/S CON SS WNZX ADIF - Monforte Del Cid TFG 11/1984 02/09/2002 UK70/58 SP/58{Diesel Loco}
    58021 Hither Green Depot** X TSO AZ WQCA Alizay, Rouen DBC 12/1984 03/08/2002 UK70/58
    58022 10000   R Donor Loco for Project Icon. Being rebuilt into LMS 10000 MLG PR Ecclesbourne Valley Railway PRE 12/1984 11/03/2002 UK70/58 UKP/58
    58023 Leicester Depot A MLF HQ MBDL Severn Valley Railway PO 12/1984 24/07/1999 UK70/58 UKP/58
    58024 L42   E/S CON SS WNZX ADIF - Monforte Del Cid TFG 12/1984 02/09/2002 UK70/58 SP/58{Diesel Loco}
    58025 L41   E/S CON SS WQCA ADIF - Albacete DBC 01/1985 05/08/2002 UK70/58 SP/58{Diesel Loco}
    58026 X TSO AZ WQCA Alizay, Rouen DBC 03/1985 16/01/2002 UK70/58
    58027 L52   E/S CON SS WQCA ADIF - Albacete DBC 03/1985 05/09/1999 UK70/58 SP/58{Diesel Loco}
    58028 X European Metal Recycling, Kingsbury 03/1985 29/10/1999 08/2010 UK70/58
    58029 L44   E/S CON SS WNZX ADIF - Monforte Del Cid TFG 03/1985 25/06/2002 UK70/58 SP/58{Diesel Loco}
    58030 L46   E/S CON SS WNZX ADIF - Monforte Del Cid TFG 06/1985 01/08/2002 UK70/58 SP/58{Diesel Loco}
    58031 L45   Caballero Ferroviario E/S CON SS WNZX ADIF - Monforte Del Cid TFG 09/1985 06/04/2002 UK70/58 SP/58{Diesel Loco}
    58032 Thoresby Colliery** X ETF AZ WQCA Alizay, Rouen DBC 09/1985 12/01/2000 UK70/58
    58033 X TSO AZ WQCA Alizay, Rouen DBC 09/1985 31/08/2002 UK70/58
    58034 Bassetlaw** X TSO AZ WQCA Alizay, Rouen DBC 11/1985 18/08/1999 UK70/58
    58035 X TSO AZ WQCA Alizay, Rouen DBC 01/1986 30/06/1999 UK70/58
    58036 X ETF AZ WQCA Alizay, Rouen DBC 02/1986 10/03/2000 UK70/58
    58037 Worksop Depot** W Stored - lifted from bogies. EWS EH WNTS DB 02/1986 08/04/2002 UK70/58
    58038 X ETF AZ WQCA Alizay, Rouen DBC 02/1986 04/12/1999 UK70/58
    58039 Rugeley Power Station** X ETF AZ WQCA Alizay, Rouen DBC 03/1986 30/12/1999 UK70/58
    58040 Cottam Power Station** X TSO AZ WQCA Alizay, Rouen DBC 03/1986 07/12/1999 UK70/58
    58041 L36   Ratcliffe Power Station** E/S CON SS WNZX ADIF - Albacete TFG 03/1986 08/07/2002 UK70/58 SP/58{Diesel Loco}
    58042 Petrolea** X ETF AZ WQCA Alizay, Rouen DBC 05/1986 13/04/2002 UK70/58
    58043 L37   Knottingley** E/S CON SS WNZX ADIF - Monforte Del Cid TFG 07/1986 01/08/2002 UK70/58 SP/58{Diesel Loco}
    58044 Oxcroft Opencast** X AZ WQCA Woippy, Metz DBC 08/1986 24/07/1999 UK70/58
    58045 X European Metal Recycling, Kingsbury 09/1986 31/08/2002 10/2010 UK70/58
    58046 Asfordby Mine** S TSO AZ WQCA Alizay, Rouen DBC 10/1986 13/01/2000 UK70/58
    58047 L51   Manton Colliery** E/S CON SS WNZX ADIF - Monforte Del Cid TFG 10/1986 04/09/2002 UK70/58 SP/58{Diesel Loco}
    58048 Coventry Colliery** P EWS BL Battlefield Line PRE 11/1986 19/01/2000 UK70/58 UKP/58
    58049 Littleton Colliery** X ETF AZ WQCA Alizay, Rouen DBC 12/1986 29/05/2002 UK70/58
    58050 L53   Toton Traction Depot** E/S CON SS WQCA ADIF - Albacete DBC 03/1987 05/08/2002 UK70/58 SP/58{Diesel Loco}
