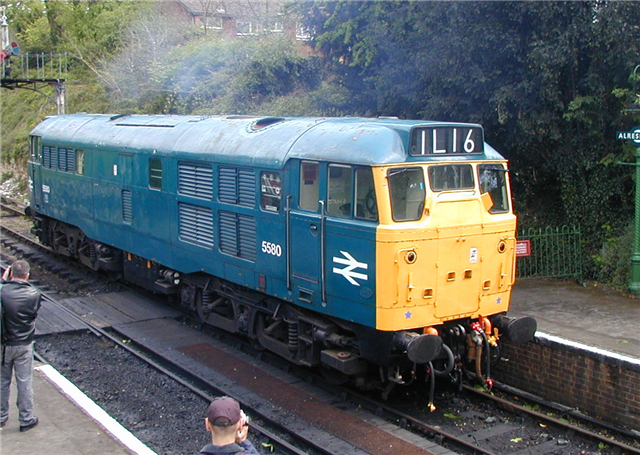

    UK: Diesel Loco: 31

    Diesel Loco

    Ex BR mixed traffic type 2.

    The British Rail Class 31 diesel locomotives, also known as the Brush Type 2 and previously as Class 30, were built by Brush Traction from 1957-62. They were numbered in two series, D5500-D5699 and D5800-D5862. Construction of the first locomotive was completed in the final week of September 1957, and the handing-over took place on 31 October. The first Class 31 entered service in November 1957, after the launch of the Class 20 locomotive and was one of the Pilot Scheme locomotives ordered by British Railways to replace steam traction.

    Now in private use or preservation.

    Gauge 1435mm
    Builder Brush Traction
    Max Speed 80/90mph
    Introduced 1957-62
    Length 17300mm
    Width 2670mm
    Height 3840mm
    Weight 108.4-115t
    Engine English Electric 12SVT
    Transmission Diesel Electric
    Power 1100kW
    Driving Wheel Dia 1092mm
    Wheelbase 13060mm
    Wheel Arrangement A1A-A1A
    Withdrawn 2017
    TE 35900lbf
    Number Altnumber Name Status Note Livery Depot Pool Location Base Owner In Service Withdrawn Scrapped
    31018 D5500   P Converted from class 30: 15/03/1969. SBB YM MBDL Locomotion - NRM Shildon NRM 10/10/1957 10/07/1976 UK70/31 UKP/31
    31105 D5523   Bescot TMD**,Radio Caroline P Converted from class 30: 02/1967. BRB PR QADD Mangapps Railway Museum PRE 19/03/1959 01/05/1997 UK70/31 UKP/31
    31106 D5524   Spalding Town, The Blackcountryman** S Converted from class 30: 06/1967 Pending Scrapping BRB RVLO EMR, Kingsbury HAH 26/03/1959 01/11/1995 UK70/31 UKP/31
    31108 D5526   P Converted from class 30: 25/05/1968. RFA SK MBDL Great Central Railway PRE 16/04/1959 27/09/1991 UK70/31 UKP/31
    31110 D5528   TRACTION magazine** X Converted from class 30: 15/03/1969. OC T. J. Thomson & Son Ltd., Stockton 30/04/1959 31/05/2006 04/2007 UK70/31
    31112 D5530   X Converted from class 30: 12/1968. BS T. J. Thomson & Son Ltd., Stockton 14/05/1959 01/05/1997 11/2003 UK70/31
    31119 D5537   P Converted from class 30: 07/1967. BRB PR Embsay & Bolton Abbey Steam Railway PRE 25/06/1959 01/09/1995 UK70/31 UKP/31
    31123 D5541   X Converted from class 30: 03/1965. BS C. F. Booth, Rotherham 23/07/1959 16/03/1992 02/2006 UK70/31
    31128 D5546   CHARYBDIS** P Converted from class 30: 08/1965. SBB BU NRLO North Yorkshire Moors Railway NEM 27/08/1959 UK70/31 UKP/31
    31130 D5548   Calder Hall Power Station P Converted from class 30: 02/1967. Name not currently carried RFA PR Avon Valley Railway PRE 03/09/1959 01/08/1997 UK70/31 UKP/31
    31144 D5562   Keighley and Worth Valley Railway** Converted from class 30: 12/03/1966. 05/11/1959 UK70/31
    31190 D5613   GRYPHON** P Converted from class 30: 01/1966. GOL BU Nemesis Rail, Burton-on-Trent 05/05/1960 UK70/31 UKP/31
    31206 D5630   P Converted from class 30: 01/1966. CIV PR Rushden Transport Museum N31 07/07/1960 30/11/2006 UK70/31 UKP/31
    31210 D5634   P Converted from class 30: 04/1968. RFA PR Great Central Railway (Nottingham) Ltd PRE 21/07/1960 01/02/1992 UK70/31 UKP/31
    31233 D5660   P Converted from class 30: 02/1967. NRL PR QADD Mangapps Railway Museum PRE 20/10/1960 UK70/31 UKP/31
    31235 D5662   P Converted from class 30: 30/11/1966. BRB PR Great Central Railway (Nottingham) Ltd PRE 27/10/1960 26/05/2000 UK70/31 UKP/31
    31255 D5683   P Converted from class 30: 12/03/1966. EWS PR MBDL Mid Norfolk Railway PRE 19/01/1961 UK70/31 UKP/31
    31270 D5800   Athena P Converted from class 30: 07/1966. RRR DI Didcot Railway Centre PRE 01/06/1961 26/05/2000 UK70/31 UKP/31
    31271 D5801   Stratford 1840 - 2001** P On loan from Midland Railway. Converted from class 30: 03/1967. BRT PR MBDL Llangollen Railway PRE 08/06/1961 01/05/1997 UK70/31 UKP/31
    31273 D5803   X Converted from class 30: 08/1967. BS C. F. Booth, Rotherham 22/06/1961 12/04/2001 01/05/2004 UK70/31
    31285 D5817   S Converted from class 30: 06/1967. NRL WO HNRL Weardale Railway HNR 05/10/1961 UK70/31 UKP/31
    31289 D5821   PHEONIX** P On long term loan from the Rushden Transport Museum. Converted from class 30: 08/1967. BRB PR Northampton & Lamport Railway PRE 02/11/1961 01/03/1992 UK70/31 UKP/31
    31301 D5834   X Converted from class 30: 10/1966. SP C. F. Booth, Rotherham 01/03/1962 01/05/1995 01/02/2011 UK70/31
    31407 D5640   31507   X Converted from class 30: 24/09/1966. BS Ron Hull Jr., Rotherham 18/08/1960 31/05/2006 10/2006 UK70/31
    31410 D5669   Granada Telethon** X Converted from class 30: 12/1968. C. F. Booth, Rotherham 24/11/1960 01/05/2014 10/2014 UK70/31
    31411 D5691   31511   'Our Eli' X Converted from class 30: 05/1966. BS Ron Hull Jr., Rotherham 16/03/1961 30/11/2005 11/2005 UK70/31
    31412 D5692   31512   X Converted from class 30: 05/1967. BS Ron Hull Jr., Rotherham 23/03/1961 31/05/2006 10/2006 UK70/31
    31414 D5814   31514   P Converted from class 30: 06/1967. CIV SK MBDL Midland Railway - Butterley PRE 14/09/1961 01/02/1999 UK70/31 UKP/31
    31417 D5856   X Converted from class 30: 01/1966. BS Ron Hull Jr., Rotherham 30/08/1962 30/11/2005 01/2006 UK70/31 UKP/31
    31418 D5522   Boadicea** P Converted from class 30: 18/11/1967. BRB SK Midland Railway - Butterley PRE 12/03/1959 06/10/1995 UK70/31 UKP/31
    31420 31172   D5591   X Converted from class 30: 13/11/1965. OC WNXX C. F. Booth, Rotherham EWS 18/02/1960 01/01/2001 22/07/2007 UK70/31
    31421 31140   D5558   Wigan Pier** X Converted from class 30: 02/1968. HQ WNZX European Metal Recycling, Kingsbury EWS 22/10/1959 01/03/1997 13/08/2007 UK70/31
    31422 31522   31310   D5844   X Converted from class 30: 11/09/1965. DF HTLX C. F. Booth, Rotherham BAR 07/06/1962 07/10/2014 UK70/31
    31423 31197   D5621   Jerome K. Jerome** X Converted from class 30: 03/1968. T. J. Thomson & Son Ltd., Stockton 02/06/1960 01/09/1996 09/2009 UK70/31
    31430 31530   31265   D5695   Sister Dora** P Converted from class 30: 23/11/1968. BRB PR Spa Valley Railway PRE 20/04/1961 UK70/31 UKP/31
    31437 31537   31182   D5603   X Converted from class 30: 04/1967. C. F. Booth, Rotherham 31/03/1960 07/2011 UK70/31
    31438 31538   31139   D5557   P Converted from class 30: 03/1965. BRB PR Epping & Ongar Railway PRE 15/10/1959 01/09/1995 UK70/31 UKP/31
    31439 31239   D5666   North Yorkshire Moors Railway** X Converted from class 30: 10/1967. BRB LM NRLS C. F. Booth, Rotherham NEM 10/11/1960 31/03/2011 UK70/31
    31450 31133   D5551   X Converted from class 30: 10/1967. BRB BS WNXX EWS, Wigan CRDC EWS 10/09/1959 01/12/1998 30/04/1999 UK70/31
    31452 31552   31279   D5809   MINOTAUR** P Converted from class 30: 07/1967. ICM YA ERSL Eastern Rail Services, Yarmouth BAR 27/07/1961 UK70/31 UKP/31
    31454 31554   31228   D5654   Immingham**, The Heart of Wessex** P Converted from class 30: 18/11/1967. ICS PR NRLS Nemesis Rail, Burton-on-Trent 29/09/1960 UK70/31 UKP/31
    31459 31256   D5684   CERBERUS S Converted from class 30: 04/1965. BRB WO RVLO Weardale Railway HNR 26/01/1961 UK70/31 UKP/31
    31460 31266   D5696   X Converted from class 30: 11/1967. BRB BH SDXL T. J. Thomson & Son Ltd., Stockton FR 04/05/1961 01/12/1992 31/12/2006 UK70/31
    31461 31129   D5547   S Converted from class 30: 01/1968. CIV BU NRLO Nemesis Rail, Burton-on-Trent NEM 27/08/1959 UK70/31
    31465 31565   31213   D5637   S Converted from class 30: 08/1967. NRL WO HNRL Weardale Railway HNR 28/07/1960 UK70/31 UKP/31
    31466 31115   D5533   P Converted from class 30: 04/1968. EWS PR MBDL North Yorkshire Moors Railway PRE 04/06/1959 01/02/2001 UK70/31 UKP/31
    31467 31216   D5641   X Converted from class 30: 03/1968. BRB WNZX European Metal Recycling, Kingsbury 18/08/1960 01/03/1998 31/08/2008 UK70/31
    31468 31568   31321   D5855   The Enginemen's Fund **, Hydra X Converted from class 30: 08/1965. Weardale Railway, Wolsingham 30/08/1962 28/06/2018 UK70/31
    31556 31456   31291   D5823   X Converted from class 30: 06/1967. CIV WNZX 16/11/1961 14/01/2010 UK70/31
    31601 31186   D5609   Bletchley Park 'Station X'**, The Mayor of Casterbridge**, Gauge "0" Guild 1956-2006**, Devon Diesel Society P Northamptonshire Class 31 Group. Converted from class 30: 05/1966. DCR PR HTLX Northampton & Lamport Railway PRE 21/04/1960 23/03/1999 UK70/31 UKP/31
    31602 31191   D5614   Chimaera**, Driver Dave Green - 19B X Converted from class 30: 05/1966. Weardale Railway, Wolsingham 12/05/1960 26/06/2018 UK70/31
    5518 D5518   31101   P Converted from class 30: 08/1967. BRB PR Avon Valley Railway PRE 16/10/1958 11/01/1993 UK70/31 UKP/31
    5580 D5580   31162   P Converted from class 30: 11/1967. SBB SK MBDL Midland Railway - Butterley PRE 14/01/1960 01/05/1992 UK70/31 UKP/31
    D5600 31179   31435   Newton Heath TMD P Dales Diesel Group. Converted from class 30: 03/1967. GRN PR Embsay & Bolton Abbey Steam Railway PRE 24/03/1960 01/11/1995 UK70/31 UKP/31
    D5627 31203   Steve Organ GM P Converted from class 30: 07/1966. GRN PR Pontypool & Blaenavon Railway PRE 23/06/1960 01/07/2000 UK70/31 UKP/31
    D5631 31207   O Converted from class 30: 10/1966. GRN PR North Norfolk Railway MGN 07/07/1960 02/2001 UK70/31 UKP/31
    D5830 31563   31297   31463   P Converted from class 30: 10/1967. GOL PR Great Central Railway (Nottingham) Ltd PRE 11/01/1962 01/02/1998 UK70/31 UKP/31
    D5862 31327   Phillips-Imperial** P Converted from class 30: 03/1966. GRN PR Strathspey Railway PRE 25/10/1962 01/09/1995 UK70/31 UKP/31
    97205 D5581   31163   P Converted from class 30: 01/1966. PR Nemesis Rail, Burton-on-Trent 14/01/1960 19/01/1999 UK70/31 UKP/31
