    UK: Electric Loco: 90

    Electric Loco

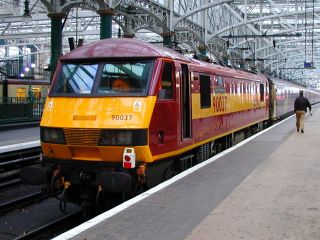

    BR Class 90

    The British Rail Class 90 electric locomotives were built for mixed-traffic duties, operating from 25 kV AC overhead lines and produce 5,000 bhp. They weigh 84.5 tonnes and can typically achieve a top speed of 110 mph.

    The Class 90 is a modernised derivative of the preceding Class 87 locomotive, having been originally designated as the Class 87/2. During the 1980s, British Rail Engineering Limited had submitted an offer to build 25 examples to replace various aging electric locomotives, including the Class 81, Class 82, Class 83, Class 84 and Class 85. It was selected over numerous rival proposals, including the InterCity 225 and the Class 89; the type was manufactured by BREL at Crewe Works between 1987 and 1990.

    The Class 90 was introduced to service during the closing years of British Rail, being used for both passenger services and freight trains alike. Following the privatisation of British Rail, the type has served with various operators, including Greater Anglia, Virgin Trains and GNER; it was, however, displaced largely from regular passenger services during the 2000s and 2010s. Presently, Class 90 locomotives are usually employed on heavy freight trains and occasional charter services.

    System 25 kV 50 Hz AC Overhead
    Length 18.8m
    Width 2.74m
    Height 3.969m
    Introduced 1987-90
    Wheel Arrangement Bo-Bo
    Builder BREL Crewe
    Power 5860kW
    Weight 84.5 tonnes
    TE 258kN
    Max Speed 110 mph
    Driving Wheel Dia 1.15m
    Wheelbase 13.26m
    Number Altnumber Name Status Note Livery Depot Pool Location Base Owner In Service Scrapped
    90001 Crown Point**, Royal Scot ICS CL LSLO Locomotive Services, Crewe LSL 04/04/1988 UK70/90 UKP/90
    90002 Eastern Daily Press 1870-2010 SERVING NORFOLK FOR 140 YEARS**,Wolf of Badenoch ICS CL LSLO Locomotive Services, Crewe LSL 04/04/1988 UK70/90 UKP/90
    90003 Raedwald of East Anglia** GEN CB DFLC FLT 04/04/1988 UK70/90
    90004 City of Chelmsford** GEN CB DFLC FLT 04/04/1988 UK70/90
    90005 Vice-Admiral Lord Nelson** GEN CB DFLC FLT 30/04/1988 UK70/90
    90006 Modern Railways Magazine / Roger Ford GEN CB DFLC FLT 30/04/1988 UK70/90
    90007 Sir John Betjeman** GEN CB DFLC FLT 30/04/1988 UK70/90
    90008 The East Anglian** GEN CB DFLC FLT 16/05/1988 UK70/90
    90009 Diamond Jubilee** GEN CB DFLC FLT 31/05/1988 UK70/90
    90010 275 Railway Squadron (Volunteers)** S GEN CB DHLT FLT 30/06/1988 UK70/90
    90011 Let's Go - East of England**, East Anglian Daily Times Suffolk and Proud** GEN CB DFLC FLT 23/09/1988 UK70/90
    90012 Royal Anglian Regiment** GEN CB DFLC FLT 25/11/1988 UK70/90
    90013 The Evening Star** GEN CB DFLC FLT 23/11/1988 UK70/90
    90014 Norfolk and Norwich Festival**,Over the Rainbow GEN CB DFLC FLT 28/10/1988 UK70/90
    90015 Colchester Castle** GEN CB DFLC FLT 23/11/1988 UK70/90
    90016 GEN FE DFLC FLT 08/12/1988 UK70/90
    90017 Rail express systems Quality Assured** X EWS CE WQCA DBC 20/12/1988 08/2024 UK70/90
    90018 The Pride of Bellshill S DBC CB DFLC FLT 22/12/1988 UK70/90
    90019 Penny Black**Multimodal S DBC CE WQDA DBC 05/01/1989 UK70/90
    90020 Collingwood** S GTO CE WQDA DBC 31/01/1989 UK70/90
    90021 90221   Donald Malcolm S MAL2 CE WQDA DBC 31/01/1989 UK70/90
    90022 90222   Freightconnection X scrapped RFE CE WQCA DBC 14/02/1989 07/2024 UK70/90
    90023 90223   X EWS CE WQCA Sandbach Commercial Dismantlers DBC 24/02/1989 08/2024 UK70/90
    90024 90224   S MAL CE WQDA DBC 10/03/1989 UK70/90
    90025 90225   90125   S About to be scrapped RFD CE WQCA EMR, Alexandra Dock DBC 17/03/1989 UK70/90
    90026 90126   Crewe International Electric Maintenance Depot** S GTO CE WQDA DBC 20/03/1989 UK70/90
    90027 90227   90127   Allerton T&RS Depot Quality Approved X scrapped RFD CE WQCA DBC 1989 07/2024 UK70/90
    90028 90128   Hertfordshire Rail Tours**, Sir William McAlpine S DBC CE WQDA DBC 1989 UK70/90
    90029 90129   The Institution of Civil S GTO CE WQDA DBC 1989 UK70/90
    90030 90130   Crewe Locomotive Works** S About to be scrapped EWS CE WQCA Sandbach Commercial Dismantlers DBC 1989 UK70/90
    90031 90131   The Railway Children S About to be scrapped EWS CE WQCA EMR, Alexandra Dock DBC 14/09/1989 UK70/90
    90032 90132   Cerestar** X EWS CE WQCA Sandbach Commercial Dismantlers DBC 17/09/1989 08/2024 UK70/90
    90033 90233   90133   S About to be scrapped RFI CE WQCA Sandbach Commercial Dismantlers DBC 21/09/1989 UK70/90
    90034 90134   S DB Branded DRU CE WQDA DBC 27/09/1989 UK70/90
    90035 90135   Crewe Basford Hall** S DBC CE WQDA DBC 29/09/1989 UK70/90
    90036 90136   Driver Jack Mills S DBC CE WQDA DBC 25/04/1990 UK70/90
    90037 90137   Ford Spirit of Dagenham**,Christine S DBC CE WQDA DBC 28/04/1990 UK70/90
    90038 90238   90138   S About to be scrapped RFI CE WQCA Sandbach Commercial Dismantlers DBC 30/04/1990 UK70/90
    90039 90239   90139   The Chartered Institute of Logistics and Transport S EWS CE WQDA DBC 30/04/1990 UK70/90
    90040 90140   The Railway Mission** S DBC CB DFLC FLT 01/05/1990 UK70/90
    90041 90141   Pete Waterman OBE GEN CB DFLC FLT 04/05/1990 UK70/90
    90042 90142   FLP CB DFLC FLT 14/05/1990 UK70/90
    90043 90143   Freightliner Coatbridge** FLP CB DFLC FLT 14/05/1990 UK70/90
    90044 90144   GEN CB DFLC FLT 30/06/1990 UK70/90
    90045 90145   FLP CB DFLC FLT 30/06/1990 UK70/90
    90046 90146   FLG CB DFLC FLT 30/06/1990 UK70/90
    90047 90147   GEN CB DFLC FLT 27/07/1990 UK70/90
    90048 90148   GEN CB DFLC FLT 27/07/1990 UK70/90
    90049 90149   FLP CB DFLC FLT 26/10/1990 UK70/90
    90050 90150   R Undergoing cosmetic restoration FLF DHLT Crewe Heritage Centre 14/11/1990 UK70/90 UKP/90
