    UK: Diesel Unit: 168

    Diesel Unit

    Class 168 Clubman

    The Class 168 Clubman is a British diesel-hydraulic multiple unit passenger train used on Chiltern Line services between London Marylebone and the West Midlands. The trains were built by Adtranz at the Derby Litchurch Lane Works in several batches from 1998.

    The first batch was classified 168/0 under TOPS and resembled the Class 165 units previously built by BREL York. The Networker-design cab was an interim solution pending the design of a completely new cab for further Turbostar batches. Subsequent builds, subclassed as 168/1 and 168/2, were constructed at the same time as the Class 170 Turbostar and thus are part of the Turbostar family of trains.

    Gauge 1435mm
    Builder Adtranz, Bombardier
    Max Speed 100mph
    Introduced 1998-2004
    Length 23620mm x3 or x4
    Width 2690mm
    Height 3770mm
    Engine MTU 6R 183TD x3 or x4
    Transmission Voith Hydraulic T211rzze
    Power 315kW per car
    Seats 3-car: 204 / 4-car: 272

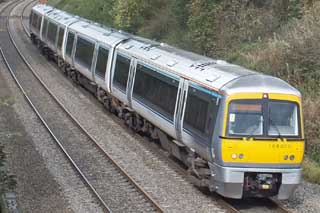

    Photo: John J Cordrey

    Submit Photo

    Your photo will be submitted to the editors for approval.

    • You must ensure you have permission of the copyright owner to submit this photo for SpotLog
    • Please do not submit photo's taken from Wikipedia or another website unless you have explicit permisson to do so
    • Putting a date in the photo caption is often helpful
    • Upload must be in JPEG format
    Number Alt number Name Status Pool Depot Note
    168001 Adrian Shooter CBE HOHQ AL 58151 was originally allocated no. 58143. 58451 carried no. 58656 between 2000 and 2002.
    168002 HOHQ AL 58452 carried no. 58657 between 2000 and 2002.
    168003 HOHQ AL 58453 carried no. 58658 between 2000 and 2002.
    168004 HOHQ AL 58454 carried no. 58659 between 2000 and 2002.
    168005 HOHQ AL 58455 carried no. 58660 between 2000 and 2002.
    168106 HOHQ AL
    168107 HOHQ AL
    168108 HOHQ AL
    168109 HOHQ AL
    168110 HOHQ AL
    168111 HOHQ AL 58461 was originally allocated no. 58661.
    168112 HOHQ AL 58462 was originally allocated no. 58662.
    168113 HOHQ AL 58463 was originally allocated no. 58663.
    168214 HOHQ AL
    168215 HOHQ AL
    168216 HOHQ AL
    168217 HOHQ AL
    168218 HOHQ AL
    168219 HOHQ AL
    168321 170301 HOHQ AL Converted from 170301.
    168322 170302 HOHQ AL Converted from 170302.
    168323 170303 HOHQ AL Converted from 170303.
    168324 170304 HOHQ AL Converted from 170304.
    168325 170305 HOHQ AL Converted from 170305.
    168326 170306 HOHQ AL Converted from 170306.
    168327 170307 HOHQ AL Converted from 170307.
    168328 170308 HOHQ AL Converted from 170308.
    168329 170309,170399 HOHQ AL Converted from 170309.
