    UK: Diesel Unit: 143

    Diesel Unit

    Class 143 Pacer

    The British Rail Class 143 is a diesel multiple unit railbus, part of the Pacer family of passenger trains introduced between 1985 and 1986.

    During the 1980s, British Rail (BR) was interested in replacing its first-generation diesel multiple units, particularly in the use of railbuses to service its lightly used branch lines. It was decided to develop such a vehicle with a high level of commonality with the widely used Leyland National bus, leading to its modular design serving as the basis for the design. Several single and two-car prototypes were constructed and evaluated, leading to an initial production batch by British Leyland, designated as the Class 141 units. BR, seeking to procure improved derivatives of the Class 141, placed an order with the manufacturers Hunslet-Barclay and Walter Alexander to construct its own variant, the Class 143.

    Entering operational service during the mid-1980s, the Class 143 embodied several advances over the original model in terms of ride quality and reliability. During its operating lives, the type was tasked with various passenger services across the United Kingdom; being initially operated in the North-East of England, all units were subsequently transferred to other regions, including Wales and South-West England.

    Introduced 1985
    Withdrawn 2021
    Wheel Arrangement 1-A+A-1
    Builder Alexander/Barclay
    Engine Leyland TL11 / Cummings LTA10-R
    Max Speed 75mph
    Length 15.45m
    Width 2.70m
    Height 3.52m
    Power 165kW
    Weight 24t
    Transmission Hydraulic, Voith T211r
    Wheelbase 9m

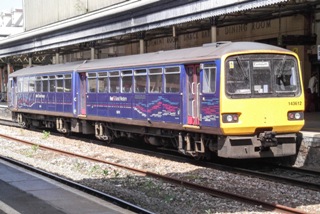

    Photo: Paul Furse

    Submit Photo

    Your photo will be submitted to the editors for approval.

    • You must ensure you have permission of the copyright owner to submit this photo for SpotLog
    • Please do not submit photo's taken from Wikipedia or another website unless you have explicit permisson to do so
    • Putting a date in the photo caption is often helpful
    • Upload must be in JPEG format
    Number Altnumber Name Status Formation Note Livery Depot Pool Location Base Owner Scrapped
    143601 143001   P 55642,55667 ` ATT PR Tanat Valley Railway UKP/143 UK70/143
    143602 143002   P 55651,55668 ATT Nene Valley Railway UKP/143 UK70/143
    143603 143003   P 55658,55669 GWU Vale of Berkeley Railway UKP/143 UK70/143
    143604 143004   X 55645,55670 Sims Metals, Newport UK70/143
    143605 143005   Crimestoppers** X 55646,55671 Sims Metals, Newport UK70/143
    143606 143006   P 55647,55672 ATT Llanelli & Mynydd Mawr Railway UKP/143 UK70/143
    143607 143007   P 55648,55673 ATT Llanelli & Mynydd Mawr Railway UKP/143 UK70/143
    143608 143008   X 55649,55674 Sims Metals, Newport UK70/143
    143609 143009   SIR TOM JONES** X 55650,55675 Sims Metals, Newport UK70/143
    143610 143010   X 55643,55676 Sims Metals, Newport UK70/143
    143611 143011   X 55652,55677 Sims Metals, Newport UK70/143
    143612 143012   P 55653,55678 GWU Llanelli & Mynydd Mawr Railway UKP/143 UK70/143
    143613 143013   X 55654,55679 Cardiff Canton 2006 UK70/143
    143614 143014   X 55655,55680 Sims Metals, Newport UK70/143
    143615 143015   X 55656,55681 Cardiff Canton 2006 UK70/143
    143616 143016   P 55657,55682 ATT PR Tanat Valley Railway UKP/143 UK70/143
    143617 143017   FOUNDER MEMBER & CHAIRMAN ROD GARDNER,BEWICK’S SWAN** P 55644,55683 GWU Tarka Valley Railway UKP/143 UK70/143
    143618 143018   P 55659,55684 GWU Plym Valley Railway UKP/143 UK70/143
    143619 143019   P 55660,55685 GWU Tanat Valley Railway UKP/143 UK70/143
    143620 143320   143020   X 55661,55686 Sims Metals, Newport UK70/143
    143621 143321   143021   X 55662,55687 Sims Metals, Newport UK70/143
    143622 143322   143022   P 55663,55688 ATT Llanelli Goods Shed Trust UKP/143 UK70/143
    143623 143323   143023   P 55664,55689 RRR PR Wensleydale Railway UKP/143 UK70/143
    143624 143324   143024   X 55665,55690 Sims Metals, Newport UK70/143
    143625 143325   143025   Valleys Kids** P 55666,55691 THE START OF A NEW JOURNEY ATT LE HLHQ Keighley & Worth Valley Railway PTR UKP/143 UK70/143
