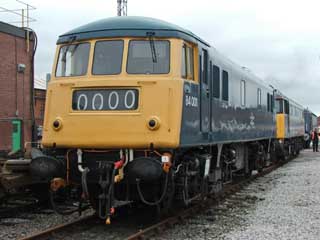

    UK70: Electric Loco: 84

    Electric Loco

    Gauge 1435mm
    Builder NBL
    Max Speed 100mph
    System 25kV AC overhead
    Introduced 1960-61
    Withdrawn 1980
    Length 17530mm
    Weight 77.8t
    Power 2300kW
    TE 220kN
    Driving Wheel Dia 1219mm
    Wheel Arrangement Bo-Bo
    Submit Photo

    Your photo will be submitted to the editors for approval.

    • You must ensure you have permission of the copyright owner to submit this photo for SpotLog
    • Please do not submit photo's taken from Wikipedia or another website unless you have explicit permisson to do so
    • Putting a date in the photo caption is often helpful
    • Upload must be in JPEG format
    Number Alt number Name Status Pool Depot Note
    84001 89502,E3036 P ACXX BO
    84002 E3037 X CE WDN:09/80 | Scrapped Texas Metals Hyde (12/82)
    84003 E3038 X CE WDN:11/80 | Scrapped Vic Berry Leicester (12/86)
    84004 E3039 X CE WDN:11/77 | Scrapped Bird Group Long Marston (03/85)
    84005 E3040 X CE WDN:04/77 | Scrapped Bird Group Long Marston (03/85)
    84006 E3041 X CE WDN:01/78 | Scrapped J Cashmore at Crewe South Yard (10/79)
    84007 E3042 X CE WDN:04/78 | Scrapped J Cashmore at Crewe South Yard (10/79)
    84008 E3043 X CE WDN:10/79 | Scrapped A Hampton at Crewe Works (11/88)
    84009 E3044,ADB968021 X CE WDN:08/78 | Scrapped Gwent Demolition Margam (12/95)
    84010 E3045 X CE WDN:11/80 | Scrapped Texas Metals Hyde (12/82)
