    CZ: Electric Locomotive: 363

    Electric Loco

    ES499.1 [69E]


    Builder Škoda
    Max Speed 120 km/h
    System 3000 V DC, 25 kV 50 Hz AC
    Introduced 1980-1987
    Length 16.80 m
    Weight 87 t
    Power 3060 kW
    Wheel Arrangement Bo-Bo
    Width 2.94 m
    Height 4.625 m
    TE 300 kN
    Driving Wheel Dia 1250 mm

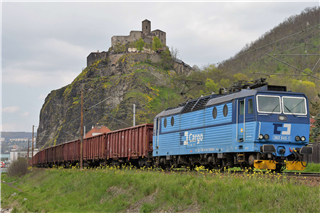

    363 043 - Ústí nad Labem-Střekov

    Photo: © John Mulrine

    Submit Photo

    Your photo will be submitted to the editors for approval.

    • You must ensure you have permission of the copyright owner to submit this photo for SpotLog
    • Please do not submit photo's taken from Wikipedia or another website unless you have explicit permisson to do so
    • Putting a date in the photo caption is often helpful
    • Upload must be in JPEG format
    Number Status EVN Note Livery Depot Owner
    363 003‑5 A 91 54 7363 003-5 CDCB OST CZ-ČDC
    363 004‑3 A 91 54 7363 004-3 CDCB OST CZ-ČDC
    363 005‑0 A 91 54 7363 005-0 CDCB OST CZ-ČDC
    363 006‑8 A 91 54 7363 006-8 CDCB OST CZ-ČDC
    363 007‑6 A 91 54 7363 007-6 CDCB OST CZ-ČDC
    363 008‑4 A 91 54 7363 008-4 CDCB OST CZ-ČDC
    363 009‑2 A 91 54 7363 009-2 CDCB OST CZ-ČDC
    363 010‑0 A 91 54 7363 010-0 CDCB OST CZ-ČDC
    363 011‑8 A 91 54 7363 011-8 CDCB OST CZ-ČDC
    363 012‑6 A 91 54 7363 012-6 CDCB OST CZ-ČDC
    363 013‑4 A 91 54 7363 013-4 CDCB OST CZ-ČDC
    363 014‑2 A 91 54 7363 014-2 CDCB OST CZ-ČDC
    363 015‑9 A 91 54 7363 015-9 carries 'www.cdcargo.cz' branded blue livery ADV OST CZ-ČDC
    363 016‑7 A 91 54 7363 016-7 CDCB OST CZ-ČDC
    363 018‑3 A 91 54 7363 018-3 CDCB OST CZ-ČDC
    363 020‑9 A 91 54 7363 020-9 CDCB OST CZ-ČDC
    363 022‑5 A 91 54 7363 022-5 CDCB OST CZ-ČDC
    363 025‑8 A 91 54 7363 025-8 CDCB OST CZ-ČDC
    363 026‑6 A 91 54 7363 026-6 CDCB OST CZ-ČDC
    363 028‑2 A 91 54 7363 028-2 CDCB OST CZ-ČDC
    363 029‑0 A 91 54 7363 029-0 CDCB OST CZ-ČDC
    363 031‑6 A 91 54 7363 031-6 CDCB OST CZ-ČDC
    363 032‑4 A 91 54 7363 032-4 CDCB OST CZ-ČDC
    363 034‑0 A 91 54 7363 034-0 CDCB OST CZ-ČDC
    363 035‑7 A 91 54 7363 035-7 CDCB OST CZ-ČDC
    363 036‑5 A 91 54 7363 036-5 CDCB OST CZ-ČDC
    363 037‑3 A 91 54 7363 037-3 CDCB OST CZ-ČDC
    363 038‑1 A 91 54 7363 038-1 CDCB OST CZ-ČDC
    363 041‑5 A 91 54 7363 041-5 CDCB OST CZ-ČDC
    363 043‑1 A 91 54 7363 043-1 CDCB OST CZ-ČDC
    363 044‑9 A 91 54 7363 044-9 CDCB UNL CZ-ČDC
    363 045‑6 A 91 54 7363 045-6 CDCB OST CZ-ČDC
    363 047‑2 A 91 54 7363 047-2 CDCB OST CZ-ČDC
    363 048‑0 A 91 54 7363 048-0 CDCB OST CZ-ČDC
    363 049‑8 A 91 54 7363 049-8 CDCB OST CZ-ČDC
    363 050‑6 A 91 54 7363 050-6 CDCB OST CZ-ČDC
    363 051‑4 A 91 54 7363 051-4 CDCB UNL CZ-ČDC
    363 058‑9 A 91 54 7363 058-9 CDCB UNL CZ-ČDC
    363 059‑7 A 91 54 7363 059-7 CDCB OST CZ-ČDC
    363 063‑9 A 91 54 7363 063-9 CDCB OST CZ-ČDC
    363 065‑4 A 91 54 7363 065-4 CDCB OST CZ-ČDC
    363 066‑2 A 91 54 7363 066-2 CDCB UNL CZ-ČDC
    363 067‑0 A 91 54 7363 067-0 CDCB UNL CZ-ČDC
    363 072‑0 A 91 54 7363 072-0 CDCB UNL CZ-ČDC
    363 073‑8 A 91 54 7363 073-8 CDCB UNL CZ-ČDC
    363 074‑6 A 91 54 7363 074-6 CDCB UNL CZ-ČDC
    363 075‑3 A 91 54 7363 075-3 CDCB UNL CZ-ČDC
    363.2

    Electric Loco

    System 3000 V DC, 25 kV 50 Hz AC
    Length 16.74 m
    Width 2.94 m
    Height 4.595 m
    Introduced 1984-1986, 1991-1992. Rebuilt 2021-
    Wheel Arrangement Bo-Bo
    Builder Škoda
    Power 3060 kW, 3480 kW
    Weight 84 t
    TE 300 kN
    Max Speed 120 km/h
    Driving Wheel Dia 1250 mm
    Wheelbase 11500 mm
    Submit Photo

    Your photo will be submitted to the editors for approval.

    • You must ensure you have permission of the copyright owner to submit this photo for SpotLog
    • Please do not submit photo's taken from Wikipedia or another website unless you have explicit permisson to do so
    • Putting a date in the photo caption is often helpful
    • Upload must be in JPEG format
    Number Altnumber Status EVN Livery Depot Owner
    363 215‑5 163 215‑7   162 015‑2   A 91 54 7363 215-5 CDCB UNL CZ-ČDC
    363 216‑3 163 216‑5   162 016‑0   A 91 54 7363 216-3 CDCB UNL CZ-ČDC
    363 217‑1 163 217‑3   162 017‑8   A 91 54 7363 217-1 CDCB UNL CZ-ČDC
    363 233‑8 163 233‑0   162 033‑5   A 91 54 7363 233-8 CDCB UNL CZ-ČDC
    363 241‑1 163 241‑3   162 041‑8   A 91 54 7363 241-1 CDCB UNL CZ-ČDC
    363 242‑9 163 242‑1   162 042‑6   A 91 54 7363 242-9 CDCB UNL CZ-ČDC
    363 243‑7 163 243‑9   162 043‑4   A 91 54 7363 243-7 CDCB UNL CZ-ČDC
    363 245‑2 163 245‑4   162 045‑9   A 91 54 7363 245-2 CDCB UNL CZ-ČDC
    363 247‑8 163 247‑0   162 047‑5   A 91 54 7363 247-8 CDCB UNL CZ-ČDC
    363 248‑6 163 248‑8   162 048‑3   A 91 54 7363 248-6 CDCB UNL CZ-ČDC
    363 250‑2 163 250‑4   162 050‑9   A 91 54 7363 250-2 CDCB UNL CZ-ČDC
    363 251‑0 163 251‑2   162 051‑7   A 91 54 7363 251-0 CDCB UNL CZ-ČDC
    363 252‑8 163 252‑0   162 052‑5   A 91 54 7363 252-8 CDCB UNL CZ-ČDC
    363 255‑1 163 255‑3   162 055‑8   A 91 54 7363 255-1 CDCB UNL CZ-ČDC
    363 256‑9 163 256‑1   162 056‑6   A 91 54 7363 256-9 CDCB UNL CZ-ČDC
    363 257‑7 163 257‑9   162 057‑4   A 91 54 7363 257-7 CDCB UNL CZ-ČDC
    363 258‑5 163 258‑7   162 058‑2   A 91 54 7363 258-5 CDCB UNL CZ-ČDC
    363 259‑3 163 259‑5   162 059‑0   A 91 54 7363 259-3 CDCB UNL CZ-ČDC
    363 271‑8 163 071‑4   91 54 7363 271-8 CZ-ČDC
    363 276‑7 163 076‑3   A 91 54 7363 276-7 CDCB UNL CZ-ČDC
    363.5

    Electric Loco

    System 3000 V DC, 25 kV 50 Hz AC
    Length 16.80 m
    Width 2.94 m
    Height 4.64 m
    Introduced 2010-2013
    Wheel Arrangement Bo-Bo
    Builder Škoda, Pars Nova
    Power 3700 kW
    Weight 88 t
    TE 300 kN
    Max Speed 120 km/h
    Driving Wheel Dia 1250 mm

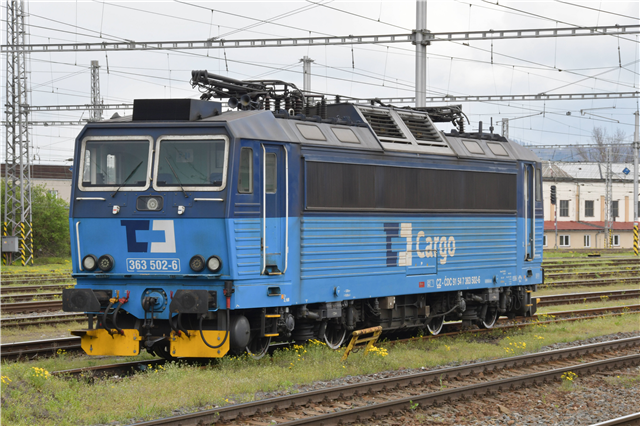

    363 502 - Valašské Meziříčí

    Photo: © John Mulrine

    Submit Photo

    Your photo will be submitted to the editors for approval.

    • You must ensure you have permission of the copyright owner to submit this photo for SpotLog
    • Please do not submit photo's taken from Wikipedia or another website unless you have explicit permisson to do so
    • Putting a date in the photo caption is often helpful
    • Upload must be in JPEG format
    Number Altnumber Status EVN Note Livery Depot Owner Withdrawn
    363 501‑8 163 031‑8   A 91 54 7363 501-8 CDCB CEB CZ-ČDC
    363 502‑6 163 004‑5   A 91 54 7363 502-6 CDCB CEB CZ-ČDC
    363 503‑4 163 011‑0   A 91 54 7363 503-4 CDCB CEB CZ-ČDC
    363 504‑2 163 006‑0   A 91 54 7363 504-2 CDCB CEB CZ-ČDC
    363 505‑9 163 018‑5   A 91 54 7363 505-9 CDCB CEB CZ-ČDC
    363 506‑7 163 005‑2   A 91 54 7363 506-7 CDCB CEB CZ-ČDC
    363 507‑5 163 037‑5   A 91 54 7363 507-5 CDCB CEB CZ-ČDC
    363 508‑3 163 002‑9   A 91 54 7363 508-3 CDCB CEB CZ-ČDC
    363 509‑1 163 036‑7   A 91 54 7363 509-1 CDCB CEB CZ-ČDC
    363 510‑9 163 003‑7   A 91 54 7363 510-9 CDCB CEB CZ-ČDC
    363 511‑7 163 014‑4   A 91 54 7363 511-7 CDCB CEB CZ-ČDC
    363 512‑5 163 012‑8   A 91 54 7363 512-5 CDCB CEB CZ-ČDC
    363 513‑3 163 038‑3   A 91 54 7363 513-3 CDCB CEB CZ-ČDC
    363 514‑1 163 009‑4   A 91 54 7363 514-1 CDCB CEB CZ-ČDC
    363 515‑8 163 033‑4   A 91 54 7363 515-8 CDCB CEB CZ-ČDC
    363 516‑6 163 024‑3   A 91 54 7363 516-6 CDCB CEB CZ-ČDC
    363 517‑4 163 013‑6   A 91 54 7363 517-4 CDCB CEB CZ-ČDC
    363 518‑2 163 019‑3   A 91 54 7363 518-2 CDCB CEB CZ-ČDC
    363 519‑0 163 017‑7   A 91 54 7363 519-0 CDCB CEB CZ-ČDC
    363 520‑8 163 015‑1   A 91 54 7363 520-8 CDCB CEB CZ-ČDC
    363 521‑6 163 032‑6   A 91 54 7363 521-6 CDCB CEB CZ-ČDC
    363 522‑4 163 007‑8   A 91 54 7363 522-4 CDCB CEB CZ-ČDC
    363 523‑2 163 027‑6   A 91 54 7363 523-2 CDCB CEB CZ-ČDC
    363 524‑0 163 020‑1   A 91 54 7363 524-0 CDCB CEB CZ-ČDC
    363 525‑7 163 016‑9   A 91 54 7363 525-7 CDCB CEB CZ-ČDC
    363 526‑5 163 028‑4   A 91 54 7363 526-5 CDCB CEB CZ-ČDC
    363 527‑3 163 010‑2   A 91 54 7363 527-3 CDCB CEB CZ-ČDC
    363 528‑1 163 023‑5   A 91 54 7363 528-1 CDCB CEB CZ-ČDC
    363 529‑9 163 001‑1   W 91 54 7363 529-9 Withdrawn after a head on collision with 388 205-7 in Pardubice on 5th June 2024 CDCB CEB CZ-ČDC 05/06/2024
    363 530‑7 163 008‑6   A 91 54 7363 530-7 CDCB CEB CZ-ČDC
