System | 15 kV 16.7 Hz AC, 25 kV 50 Hz AC, 3000 V DC, 1500 V DC |
Length | 18.90 m |
Width | 3.079 m |
Height | 4.215 m |
Introduced | 2009 |
Wheel Arrangement | Bo-Bo |
Builder | Bombardier Transportation |
Power | 4000 kW |
Weight | 86 t |
TE | 300 kN |
Max Speed | 160 km/h |
Driving Wheel Dia | 1250 mm |

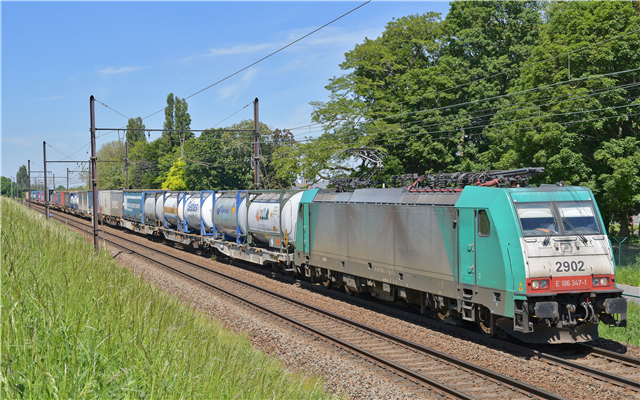

2902 - Leemputtelaarbaan, Mortsel
Photo: © John Mulrine
Number | Altnumber | Status | EVN | Note | Pool | Owner | |
---|---|---|---|---|---|---|---|
2901 | E 186 346‑3 186 346‑3 | H | 91 88 7186 346-3 | Eq: D/B/F | LINEAS [B-BLX] | B-ATLU | |
2902 | E 186 347‑1 186 347‑1 | H | 91 88 7186 347-1 | Eq: D/B/F | LINEAS [B-BLX] | B-ATLU | |
2903 | E 186 348‑9 186 348‑9 | H | 91 88 7186 348-9 | Eq: D/B/F | LINEAS [B-BLX] | B-ATLU | |
2904 | E 186 349‑7 186 349‑7 | H | 91 88 7186 349-7 | Eq: D/B/F | LINEAS [B-BLX] | B-ATLU | |
2905 | E 186 350‑5 186 350‑5 | H | 91 88 7186 350-5 | Eq: D/B/F | LINEAS [B-BLX] | B-ATLU |
