AT: Electric Locomotive: 1110
Electric Loco
Builder | SGP, ABES (AEG, BBC, ELIN, Siemens) |
Max Speed | 110 km/h |
Introduced | 1956-1961 |
Length | 17.86 m |
Weight | 106 t (1110.0), 114 t (1110.5) |
Driving Wheel Dia | 1300 mm |
System | 15 kV 16.7 Hz AC |
Wheel Arrangement | Co-Co |
Power | 4000 kW |
TE | 280 kN |
Number | Altnumber | Status | EVN | Note | Livery | Depot | Base | Owner | In Service | Withdrawn | |
---|---|---|---|---|---|---|---|---|---|---|---|
1110 001‑3 | 1110.01 | X | O | LZ | A-ÖBB | 15/11/1956 | 01/12/2001 | ||||
1110 003‑9 | 1110.03 | X | O | LZ | A-ÖBB | 27/02/1957 | 01/03/2001 | ||||
1110 004‑7 | 1110.04 | X | V | LZ | A-ÖBB | 04/04/1957 | 01/06/2002 | ||||
1110 006‑2 | 1110.06 | X | O | LZ | A-ÖBB | 27/03/1958 | 01/03/2002 | ||||
1110 007‑0 | 1110.07 | X | O | LZ | A-ÖBB | 09/10/1957 | 01/12/2001 | ||||
1110 008‑8 | 1110.08 | X | O | LZ | A-ÖBB | 30/05/1958 | 01/12/2000 | ||||
1110 009‑6 | 1110.09 | P | Spare parts donor | O | Ampflwang | A-ÖGEG | 07/02/1958 | ||||
1110 010‑4 | 1110.10 | X | O | LZ | A-ÖBB | 28/05/1958 | 01/06/2002 | ||||
1110 011‑2 | 1110.11 | X | O | VH | A-ÖBB | 14/01/1959 | 01/03/2002 | ||||
1110 012‑0 | 1110.12 | X | O | LZ | A-ÖBB | 04/03/1959 | 01/06/2001 | ||||
1110 013‑8 | 1110.13 | X | O | LZ | A-ÖBB | 07/04/1959 | 12/03/1984 | ||||
1110 014‑6 | 1110.14 | X | O | LZ | A-ÖBB | 03/07/1959 | 01/05/2000 | ||||
1110 015‑3 | 1110.15 | P | V | Knittelfeld | A-ÖGEG | 04/06/1959 | |||||
1110 017‑9 | 1110.17 | X | O | SB | A-ÖBB | 16/10/1959 | 01/09/2001 | ||||
1110 018‑7 | 1110.18 | P | V | Timelkam | A-ÖGEG | 18/12/1959 | |||||
1110 020‑3 | 1110.20 | S | Spare parts donor | O | Ampflwang | A-ÖGEG | 01/12/1960 | ||||
1110 023‑7 | 1110.23 | P | O | Strasshof | A-OSEK | 23/05/1960 | 01/12/2003 | ||||
1110 025‑2 | 1110.25 | S | Spare parts donor | O | Ampflwang | A-ÖGEG | 30/08/1960 | 01/03/2003 | |||
1110 027‑8 | 1110.27 | X | O | LZ | A-ÖBB | 16/11/1960 | 01/03/2020 | ||||
1110 028‑6 | 1110.28 | X | O | LZ | A-ÖBB | 24/01/1961 | 01/02/2003 | ||||
1110 502‑0 | 1110.02 | X | O | BL | A-ÖBB | 17/12/1956 | 01/02/2003 | ||||
1110 505‑5 | 1110.505 1110.05 | P | 91 81 1110 505-5 | O | Wolfurt | A-PBV | 30/05/1957 | ||||
1110 516‑0 | 1110.16 | X | V | BL | A-ÖBB | 05/08/1959 | 01/06/2002 | ||||
1110 519‑4 | 1110.19 | X | V | BL | A-ÖBB | 22/12/1959 | 01/03/2003 | ||||
1110 521‑0 | 1110.21 | X | V | BL | A-ÖBB | 29/03/1960 | 01/03/2020 | ||||
1110 522‑8 | 1110.22 | P | 93 81 1110 522-8 | V | Timelkam | A-ÖGEG | 27/05/1960 | 01/03/2003 | |||

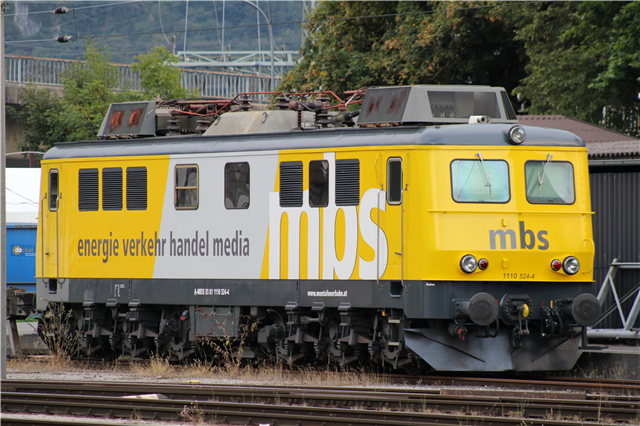

1110 524‑4 | 1110 524‑6 1110.24 | 91 81 1110 524-6 | A-RBAHN | 19/07/1960 | |||||||
1110 526‑9 | 1110.26 | P | O | Ampflwang | A-ÖGEG | 26/09/1960 | 01/02/2003 | ||||
1110 529‑3 | 1110.29 | P | O | A- | 04/02/1961 | 01/03/2020 | |||||
1110 530‑1 | 1110.30 | S | Spare parts donor | O | Bludenz | A-CZA | 15/04/1961 | 01/03/2003 |
