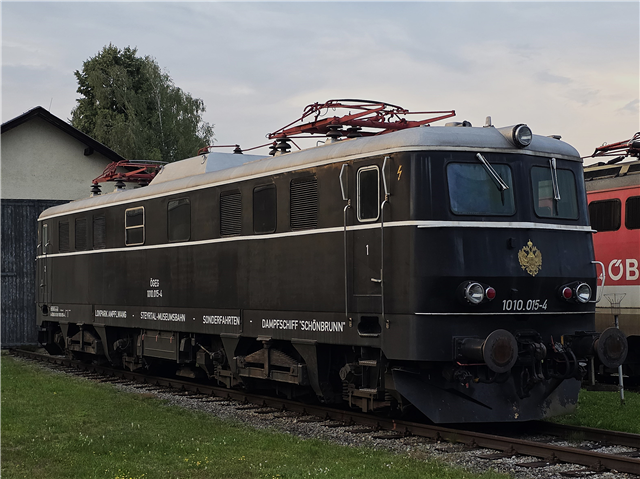

AT: Electric Locomotive: 1010
Electric Loco
| Builder | ABES (AEG, BBC, ELIN, Siemens), SGP |
| Max Speed | 130 km/h |
| Introduced | 1955-1958 |
| Withdrawn | 2003 |
| Length | 17.86 m |
| Weight | 106 t (001-002), 109.8 t (003-020) |
| Power | 4000 kW |
| Wheel Arrangement | Co-Co |
| System | 15 kV 16.7 Hz AC |
| TE | 226 kN |
| Driving Wheel Dia | 1300 mm |
| Wheelbase | 12700 mm |
| Width | 3.09 m |
| Height | 4.26 m |
| Number | Altnumber | Status | EVN | Livery | Depot | Base | Owner | In Service | Withdrawn | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1010 001‑4 | 1010.01 | X | O | SB | A-ÖBB | 15/05/1955 | 01/12/2001 | |||
| 1010 002‑2 | 1010.02 | P | O | Strasshof | A-ÖSEK | 08/07/1955 | ||||
| 1010 003‑0 | 1010.03 | P | 93 81 1010 003-0 | O | Wien Franz-Josefs-Bahnhof | A-CZA | 18/08/1955 | |||
| 1010 004‑8 | 1010.04 | P | O | Ampflwang | A-ÖGEG | 10/09/1955 | ||||
| 1010 005‑5 | 1010.05 | X | V | SB | A-ÖBB | 19/10/1955 | 01/12/2001 | |||
| 1010 006‑3 | 1010.06 | X | O | SB | A-ÖBB | 18/11/1955 | 01/03/2002 | |||
| 1010 007‑1 | 1010.07 | X | O | SB | A-ÖBB | 13/12/1955 | 01/09/2001 | |||
| 1010 008‑9 | 1010.08 | X | O | SB | A-ÖBB | 20/01/1956 | 01/05/1993 | |||
| 1010 009‑7 | 1010.09 | P | G | Ampflwang | A-ÖGEG | 17/02/1956 | ||||
| 1010 010‑5 | 1010.10 | P | 93 81 1010 010-5 | G | Wien Franz-Josefs-Bahnhof | A-CZA | 16/03/1956 | |||
| 1010 011‑3 | 1010.11 | P | V | Strasshof | A-ÖSEK | 25/04/1956 | ||||
| 1010 012‑1 | 1010.12 | X | V | SB | A-ÖBB | 30/05/1956 | 01/03/2003 | |||
| 1010 013‑9 | 1010.13 | P | O | Timelkam | A-ÖGEG | 27/06/1956 | ||||
| 1010 014‑7 | 1010.14 | X | O | SB | A-ÖBB | 29/08/1956 | 01/06/2002 | |||
| 1010 015‑4 | 1010.15 | P | 93 81 1010 015-4 | CB | Timelkam | A-ÖGEG | 18/09/1956 | |||
| 1010 016‑2 | 1010.16 | X | V | SB | A-ÖBB | 22/10/1956 | 01/12/2001 | |||
| 1010 017‑0 | 1010.17 | X | V | SB | A-ÖBB | 27/06/1958 | 01/06/2001 | |||
| 1010 018‑8 | 1010.18 | X | O | LZ | A-ÖBB | 21/08/1958 | 01/01/1998 | |||
| 1010 019‑6 | 1010.19 | X | V | LZ | A-ÖBB | 06/10/1958 | 01/03/2002 | |||
| 1010 020‑4 | 1010.20 | X | O | SB | A-ÖBB | 18/12/1958 | 01/12/2001 |
