Coach
Churchward
Churchward Bogie Corridor Third (TK) Dreadnought (Diagram C24)
Extant Stock:
Number range: W3291W - W3299W (9). Built Swindon Sep 1905 to Lot 1098.
Seats: 72 3rd class in 9 Compartments. 2 Toilets.
W3299W - Renumbered 079002 for internal use as a Staff Coach in 10/1951. Withdrawn in 1972
| Diagram | C24 |
| Length | 69' 0" |
| Width | 9' 6" |
| Introduced | 1905 |
| Withdrawn | 1956 |
| Wheel Arrangement | 4w Bogies |
| Builder | GWR Swindon |
| Weight | 32t 9cwt |
| Number | Altnumber | Status | Livery | Base | Owner | In Service | Withdrawn | |
|---|---|---|---|---|---|---|---|---|
| 3299 | W3299W 079002 | S | Chocolate and Cream | Didcot Railway Centre | Great Western Preservations Ltd | 1905 | 1972 |
Coach
Churchward
Churchward Gangwayed Third (TK) Bars 1 Toplight (Diagram C30)
Number range: W2422W - W2435W (14). Built Swindon Jan 1910 - Feb 1910 to Lot 1167.
Seats 64 3rd Class in 8 Compartments. 2 Toilets.
Extant Stock:
2426 -Â Â Renumbered W9918W and converted to a Camping Coach in 05/1952. Withdrawn in 1972.
2434 -Â Â Renumbered DW150038 and converted to a Staff & Dormitory Coach in 1955. Withdrawn in 1971.
| Diagram | C30 |
| Length | 56' 0" |
| Width | 9' 0" |
| Introduced | Jan 1910 |
| Wheel Arrangement | 4w American Bogies |
| Builder | Swindon |
| Weight | 27t 5cwt |
| Number | Altnumber | Status | Livery | Base | Owner | RHRP | In Service | Withdrawn | |
|---|---|---|---|---|---|---|---|---|---|
| 2426 | W2426W W9918W | S | Chocolate and Cream | Severn Valley Railway | Great Western (SVR) Assoc. | 1910 | 1972 | ||
| 2434 | DW150038 | A | Chocolate and Cream | South Devon Railway | Cornish Steam Locomotive Preservation Society | CarriageInfo.asp?Ref=140 | 1910 | 1971 |
Churchward
Churchwood Bogie Corridor Third (TK) Bar 1 Toplight (Diagram C31)
Number range: W2436W - W2454W (18). Built Swindon Dec 1910 - Feb 1911 to Lot 1172.
Number range: W3636W - W3644W (9). Built Swindon Jul 1911 - Aug 1911 to Lot 1289.
Seats: 64 3rd class in 8 Compartments. 2 Toilets.
Extant Stock:
W2447W - Renumbered DW150019 and converted to a Staff Riding Van in 08/1955. Withdrawn in 1981
W3639W - Renumbered W9887W and converted to a Camping Coach in 01/1957. Withdrawn in 1972
| Diagram | C31 |
| Length | 57' 0" |
| Width | 9' 0" |
| Introduced | 1910 |
| Wheel Arrangement | 4w 9' Bogies |
| Builder | GWR - Swindon |
| Weight | 27t 6cwt |
| Withdrawn | 1958 |
| Number | Altnumber | Status | Note | Livery | Base | Owner | RHRP | In Service | Withdrawn | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2447 | W2447 ADW150019 | R | Under renovation as holiday accommodation. | Chocolate and Cream | Doldowlod | Private | CarriageInfo.asp?Ref=141 | 1911 | 1955 | |
| 3639 | W3639 9887 | R | Bare Wood | West Somerset Railway | Steam Trust | 1911 | 1972 |
Coach
Churchward
Churchward Bogie Corridor Third (TK) Multibar Toplight (Diagram C32)
Number range: W2569W - W2580W (12). Built Swindon Jan 1914 - Feb 1914 to Lot 1234.
Number range: W3631W - W3631W (1). Built Swindon Feb 1914 to Lot 1286.
Number range: W3879W - W3900W (22). Built Swindon Mar 1920 - Jul 1920 to Lot 1269.
Number range: W3913W - W3947W (33). Built Swindon Sep 1914 - Apr 19159 to Lot 1246.
Seats: 64 3rd class in 8 Compartments. 2 Toilets.
Extant Stock:
W2573W - Renumbered W9879W and converted to a Camping Coach in 06/1958. Withdrawn in 1980
W2578W - Renumbered W9889W and converted to a Camping Coach in 03/1957. Withdrawn in 1979
W3631W - Renumbered W9880W and converted to a Camping Coach in 06/1958. Withdrawn in 1980
W3885W - Renumbered W9882W and converted to a Camping Coach in 03/1958. Withdrawn in 1980
W3898W - Renumbered W9884W and converted to a Camping Coach in 023/1958. Withdrawn in 1980
W3917W - Renumbered W9883W and converted to a Camping Coach in 03/1958. Withdrawn in 1980
W3930W - Renumbered DW150011 and converted to a Sleeping & Mess Van in 04/1954. Withdrawn in 1967 at Barry.
| Diagram | C32 |
| Length | 56' 11" |
| Width | 8' 11" |
| Introduced | 1912 |
| Withdrawn | 1958 |
| Wheel Arrangement | 4w Bogies |
| Builder | GWR Swindon |
| Weight | 28t 4cwt |
| Number | Altnumber | Name | Status | Note | Livery | Location | Base | Owner | RHRP | In Service | Withdrawn | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2573 | 9879 | Carol** | S | Volunteer Accomodation | Chocolate and Cream | Blue Anchor | West Somerset Railway | West Somerset Steam Railway Trust | 1914 | 1980 | ||
| 2578 | W2578W 9889 | S | Awaiting Repair/Restoration | Chocolate and Cream | West Somerset Railway | West Somerset Steam Railway Trust | CarriageInfo.asp?Ref=145 | 1914 | 1979 | |||
| 3631 | W3631W 9880 | Doris"", Florence"" | S | Awaiting Repair/Restoration | Chocolate and Cream | West Somerset Railway | Florence | 1915 | 1980 | |||
| 3885 | W3885W 9882 82 | S | Volunteer Accomodation | Chocolate and Cream | West Somerset Railway | WSRA Home Counties Group | 1920 | 1980 | ||||
| 3898 | W3898W 9884 | S | Awaiting Repair/Restoration | Chocolate and Cream | Swindon and Cricklade Railway | Private | CarriageInfo.asp?Ref=189 | 1920 | 1980 | |||
| 3917 | W3917W 9883 | S | Volunteer Accomodation | Maroon | Llangollen Railway | 1914 | 1980 | |||||
| 3930 | W3930W DW150011 | A | Chocolate and Cream | Severn Valley Railway | Great Western (SVR) Assoc. | 1914 | 1967 |
Churchward
Churchward Bogie Corridor Third (TK) Multibar Toplight (Diagram C32)
Number range: W3662W - W3667W (6). Built Swindon Dec 1917 to Lot 1290.
Number range: W3668W - W3668W (1). Built Swindon Dec 1917 to Lot 1313.
Number range: W3949W - W3981W (32). Built Swindon Oct 1916 - Nov 1919 to Lot 1256.
Seats: 64 3rd class in 8 Compartments. 2 Toilets.
Extant Stock:
W3665W & W3668W built to diagram (C28) Converted to Ambulance Coaches. Rebuilt to diagram (C35) after the war.
W3665W - Renumbered W9886W and converted to a Camping Coach in 01/1957. Withdrawn in 1980.
W3668W - Renumbered W9888W and converted to a Camping Coach in 01/1957. Withdrawn in 1971.
W3963W - Renumbered W9885W and converted to a Camping Coach in 01/1957. Withdrawn in 1980.
W3980W - Renumbered W9881W and converted to a Camping Coach in 02/1958. Withdrawn in 1980.
| Diagram | C35 |
| Length | 56' 11" |
| Width | 8' 11" |
| Introduced | 1916 |
| Withdrawn | 1963 |
| Wheel Arrangement | 4w Bogies |
| Builder | GWR Swindon |
| Weight | 27t 2cwt |
| Number | Altnumber | Status | Note | Livery | Base | Owner | RHRP | In Service | Withdrawn | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3665 | W3665W W9886W 25 5526 | S | Awaiting Restoration | Chocolate and Cream | West Somerset Railway | West Somerset Steam Railway Trust | 1917 | 1980 | ||
| 3668 | W3668W W9888W | S | Awaiting Restoration | Chocolate and Cream | Gwendraeth Valley Railway | Private | CarriageInfo.asp?Ref=185 | 1917 | 1971 | |
| 3963 | W3963W W9885W | S | Grey | Didcot Railway Centre | Great Western Preservations Ltd | 1919 | 1980 | |||
| 3980 | W3980W W9881W 81 | S | Volunteer Accomodation | Chocolate and Cream | West Somerset Railway | WSRA Home Counties Group | 1919 | 1980 |
Coach
Collett
Collett Bogie Corridor Third (TK) Bow End (Diagram C54)
Number range: W4545W - W4556W (12). Built Swindon Jul 1925 - Feb 1926 to Lot 1352.
Number range: W4776W - W4854W (80). Built Swindon Feb 1926 - Aug 1926 to Lot 1369.
Number range: W4857W - W4880W (24). Built Swindon Aug 1926 - Jan 1927 to Lot 1372.
Number range: W5001W - W5086W (86). Built Swindon Oct 1927 - Jun 1928 to Lot 1383.
Seats: 64 3rd class in 8 Compartments. 2 Toilets.
Extant Stock:
4546 - Renumbered DW150205 and converted to a Staff Van in 1959. Renumbered 060903 for internal use. Withdrawn in 1982.
4553 - Renumbered DW150207 and converted to a Staff Van in 1961. Withdrawn in 1974.
4777 - Renumbered DW150206 and converted to a Staff Van in 1959. Renumbered 060907 for internal use. Withdrawn in 1989.
4786 - Renumbered DW150208 and converted to a Staff Van in 1961. Withdrawn in 1984.
4872 - Renumbered DW150209 and converted to a Staff Van in 1961. Withdrawn in 1984.
5043 - Renumbered DW150301 and converted to a Workshop in 1961. Withdrawn in 1981.
5085 - Renumbered DW150200 and converted to a Staff Van in 1959. Withdrawn in 1974.
| Diagram | C54 |
| Introduced | 1925 |
| Builder | GWR Swindon |
| Length | 58' 4" |
| Width | 9' 0" |
| Withdrawn | 1964 |
| Wheel Arrangement | 4w 7' Bogies |
| Weight | 30t 6cwt |
| Number | Altnumber | Status | Note | Livery | Location | Base | Owner | RHRP | In Service | Withdrawn | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4546 | DW150205 060903 | S | Unknown Sheeted | West Somerset Railway | West Somerset Steam Railway Trust | 1925 | 1982 | ||||
| 4553 | DW150207 | S | Volunteer Accomodation | Brown | Didcot Railway Centre | Great Western Preservations Ltd | 1925 | 1974 | |||
| 4777 | DW150206 060907 | S | Chocolate and Cream | Honeybourne Airfield Industrial Estate | CarriageInfo.asp?Ref=198 | 1926 | 1989 | ||||
| 4786 | KDW150208 | R | Restoration commenced October 2018 | Chocolate and Cream | Bewdley | Severn Valley Railway | Great Western (SVR) Assoc. | 1926 | 1984 | ||
| 4872 | KDW150209 | S | Brown | South Devon Railway | GWR 813 Preservation Fund | CarriageInfo.asp?Ref=200 | 1926 | 1984 | |||
| 5085 | KDW150200 | S | Unknown Sheeted | Didcot Railway Centre | Great Western Preservations Ltd | 1928 | 1974 | ||||
| 9581 | 5043 DW150301 | R | under conversion to Wheelchair/Buffet, number 9581 is fictitious | Undercoat | Severn Valley Railway | SVR (Holdings) | 1927 | 1981 |
Coach
Collett
Collett Bogie Corridor Third (TK) Flat End Wide Stock (Diagram C67)
Number range: W5808W - W5867W (60). Built Swindon Nov 1934 - Feb 1935 to Lot 1509.
Number range: W5928W - W5982W (86). Built Swindon Jun 1935 - Aug 1935 to Lot 1527.
Seats: 64 3rd class in 8 Compartments. 2 Toilets.
Extant Stock:
W5813W - Rebuilt in 1941 with modernised body after damage during the war. Renumbered DW150324 and converted to a Control Train Coach in 01/1962. Withdrawn in 1980c
W5856W - Renumbered DW150031 and converted to a Telecom Unit in 03/1957. Withdrawn in 1980
W5863W - Renumbered DW150325 and converted to a Control Train Coach in 01/1962. Withdrawn in 1980c
W5952W - Only complete example to this diagram. No further conversions.
| Diagram | C67 |
| Introduced | 1934 |
| Builder | GWR Swindon |
| Length | 57' 0" |
| Width | 9' 0" |
| Withdrawn | 1965 |
| Wheel Arrangement | 4w 9' Bogies |
| Weight | 30t 6cwt |

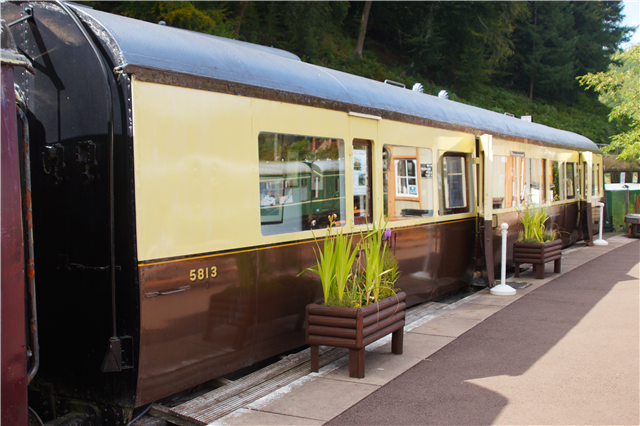

.jpg?d=9676)
Photo: Dan Cardwell
| Number | Altnumber | Status | Note | Livery | Base | Owner | RHRP | In Service | Withdrawn | Scrapped | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5813 | W5813W DW150324 | S | 9681 shop | Chocolate and Cream | Dean Forest Railway | Pannier Tank Fund | CarriageInfo.asp?Ref=213 | 1934 | 1980 | ||
| 5848 | W5848W DW150029 | X | CarriageInfo.asp?Ref=214 | 1935 | 1980 | 2014 | |||||
| 5856 | W5856W DW150031 | S | Awaiting Restoration | Chocolate and Cream | West Somerset Railway | 1935 | 1980 | ||||
| 5863 | W5863W DW150325 | S | Roof sheeted | Chocolate and Cream | Dean Forest Railway | Dean Forest Railway Company | CarriageInfo.asp?Ref=216 | 1935 | 1980 | ||
| 5929 | W5929W DW150030 | X | 1935 | 1980 | 2012 | ||||||
| 5952 | W5952W 99503 | S | Chocolate and Cream | Didcot Railway Centre | Great Western Preservations Ltd | 1935 | 1965 |
Coach
Collett
Collett Bogie Corridor Third (TK) Standard Stock (Diagram C77)
Extant Stock:
Number range: W501W - W595W (95). Built Swindon Apr 1939 - May 1940 to Lot 1623.
Number range: W1080W - W1155W (76). Built Swindon Feb 1938 - Oct 1938 to Lot 1593.
Seats: 64 3rd class in 8 Compartments. 2 Toilets.
W536W - Renumbered 079152 for internal use in Swindon Test Train in 08/1965. Withdrawn in 1969
W1086W - Renumbered 079154 for internal use in Swindon Test Train in 08/1965. Withdrawn in 1969
W1087W - Renumbered 079158 for internal use in Swindon Test Train in 08/1965. Withdrawn in 1969
W1111W - Renumbered 079159 for internal use in Swindon Test Train in 08/1965. Withdrawn in 1969
W1116W - Renumbered 079157 for internal use in Swindon Test Train in 08/1965. Withdrawn in 1969
W1146W - Renumbered 079153 for internal use in Swindon Test Train in 08/1965. Withdrawn in 1969
| Diagram | C77 |
| Length | 64' 11" |
| Width | 8' 11" |
| Introduced | 1938 |
| Withdrawn | 1967 |
| Wheel Arrangement | 4w 9' Bogies |
| Builder | GWR Swindon |
| Weight | 31t 9cwt |

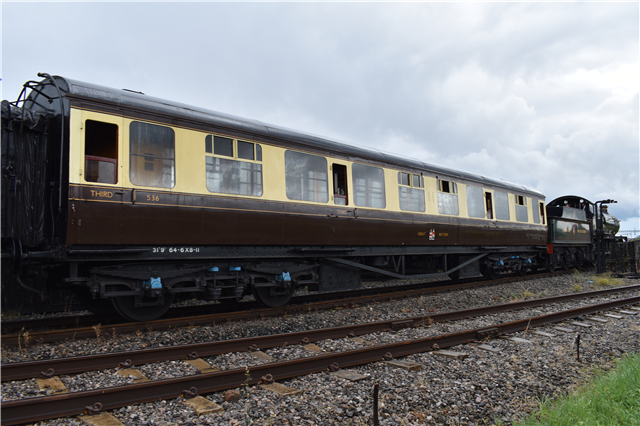

.jpg?d=2947)
| Number | Altnumber | Status | Livery | Base | Owner | In Service | Withdrawn | |
|---|---|---|---|---|---|---|---|---|
| 1086 | W1086W 079154 99234 | A | Chocolate and Cream | Severn Valley Railway | Great Western (SVR) Assoc. | 1938 | 1969 | |
| 1087 | W1087W 079158 99235 | S | Chocolate and Cream | Severn Valley Railway | Great Western (SVR) Assoc. | 1938 | 1969 | |
| 1111 | W1111W 079159 99500 | S | Chocolate and Cream | Didcot Railway Centre | Great Western Preservations Ltd | 1938 | 1969 | |
| 1116 | W1116W 079157 99231 | A | Chocolate and Cream | Severn Valley Railway | Great Western (SVR) Assoc. | 1938 | 1969 | |
| 1146 | W1146W 079153 99232 | A | Chocolate and Cream | Severn Valley Railway | The GWR 813 Preservation Fund | 1938 | 1969 | |
| 536 | W536W 079152 99504 | A | Chocolate and Cream | Didcot Railway Centre | Great Western Preservations Ltd | 1939 | 1969 |
Coach
Hawksworth
Hawksworth Bogie Corridor Third (TK) Mostly BR Built (Diagram C82)
Extant Stock:
Number range: W781W - W832W (51). Built Swindon Nov 1946 - Jun 1947 to Lot 1691.
Number range: W2107W - W2136W (30). Built Swindon Nov 1948 - Apr 1949 to Lot 1720.
Seats: 64 3rd class in 8 Compartments. 2 Toilets.
W796W - Renumbered DW150192 and converted to a Dynamometer Car in 1961. Withdrawn in 1980c
| Diagram | C82 |
| Length | 64' 0" |
| Width | 8' 11" |
| Introduced | 1946 |
| Withdrawn | 1968 |
| Wheel Arrangement | 4w 9' Bogies |
| Builder | GWR & BR Swindon |
| Weight | 31t 14cwt |
| Number | Altnumber | Status | Livery | Base | Owner | RHRP | In Service | Withdrawn | |
|---|---|---|---|---|---|---|---|---|---|
| 2119 | W2119W 99239 | S | Faded Chocolate and Cream | Severn Valley Railway | Great Western (SVR) Assoc. | CarriageInfo.asp?Ref=119 | 1949 | 1967 | |
| 796 | W796W DW150192 99140 | S | Chocolate and Cream | West Coast Railway Co. Carnforth | West Coast Railway Company | 1946 | 1980c | ||
| 829 | W829W | A | Chocolate and Cream | Severn Valley Railway | Great Western (SVR) Assoc. | 1947 | 1966 |
