PT: Electric Locomotive: 2500
Electric Loco
Gauge | 1668 mm |
System | 25 kV 50 Hz AC |
Length | 15.38 m |
Width | 3.105 m |
Height | 4.45 m |
Introduced | 1956-1957 |
Wheel Arrangement | Bo-Bo |
Builder | Groupement 50Hz, Alsthom, Henschel, Sorefame |
Power | 2053 kW |
Weight | 72 t |
TE | 191 kN |
Max Speed | 120 km/h |
Driving Wheel Dia | 1300 mm |

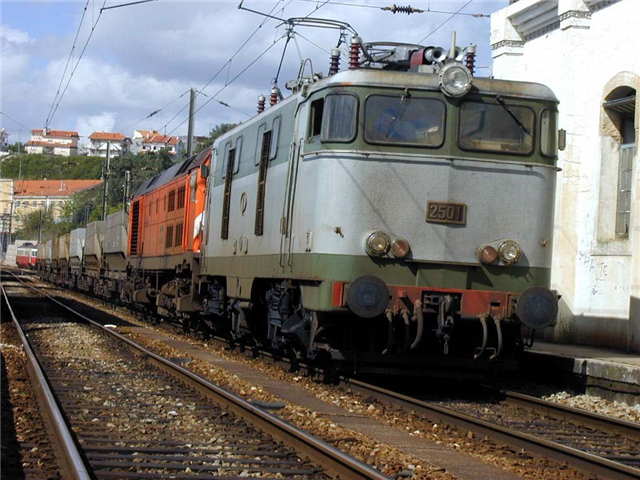

2501
Photo: Gary
Number | Status | EVN | Livery | Base | Owner | |
---|---|---|---|---|---|---|
2501 | P | 90 94 0272 501-6 | Grey | Entroncamento | MNF | |
2502 | X | O | CP | |||
2503 | X | O | CP | |||
2504 | X | O | CP | |||
2505 | X | O | CP | |||
2506 | X | O | CP | |||
2507 | X | O | CP | |||
2508 | X | O | CP | |||
2509 | X | O | CP | |||
2510 | X | O | CP | |||
2511 | X | O | CP | |||
2512 | X | O | CP | |||
2513 | X | O | CP | |||
2514 | X | O | CP | |||
2515 | X | O | CP |
