Length | 17.55 m |
Width | 2.95 m |
Height | 4.493 m |
Introduced | 1965-1974 rebuilt 2001-2007 |
Wheel Arrangement | Co-Co |
Builder | Voroshilovgrad Locomotive Works |
Power | 1500 kW |
Weight | 112 t |
TE | 194 kN |
Engine | MTU 12V 4000 R40 (301, 303, 304), CAT 3512 B DITA SC (302, 305-334) |
Transmission | Electric |
Max Speed | 100 km/h |
Driving Wheel Dia | 1050 mm |

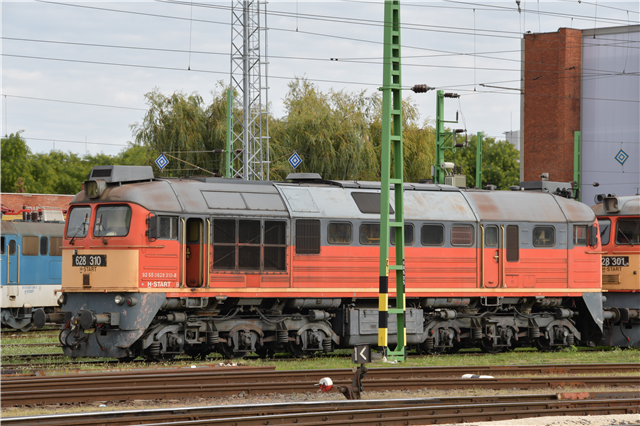

628 310 - Szombathely
Photo: © John Mulrine
Number | Altnumber | Status | EVN | Depot | Owner | |
---|---|---|---|---|---|---|
628 301‑7 | M62 257 M62 301 | A | 92 55 0628 301-7 | CE | H-START | |
628 302‑5 | M62 270 M62 302 | S | 92 55 0628 302-5 | CE | H-START | |
628 303‑3 | M62 253 M62 303 | S | 92 55 0628 303-3 | CE | H-START | |
628 304‑1 | M62 177 M62 304 | A | 92 55 0628 304-1 | SM | H-START | |
628 305‑8 | M62 205 M62 305 | A | 92 55 0628 305-8 | SV | H-START | |
628 306‑6 | M62 171 M62 306 | W | 92 55 0628 306-6 | SV | H-START | |
628 307‑4 | M62 196 M62 307 | A | 92 55 0628 307-4 | MS | H-START | |
628 308‑2 | M62 262 M62 308 | A | 92 55 0628 308-2 | SV | H-START | |
628 309‑0 | M62 273 M62 309 | S | 92 55 0628 309-0 | VD | H-START | |
628 310‑8 | M62 117 M62 310 | A | 92 55 0628 310-8 | CE | H-START | |
628 311‑6 | M62 100 M62 311 | A | 92 55 0628 311-6 | MS | H-START | |
628 312‑4 | M62 506 M62 312 | A | 92 55 0628 312-4 | VD | H-START | |
628 313‑2 | M62 514 M62 313 | A | 92 55 0628 313-2 | DB | H-START | |
628 314‑0 | M62 113 M62 314 | A | 92 55 0628 314-0 | SV | H-START | |
628 315‑7 | M62 138 M62 315 | A | 92 55 0628 315-7 | MS | H-START | |
628 316‑5 | M62 183 M62 316 | A | 92 55 0628 316-5 | SV | H-START | |
628 317‑3 | M62 198 M62 317 | A | 92 55 0628 317-3 | SV | H-START | |
628 318‑1 | M62 263 M62 318 | W | 92 55 0628 318-1 | MS | H-START | |
628 319‑9 | M62 181 M62 319 | A | 92 55 0628 319-9 | CE | H-START | |
628 320‑7 | M62 058 M62 320 | A | 92 55 0628 320-7 | MS | H-START | |
628 321‑5 | M62 158 M62 321 | A | 92 55 0628 321-5 | SV | H-START | |
628 322‑3 | M62 145 M62 322 | A | 92 55 0628 322-3 | DB | H-START | |
628 323‑1 | M62 244 M62 323 | S | 92 55 0628 323-1 | DB | H-START | |
628 324‑9 | M62 201 M62 324 | S | 92 55 0628 324-9 | DB | H-START | |
628 325‑6 | M62 206 M62 325 | S | 92 55 0628 325-6 | MS | H-START | |
628 326‑4 | M62 240 M62 326 | W | 92 55 0628 326-4 | MS | H-START | |
628 327‑2 | M62 183 M62 327 | S | 92 55 0628 327-2 | DB | H-START | |
628 328‑0 | M62 147 M62 328 | S | 92 55 0628 328-0 | MS | H-START | |
628 329‑8 | M62 216 M62 329 | S | 92 55 0628 329-8 | VD | H-START | |
628 330‑6 | M62 255 M62 330 | A | 92 55 0628 330-6 | SV | H-START | |
628 331‑4 | M62 071 M62 331 | A | 92 55 0628 331-4 | MS | H-START | |
628 332‑2 | M62 200 M62 332 | S | 92 55 0628 332-2 | VD | H-START | |
628 333‑0 | M62 266 M62 333 | S | 92 55 0628 333-0 | MS | H-START | |
628 334‑8 | M62 261 M62 334 | S | 92 55 0628 334-8 | SV | H-START |
