    HU: Diesel Locomotive: 418

    Diesel Loco

    M41 2100

    Length 15.50 m
    Width 3.09 m
    Height 4.23 m
    Introduced 1975-1984
    Wheel Arrangement B-B
    Builder Ganz-MÁVAG
    Power 1324 kW
    Weight 66 t
    TE 200 kN
    Engine SEMT-Pielstick 12PA4-185
    Max Speed 100 km/h
    Driving Wheel Dia 1040 mm

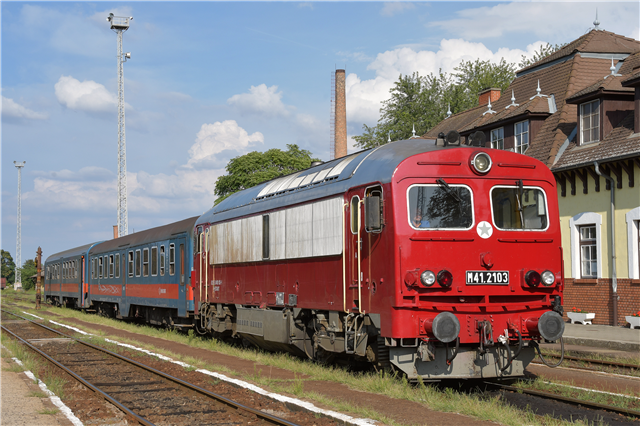

    M41 2103 - Orosháza

    Photo: © John Mulrine

    Submit Photo

    Your photo will be submitted to the editors for approval.

    • You must ensure you have permission of the copyright owner to submit this photo for SpotLog
    • Please do not submit photo's taken from Wikipedia or another website unless you have explicit permisson to do so
    • Putting a date in the photo caption is often helpful
    • Upload must be in JPEG format
    Number Alt number Name Status Pool Depot Note
    418 103-1 M41 2103 A BC
    418 104-9 M41 2104 W BC
    418 106-4 M41 2106 W DB
    418 108-0 M41 2108 A DB
    418 110-6 M41 2110 W HN
    418 112-2 M41 2112 A DB
    418 114-8 M41 2114 W MS
    418 115-5 M41 2115 A BC
    418 118-9 M41 2118 A HN
    418 120-5 M41 2120 W DB
    418 122-1 M41 2122 A HN
    418 126-2 M41 2126 A BC
    418 128-8 M41 2128 A HN
    418 130-4 M41 2130 A HN
    418 131-2 M41 2131 W DB
    418 135-3 M41 2135 A BC
    418 140-3 M41 2140 A HN
    418 142-9 M41 2142 A DB
    418 143-7 M41 2143 S BC
    418 145-2 M41 2145 A BC
    418 146-0 M41 2146 A BC
    418 148-6 M41 2148 A HN
    418 149-4 M41 2149 A HN
    418 150-2 M41 2150 W HN
    418 152-8 M41 2152 W DB
    418 153-6 M41 2153 A DB
    418 154-4 M41 2154 A HN
    418 155-1 M41 2155 W MS
    418 156-9 M41 2156 A BC
    418 157-7 M41 2157 W DB
    418 163-5 M41 2163 A DB
    418 164-3 M41 2164 W HN
    418 165-0 M41 2165 A DB
    418 166-8 M41 2166 A BC
    418 167-6 M41 2167 W DB
    418 170-0 M41 2170 W DB
    418 171-8 M41 2171 S BC
    418 172-6 M41 2172 W DB
    418 174-2 M41 2174 A DB
    418 175-9 M41 2175 A BC
    418 177-5 M41 2177 S DB
    418 178-3 M41 2178 S HN
    418 185-8 M41 2185 A BC
    418 187-4 M41 2187 A BC
    418 188-2 M41 2188 W DB
    418 191-6 M41 2191 W HN
    418 193-2 M41 2193 W HN
    418 194-0 M41 2194 W BC
    418 197-3 M41 2197 A HN
    418 198-1 M41 2198 W BC
    418 202-1 M41 2202 S BC
    418 203-9 M41 2203 W BC
    418 204-7 M41 2204 S VD
    418 208-8 M41 2208 W HN
    418 211-2 M41 2211 S BC
    418 300

    Diesel Loco

    M41 2300

    Length 15.50 m
    Width 3.09 m
    Height 4.23 m
    Introduced 1975-1984
    Wheel Arrangement B-B
    Builder Ganz-MÁVAG
    Power 1325 kW
    Weight 66 t
    Engine CAT 3512B HD SC
    Max Speed 100 km/h

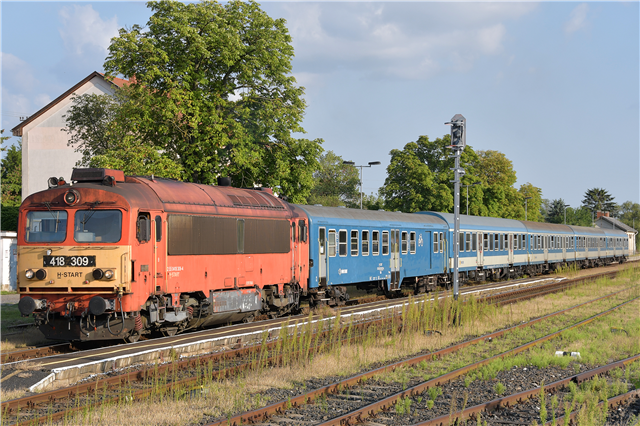

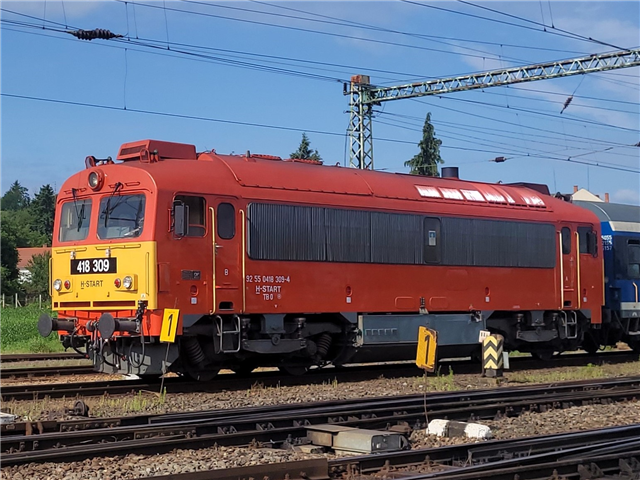

    418 309 - Sümeg

    Photo: © John Mulrine

    Submit Photo

    Your photo will be submitted to the editors for approval.

    • You must ensure you have permission of the copyright owner to submit this photo for SpotLog
    • Please do not submit photo's taken from Wikipedia or another website unless you have explicit permisson to do so
    • Putting a date in the photo caption is often helpful
    • Upload must be in JPEG format
    Number Alt number Name Status Pool Depot Note
    418 301-1 M41 2207, M41 2301 A CE
    418 302-9 M41 2190, M41 2302 W CE
    418 303-7 M41 2137, M41 2303 W DB
    418 304-5 M41 2158, M41 2304 S CE
    418 305-2 M41 2192, M41 2305 A CE
    418 306-0 M41 2205, M41 2306 W CE
    418 307-8 M41 2136, M41 2307 W DB
    418 308-6 M41 2180, M41 2308 A CE
    418 309-4 M41 2127, M41 2309 S CE
    418 310-2 M41 2161, M41 2310 A CE
    418 311-0 M41 2134, M41 2311 A CE
    418 312-8 M41 2196, M41 2312 A CE
    418 313-6 M41 2147, M41 2313 W CE
    418 314-4 M41 2209, M41 2314 W DB
    418 315-1 M41 2107, M41 2315 W CE
    418 316-9 M41 2206, M41 2316 A CE
    418 317-7 M41 2151, M41 2317 A CE
    418 318-5 M41 2201, M41 2318 A CE
    418 319-3 M41 2179, M41 2319 A CE
    418 320-1 M41 2184, M41 2320 S CE
    418 321-9 M41 2199, M41 2321 A DB
    418 322-7 M41 2173, M41 2322 A DB
    418 323-5 M41 2113, M41 2323 W SM
    418 324-3 M41 2124, M41 2324 S CE
    418 325-0 M41 2111, M41 2325 A DB
    418 326-8 M41 2119, M41 2326 A DB
    418 327-6 M41 2116, M41 2327 W CE
    418 328-4 M41 2138, M41 2328 S CE
    418 329-2 M41 2212, M41 2329 W SV
    418 330-0 M41 2176, M41 2330 A CE
    418 331-8 M41 2214, M41 2331 W SV
    418 332-6 M41 2141, M41 2332 S DB
    418 333-4 M41 2169, M41 2333 S DB
    418 334-2 M41 2182, M41 2334 A DB
    418 335-9 M41 2186, M41 2335 W DB
