    HU: Electric Locomotive: 433

    Electric Loco

    V43 3000

    System 25 kV 50 Hz AC
    Length 15.70 m
    Width 3.106 m
    Height 4.54 m
    Introduced 1963-1982
    Wheel Arrangement B-B
    Builder Ganz-MÁVAG
    Power 2200 kW
    Weight 80 t
    TE 270 kN
    Max Speed 120 km/h
    Wheelbase 11400 mm
    Driving Wheel Dia 1180 mm

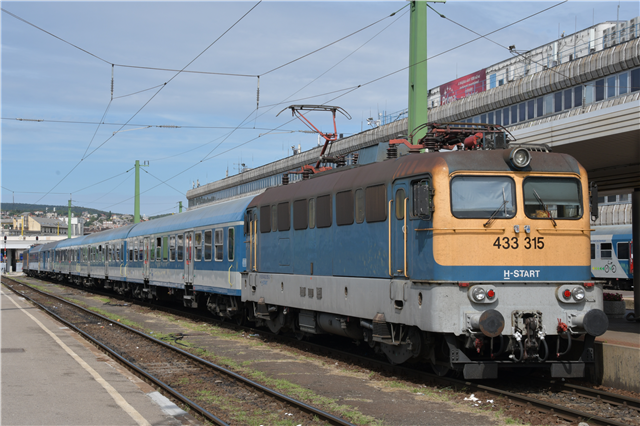

    433 315 - Budapest-Déli

    Photo: © John Mulrine

    Submit Photo

    Your photo will be submitted to the editors for approval.

    • You must ensure you have permission of the copyright owner to submit this photo for SpotLog
    • Please do not submit photo's taken from Wikipedia or another website unless you have explicit permisson to do so
    • Putting a date in the photo caption is often helpful
    • Upload must be in JPEG format
    Number Alt number Name Status Pool Depot Note
    433 159-5 V43 1159, V43 3159 A VD
    433 161-1 V43 1161, V43 3161 A VD
    433 170-2 V43 1170, V43 3170 A VD
    433 185-0 V43 1185, V43 3185 A VD
    433 187-6 V43 1187, V43 3187 A VD
    433 197-5 V43 1197, V43 3197 A VD
    433 201-5 V43 1201, V43 3201 A VD
    433 209-8 V43 1209, V43 3209 A VD
    433 210-6 V43 1210, V43 3210 A VD
    433 211-4 V43 1211, V43 3211 S VD
    433 216-3 V43 1216, V43 3216 A VD
    433 220-5 V43 1220, V43 3220 A VD
    433 222-1 V43 1222, V43 3222 A VD
    433 224-7 V43 1224, V43 3224 A VD
    433 227-0 V43 1227, V43 3227 A VD
    433 239-5 V43 1239, V43 3239 A VD
    433 242-9 V43 1242, V43 3242 A VD
    433 245-2 V43 1245, V43 3245 A VD
    433 268-4 V43 1268, V43 3268 A VD
    433 278-3 V43 1278, V43 3278 A VD
    433 280-9 V43 1280, V43 3280 A VD
    433 288-2 V43 1288, V43 3288 A VD
    433 305-4 V43 1305, V43 3305 A VD
    433 308-8 V43 1308, V43 3308 A VD
    433 312-0 V43 1312, V43 3312 A VD
    433 313-8 V43 1313, V43 3313 A VD
    433 315-3 V43 1315, V43 3315 A VD
    433 316-1 V43 1316, V43 3316 S VD
    433 333-6 V43 1333, V43 3333 A VD
    433 347-6 V43 1347, V43 3347 A VD
