    UKIN: Internal Combustion: Schoma

    Diesel Shunter

    Schöma Diesels

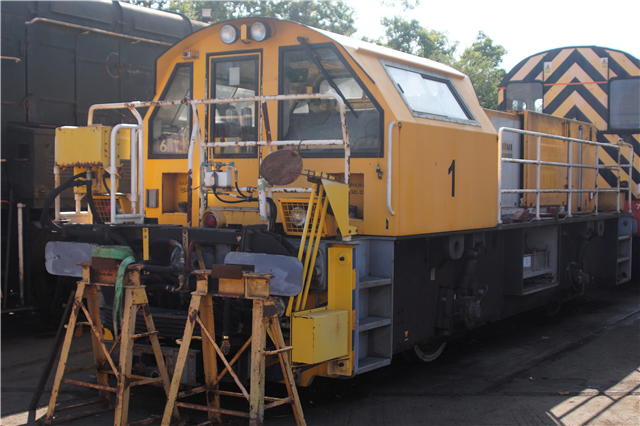

    In connection with the construction of the Jubilee Line Extension project, fourteen diesel-hydraulic locomotives were purchased from Schöma of Germany to assist in equipping the tunnels prior to electrification. Weighing 33.88 tonnes each, they are 28 feet (8.5 m) long, and are powered by 500-horsepower (370 kW) six-cylinder inline diesel engines, which give them a maximum speed of 31 mph (50 km/h). They entered service from February 1996, are built to tube tunnel loading gauge, and were fitted with buckeye couplers when built. They are equipped with exhaust scrubbers to prevent soot and other particles from being expelled into the tunnels. The locomotives have since been used on other engineering projects. When not in use they can be found at Lillie Bridge Depot or Ruislip depot. Following the completion of the Jubilee Line extension, ownership of the vehicles was transferred to London Underground Transplant. Numbers 1 and 5 have been modified by fitting Wedgelock couplers so that they can be used to shunt tube stock, whilst numbers 3 and 6 have been fitted with emergency couplers.

    Length Varies
    Width Varies
    Height Varies
    Number Altnumber Name Status Note Location Owner
    5403 1   L1   Britta Lotta A 4wDH TFL TFL
    5404 2   L2   B4607.02   Nikki A 4wBE TFL TFL TFL/Clayton Battery Locomotives
    5405 3   L3   Claire A 4wDH TFL TFL
    5406 4   L4   B4607.04   Pam A 4wBE TFL TFL TFL/Clayton Battery Locomotives
    5407 5   L5   B4607.05   Sophie A 4wBE TFL TFL TFL/Clayton Battery Locomotives
    5408 6   L6   B4607.06   Denise A 4wBE TFL TFL TFL/Clayton Battery Locomotives
    5409 7   L7   B4607.07   Annemarie A 4wBE TFL TFL TFL/Clayton Battery Locomotives
    5410 8   L8   B4607.08   Emma A 4wBE TFL TFL TFL/Clayton Battery Locomotives
    5411 9   L9   Debora A 4wDH TFL TFL
    5412 10   L10   B4607.10   Clementine A 4wBE TFL TFL TFL/Clayton Battery Locomotives
    5413 11   L11   B4607.11   Joan A 4wBE TFL TFL TFL/Clayton Battery Locomotives
    5414 12   L12   Melanie A 4wDH TFL TFL
    5415 13   L13   B4607.13   Michele A 4wBE TFL TFL TFL/Clayton Battery Locomotives
    5416 14   L14   B4607.14   Carol A 4wBE TFL TFL TFL/Clayton Battery Locomotives
    6724 PC2 A 4wDH TFL TFL
    6725 PC1 A 4wDH TFL TFL
    6844 6321   E 4wDH Unknown
