    UKIN: Steam: Markham

    Steam loco

    Locomotives built by Markham

    The foundry business was established by William Oliver and his father John Oliver in the 1850s. In 1862 following the death of the father, William Oliver became the sole owner and he moved the business to a greenfield site Broad Oaks Meadows, south east of Chesterfield town centre close by the main line of the Midland Railway. Only 1 standard gauge locomotive survives.

    Introduced 1894
    Withdrawn 1965
    Wheel Arrangement 0-4-0 ST
    Builder Markham
    Weight 20t 10cwt
    TE 8,893lbf
    Driving Wheel Dia 3ft 6ins
    Boiler Pressure 130psi
    Num Cylinders 2, Outside
    Cylinder Dimensions 13in x 20in

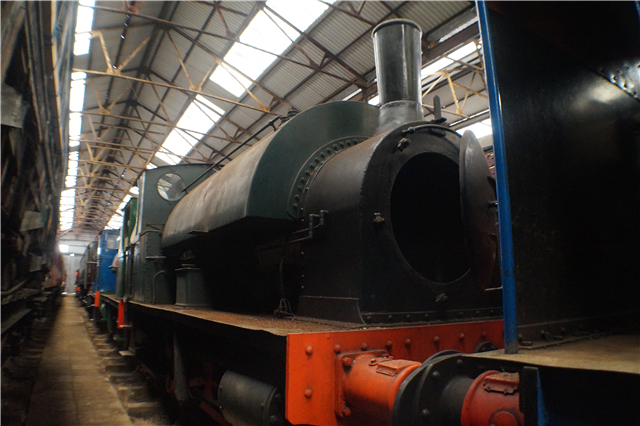

    No 109 Gladys at Midland Railway Centre

    Photo: Dan Cardwell

    Number Name Status Note Depot Base Owner
    109 Gladys D 0-4-0ST PR Midland Railway - Butterley PRE
