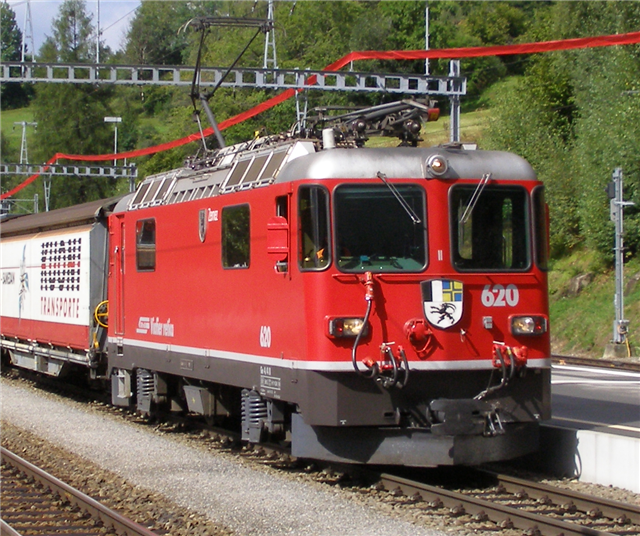

    RhB: Main System: Ge 4/4 II

    Electric Loco

    Second generation of RhB Bo-Bo electrics, used throughout AC network on all services including freight and Glacier Express.

    Some loco's fitted with dual braking to work with the Albulgliederzug sets.

    Gauge 1000mm
    Builder SLM/BBC
    Max Speed 90 km/h
    System 11kv ac
    Introduced 1973
    Length 12.96m
    Weight 50t
    Power 1648kW
    TE 179kN
    Wheel Arrangement Bo-Bo
    Brakes Originally air braked, some loco's fitted with dual air and vacuum braking
    Submit Photo

    Your photo will be submitted to the editors for approval.

    • You must ensure you have permission of the copyright owner to submit this photo for SpotLog
    • Please do not submit photo's taken from Wikipedia or another website unless you have explicit permisson to do so
    • Putting a date in the photo caption is often helpful
    • Upload must be in JPEG format
    Number Name Status Note Livery Scrapped
    611 Landquart Dual braking Original Green
    612 Thusis Dual braking Burkhalter Group (Yellow)
    613 Domat/Ems Rot
    614 Schiers Dual braking Rot - ND
    615 Klosters Dual braking Kohle
    616 Filisur X Siemens
    617 Ilanz 50 Jahre LGB
    618 Bergün/Bravuogn Edelweiss Air
    619 [Samedan] X Sudostschweiz 06/03/24
    620 [Zernez] Dual braking 100 Jahre Bever - Scuol
    621 Felsberg Dual braking Traveco
    622 Arosa Dual braking Hakone Tozan Railway
    623 [Bonaduz] Dual braking 125 Jahre RhB
    624 Celerina/Schlarigna Dual braking Facebook
    625 Küblis Dual braking Rot
    626 Malans Dual braking Pullman Express
    627 Reichenau-Tamins Dual braking 100 Jahre Chur - Arosa
    628 S-chanf X Withdrawn and scrapped following accident damage Rot
    629 Tiefencastel Dual braking
    630 [Trun] Dual braking Ihre Werbung
    631 Untervaz Dual braking Südostschweiz
    632 Zizers Rot - ND
    633 Zuoz RTR
