    RhB: Main System: ABe 4/16

    Electric Unit

    Capricorn

    These units operate over the whole RhB network except for the Arosa and Bernina lines.

    Most passenger trains between Landquart and Klosters / Davos / Scuol-Tarasp / St Moritz are worked by these units, usually in pairs.  They also work some of the Chur area local services.

    In October 2022, 25 units of these units were coupled together and run from the Albula tunnel down to Filisur to claim the world record for longest passenger train.



    Gauge 1000 mm
    System 11 kV 16.7 hertz
    Length 76400 mm
    Width 2670 mm
    Height 3780 mm
    Introduced 2019
    Wheel Arrangement Bo`Bo`+ 2`2`+ 2`2`+ 2`2`
    Builder Stadler
    Weight 140 t
    Max Speed 120 km/h

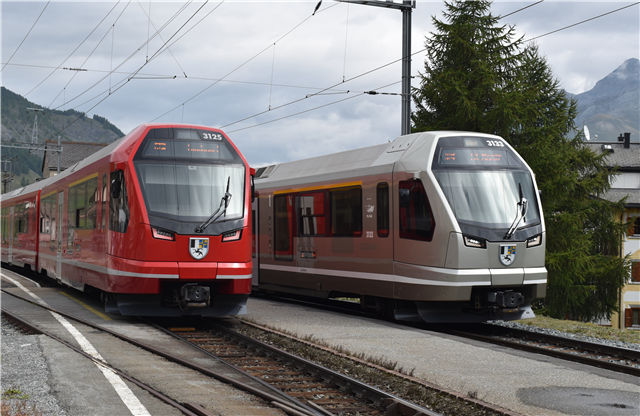

    Zuoz, 2023

    Photo: MRG

    Number Name Status Note Livery In Service
    3111 Piz Ela RhB Red
    3112 Schesaplana RhB Red
    3113 Calenda 3113 set a new speed record for a meter-gauge railway at 163.02 km/h when traveling through the Vereina Tunnel on 8/9 August 2022 RhB Red
    3114 Vilan RhB Red
    3115 RhB Red
    3116 RhB Red
    3117 RhB Red
    3118 RhB Red
    3119 Rheinwaldhorn RhB Red
    3120 RhB Red
    3121 Piz Terri RhB Red
    3122 Piz Tambo RhB Red
    3123 Piz Sesvenna RhB Red
    3124 RhB Red
    3125 RhB Red
    3126 RhB Red
    3127 RhB Red
    3128 Piz D'Esan RhB Red
    3129 Sassalbo RhB Red
    3130 RhB Red
    3131 Piz Badile RhB Red
    3132 Piz Daint RhB Red
    3133 Piz Palü Champagne
    3134 RhB Red
    3135 RhB Red
    3136 RhB Red
    3137 RhB Red
    3138 RhB Red
    3139 RhB Red
    3140 RhB Red
    3141 RhB Red
    3142 RhB Red
    3143 RhB Red
    3144 RhB Red
    3145 RhB Red
    3146 RhB Red
    3147 RhB Red
    3148 RhB Red
    3149 RhB Red 23.02.2023
    3150 RhB Red 24.03.2023
    3151 RhB Red 13.04.2023
    3152 RhB Red 04.05.2023
    3153 01.06.2023
    3154 22.06.2023
    3155 Wiesshorn 23.07.2023
    3156
    3157 07/09/23
    3158 29.09.23
    3159 20.10.23
    3160 09/11/23
    3161 08/12/23
    3162 18/01/24
    3163 15/02/24
    3164 14/03/24
    3165 25/04/24
    3166 06/06/24
