    SE: Electric Multiple Unit: X40-3

    Electric Unit

    Formation X40Z1-X40Z3-X40Z5
    System 15 kV 16.7 Hz AC
    Length 81.50 m
    Width 2.96 m
    Introduced 2005-2006
    Wheel Arrangement Bo-2+2-Bo+2-Bo
    Builder Alstom
    Power 2550 kW
    Weight 216 t
    TE 160 kN
    Max Speed 200 km/h
    Driving Wheel Dia 920 mm

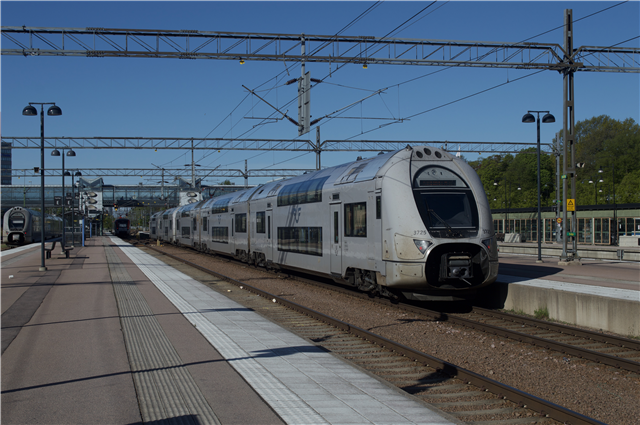

    5-coach X40 double deck set used by SJ on longer distance regional services with reserved seating. Seen at Västerås Centralstation on 16 May 2022 on train 787, 07:37 Arboga to Stockholm Centralstation. Closest to the camera is 3-car set 3325 attached to the 2-car set X40 3308 from Arboga behind.

    Photo: Phil Richards

    Submit Photo

    Your photo will be submitted to the editors for approval.

    • You must ensure you have permission of the copyright owner to submit this photo for SpotLog
    • Please do not submit photo's taken from Wikipedia or another website unless you have explicit permisson to do so
    • Putting a date in the photo caption is often helpful
    • Upload must be in JPEG format
    Number Alt number Name Status Pool Depot Note
    3311 3501, 3711 A
    3312 3502, 3712 A
    3313 3503, 3713 A
    3314 3504, 3714 A
    3315 3505, 3715 A
    3316 3506, 3716 A
    3317 3507, 3717 A
    3318 3508, 3718 A
    3319 3509, 3719 A
    3320 3510, 3720 A
    3321 3511, 3721 A
    3322 3512, 3722 A
    3323 3513, 3723 A
    3324 3514, 3724 A
    3325 3515, 3725 A
    3326 3516, 3726 A
    3327 3517, 3727 A
    3328 3518, 3728 A
    3329 3519, 3729 A
    3330 3520, 3730 A
    3331 3521, 3731 A
    3332 3522, 3732 A
    3333 3523, 3733 A
    3334 3524, 3734 A
    3335 3525, 3735 A
    3336 3526, 3736 A
    3337 3527, 3737 A
