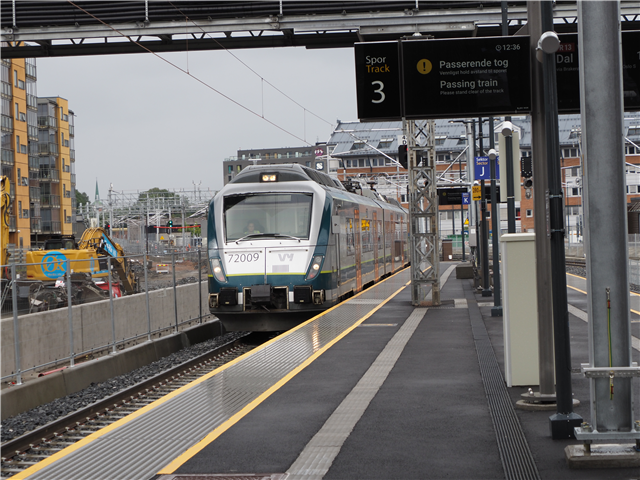

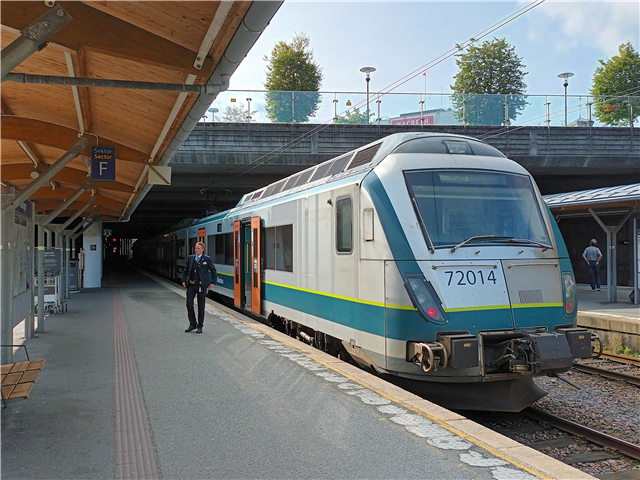

NO: Electric Multiple Unit: BM 72
Electric Unit
Formation | BMa-BP-BC-BMb |
System | 15 kV 16.7 Hz AC |
Length | 85.57 m |
Width | 3.10 m |
Height | 4.25 m |
Introduced | 2002-2006 |
Wheel Arrangement | Bo-2-2-2-Bo |
Builder | AnsaldoBreda |
Power | 2552 kW |
Weight | 164 t |
Max Speed | 160 km/h |
Driving Wheel Dia | 920 mm |
Number | Altnumber | Status | Formation | EVN | Pool | Owner | |
---|---|---|---|---|---|---|---|
72001 | 472 001‑3 | H | 72001, 72701, 72801, 72101 | 94 76 0472 001-3 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72002 | 472 002‑1 | H | 72002, 72702, 72802, 72102 | 94 76 0472 002-1 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72003 | 472 003‑9 | H | 72003, 72703, 72803, 72103 | 94 76 0472 003-9 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72004 | 472 004‑7 | H | 72004, 72704, 72804, 72104 | 94 76 0472 004-7 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72005 | 472 005‑4 | H | 72005, 72705, 72805, 72105 | 94 76 0472 005-4 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72006 | 472 006‑2 | H | 72006, 72706, 72806, 72106 | 94 76 0472 006-2 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72007 | 472 007‑0 | H | 72007, 72707, 72807, 72107 | 94 76 0472 007-0 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72008 | 472 008‑8 | H | 72008, 72708, 72808, 72108 | 94 76 0472 008-8 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72009 | 472 009‑6 | H | 72009, 72709, 72809, 72109 | 94 76 0472 009-6 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72010 | 472 010‑4 | H | 72010, 72710, 72810, 72110 | 94 76 0472 010-4 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72011 | 472 011‑2 | H | 72011, 72711, 72811, 72111 | 94 76 0472 011-2 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72012 | 472 012‑0 | H | 72012, 72712, 72812, 72112 | 94 76 0472 012-0 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72013 | 472 013‑8 | H | 72013, 72713, 72813, 72113 | 94 76 0472 013-8 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72014 | 472 014‑6 | H | 72014, 72714, 72814, 72114 | 94 76 0472 014-6 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72015 | 472 015‑3 | H | 72015, 72715, 72815, 72115 | 94 76 0472 015-3 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72016 | 472 016‑1 | H | 72016, 72716, 72816, 72116 | 94 76 0472 016-1 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72017 | 472 017‑9 | H | 72017, 72717, 72817, 72117 | 94 76 0472 017-9 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72018 | 472 018‑7 | H | 72018, 72718, 72818, 72118 | 94 76 0472 018-7 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72019 | 472 019‑5 | H | 72019, 72719, 72819, 72119 | 94 76 0472 019-5 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72020 | 472 020‑3 | H | 72020, 72720, 72820, 72120 | 94 76 0472 020-3 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72021 | 472 021‑1 | H | 72021, 72721, 72821, 72121 | 94 76 0472 021-1 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72022 | 472 022‑9 | H | 72022, 72722, 72822, 72122 | 94 76 0472 022-9 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72023 | 472 023‑7 | H | 72023, 72723, 72823, 72123 | 94 76 0472 023-7 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72024 | 472 024‑5 | H | 72024, 72724, 72824, 72124 | 94 76 0472 024-5 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72025 | 472 025‑2 | H | 72025, 72725, 72825, 72125 | 94 76 0472 025-2 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72026 | 472 026‑0 | H | 72026, 72726, 72826, 72126 | 94 76 0472 026-0 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72027 | 472 027‑8 | H | 72027, 72727, 72827, 72127 | 94 76 0472 027-8 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72028 | 472 028‑6 | H | 72028, 72728, 72828, 72128 | 94 76 0472 028-6 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72029 | 472 029‑4 | H | 72029, 72729, 72829, 72129 | 94 76 0472 029-4 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72030 | 472 030‑2 | H | 72030, 72730, 72830, 72130 | 94 76 0472 030-2 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72031 | 472 031‑0 | H | 72031, 72731, 72831, 72131 | 94 76 0472 031-0 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72032 | 472 032‑8 | H | 72032, 72732, 72832, 72132 | 94 76 0472 032-8 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72033 | 472 033‑6 | H | 72033, 72733, 72833, 72133 | 94 76 0472 033-6 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72034 | 472 034‑4 | H | 72034, 72734, 72834, 72134 | 94 76 0472 034-4 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72035 | 472 035‑1 | H | 72035, 72735, 72835, 72135 | 94 76 0472 035-1 | Go-Ahead Nordic [N-GAND] | N-NOR | |
72036 | 472 036‑9 | H | 72036, 72736, 72836, 72136 | 94 76 0472 036-9 | Go-Ahead Nordic [N-GAND] | N-NOR |
