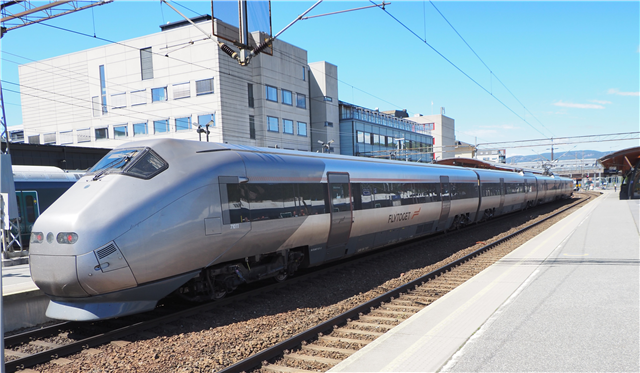

NO: Electric Multiple Unit: BM 71
Electric Unit
System | 15 kV 16.7 Hz AC |
Length | 106.60 m |
Wheel Arrangement | Bo-2+2-2+Bo-2+Bo-2 |
Builder | Strømmens Værksted, Adtranz |
Formation | BM-BMU-BMX-BFM |
Width | 3.048 m |
Height | 4.465 m |
Introduced | 1997-1998 |
Power | 3528 kW |
Weight | 210 t |
TE | 156 kN |
Max Speed | 210 km/h |
Number | Altnumber | Status | Formation | EVN | Owner | |
---|---|---|---|---|---|---|
71001 | 471 001‑4 | A | 71001, 71201, 71301, 71101 | 94 76 0471 001-4 | N-GMB | |
71002 | 471 002‑2 | A | 71002, 71202, 71302, 71102 | 94 76 0471 002-2 | N-GMB | |
71003 | 471 003‑0 | A | 71003, 71203, 71303, 71103 | 94 76 0471 003-0 | N-GMB | |
71004 | 471 004‑8 | A | 71004, 71204, 71304, 71104 | 94 76 0471 004-8 | N-GMB | |
71005 | 471 005‑5 | A | 71005, 71205, 71305, 71105 | 94 76 0471 005-5 | N-GMB | |
71006 | 471 006‑3 | A | 71006, 71206, 71306, 71106 | 94 76 0471 006-3 | N-GMB | |
71007 | 471 007‑1 | A | 71007, 71207, 71307, 71107 | 94 76 0471 007-1 | N-GMB | |
71008 | 471 008‑9 | A | 71008, 71208, 71308, 71108 | 94 76 0471 008-9 | N-GMB | |
71009 | 471 009‑7 | A | 71009, 71209, 71309, 71109 | 94 76 0471 009-7 | N-GMB | |
71010 | 471 010‑5 | A | 71010, 71210, 71310, 71110 | 94 76 0471 010-5 | N-GMB | |
71011 | 471 011‑3 | A | 71011, 71211, 71311, 71111 | 94 76 0471 011-3 | N-GMB | |
71012 | 471 012‑1 | A | 71012, 71212, 71312, 71112 | 94 76 0471 012-1 | N-GMB | |
71013 | 471 013‑9 | A | 71013, 71213, 71313, 71113 | 94 76 0471 013-9 | N-GMB | |
71014 | 471 014‑7 | A | 71014, 71214, 71314, 71114 | 94 76 0471 014-7 | N-GMB | |
71015 | 471 015‑4 | A | 71015, 71215, 71315, 71115 | 94 76 0471 015-4 | N-GMB | |
71016 | 471 016‑2 | W | 71016, 71216, 71316, 71116 | 94 76 0471 016-2 | N-GMB |
