    HR: Diesel Multiple Unit: 7122 0

    Diesel Unit

    Length 24.40 m
    Width 2.778 m
    Height 3.70 m
    Introduced 1979-1981
    Wheel Arrangement 1A-A1
    Builder FIAT Ferroviaria, Kalmar Verkstad (KVAB)
    Power 2 x 147 kW
    Weight 44 t
    Engine 2 x IVECO 8217.12
    Transmission Hydraulic
    Max Speed 130 km/h
    Driving Wheel Dia 920 mm
    Wheelbase 15320 mm

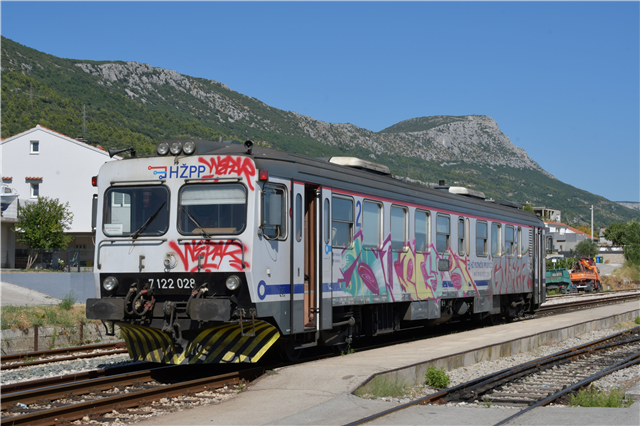

    7122 028 - Kaštel Stari

    Photo: © John Mulrine

    Submit Photo

    Your photo will be submitted to the editors for approval.

    • You must ensure you have permission of the copyright owner to submit this photo for SpotLog
    • Please do not submit photo's taken from Wikipedia or another website unless you have explicit permisson to do so
    • Putting a date in the photo caption is often helpful
    • Upload must be in JPEG format
    Number Alt number Name Status Pool Depot Note
    7122 001 Y1 1291 A RJ
    7122 002 Y1 1357 S VZ
    7122 003 Y1 1323 S VZ
    7122 004 Y1 1347 A RJ
    7122 005 Y1 1351 A VK
    7122 006 Y1 1309 A VZ
    7122 007 Y1 1349 A SP
    7122 008 Y1 1301 S VK
    7122 010 Y1 1364 S SP
    7122 011 Y1 1302 A SP
    7122 012 Y1 1362 A VZ
    7122 013 Y1 1338 S VZ
    7122 014 Y1 1361 A VZ
    7122 015 Y1 1365 A SP
    7122 016 Y1 1293 A SP
    7122 017 Y1 1298 A VZ
    7122 018 Y1 1307 A VZ
    7122 019 Y1 1286 A VZ
    7122 020 Y1 1305 A VZ
    7122 021 Y1 1324 A VZ
    7122 022 Y1 1355 A VK
    7122 023 YF1 1330 A RJ
    7122 024 Y1 1267 A VZ
    7122 025 YF1 1335 A VK
    7122 026 YF1 1329 S VZ
    7122 027 YF1 1327 S VZ
    7122 028 Y1 1294 A SP
    7122 029 Y1 1341 S VZ
    7122 030 Y1 1360 A VK
    7122 031 Y1 1303 A VZ
    7122 032 Y1 1316 S VK
    7122 033 Y1 1322 A RJ
    7122 034 Y1 1277 A VZ
    7122 035 Y1 1318 S VK
