    ZLB: Steam Locomotive: Uv

    NG Steam Loco

    Uv compound steam loco (ÖBB class 298.2)

    Gauge 760 mm
    Builder Krauss & Co. Linz
    Max Speed 35 km/h
    Introduced 1902
    Power 161 kW
    Driving Wheel Dia 820 mm
    Wheel Arrangement 0-6-2T
    Boiler Pressure 174 psi
    Cylinder Dimensions 350/500 x 400mm
    Length 7.804 m
    Width 2.40 m
    Height 3.45 m
    Weight 27.5 t

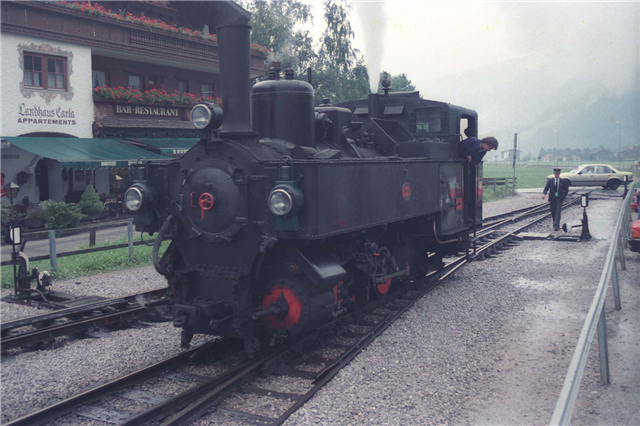

    Photo: Gary Thornton

    Submit Photo

    Your photo will be submitted to the editors for approval.

    • You must ensure you have permission of the copyright owner to submit this photo for SpotLog
    • Please do not submit photo's taken from Wikipedia or another website unless you have explicit permisson to do so
    • Putting a date in the photo caption is often helpful
    • Upload must be in JPEG format
    Number Name Status
    3 Tirol
