    APB: Stern & Hafferl - Linzer Lokalbahn (LILO): ET22 151

    Electric Unit

    GTW 2/6

    System 750 V DC, 15 kV 16.7 Hz AC
    Length 38.20 m
    Introduced 2000 (151-158), 2005 (159-164)
    Wheel Arrangement 2-Bo-2
    Builder Stadler Rail
    Power 520 kW
    Weight 60 t
    Max Speed 80 km/h (DC), 120 km/h (AC)
    Width 3.00 m
    TE 70 kN
    Driving Wheel Dia 860 mm

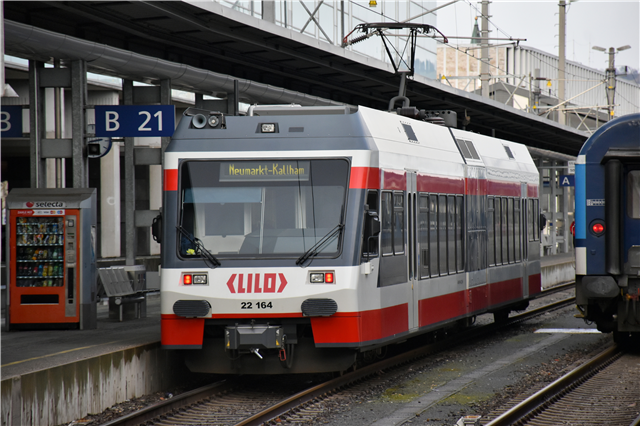

    22164 at Linz

    Photo: Andrew Thomas

    Number Status EVN Owner
    22 151 94 81 4822 151-8 A-STH
    22 152 94 81 4822 152-6 A-STH
    22 153 94 81 4822 153-4 A-STH
    22 154 94 81 4822 154-2 A-STH
    22 155 94 81 4822 155-9 A-STH
    22 156 94 81 4822 156-7 A-STH
    22 157 94 81 4822 157-5 A-STH
    22 158 94 81 4822 158-3 A-STH
    22 159 94 81 4822 159-1 A-STH
    22 160 94 81 4822 160-9 A-STH
    22 161 94 81 4822 161-7 A-STH
    22 162 94 81 4822 162-5 A-STH
    22 163 94 81 4822 163-3 A-STH
    22 164 94 81 4822 164-1 A-STH
